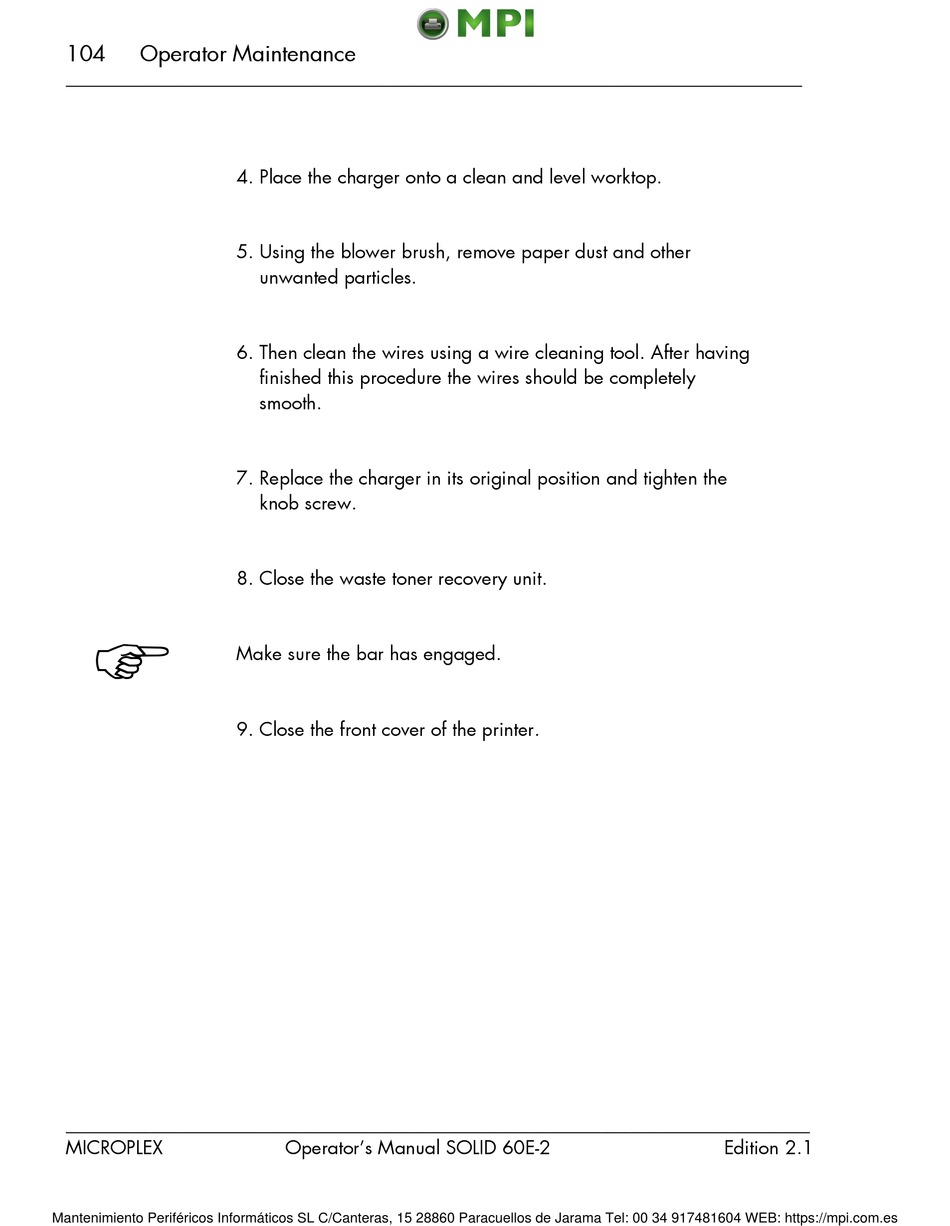

104
Operator Maintenance
_______________________________________________________________________________________________
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
4. Place the charger onto a clean and level worktop.
5. Using the blower brush, remove paper dust and other
unwanted particles.
6. Then clean the wires using a wire cleaning tool. After having
finished this procedure the wires should be completely
smooth.
7. Replace the charger in its original position and tighten the
knob screw.
8. Close the waste toner recovery unit.
Make sure the bar has engaged.
9. Close the front cover of the printer.
Operator's Manual SOLID 60E-2
Edition 2.1
