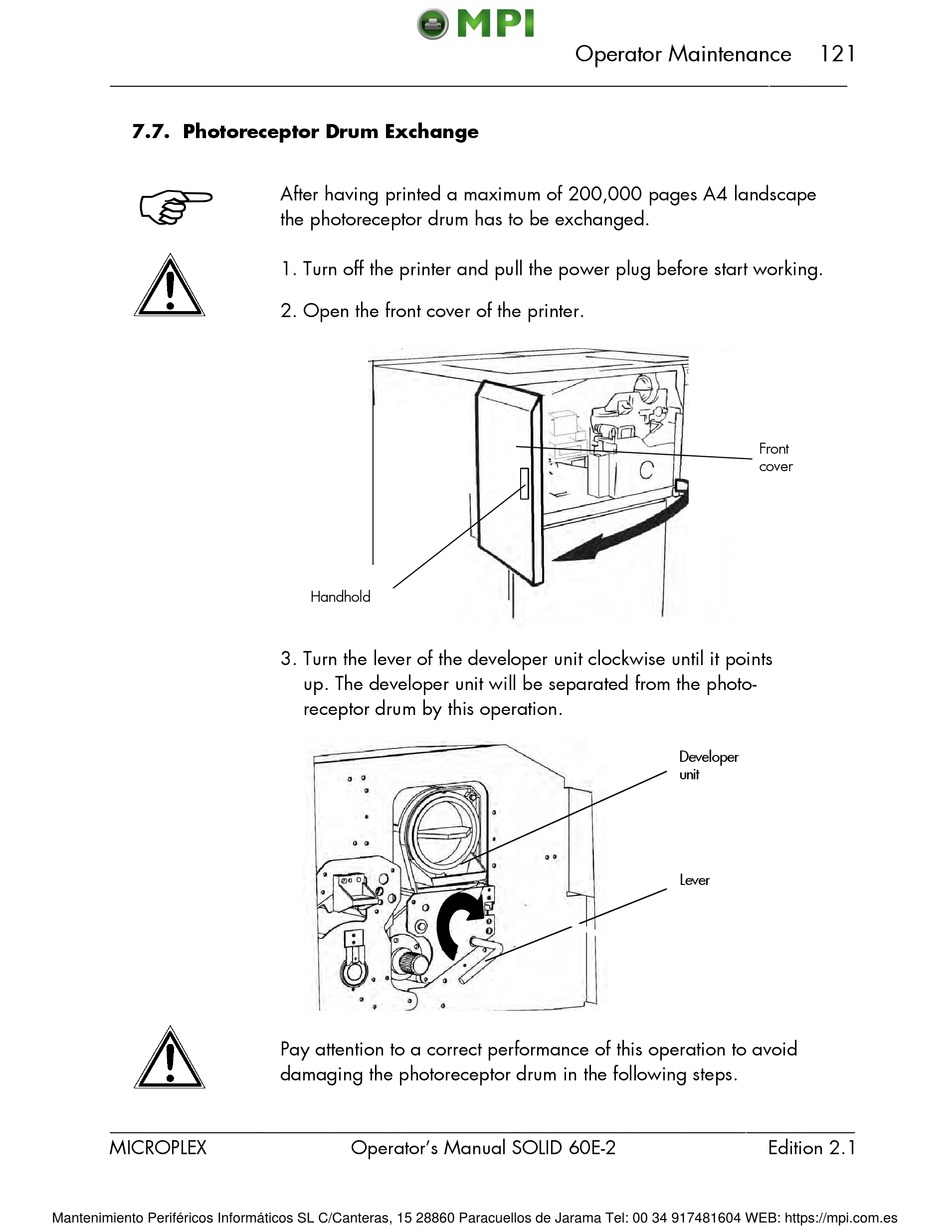

7.7. Photoreceptor Drum Exchange


________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
After having printed a maximum of 200,000 pages A4 landscape
the photoreceptor drum has to be exchanged.
1. Turn off the printer and pull the power plug before start working.
2. Open the front cover of the printer.
Handhold
3. Turn the lever of the developer unit clockwise until it points
up. The developer unit will be separated from the photo-
receptor drum by this operation.
Pay attention to a correct performance of this operation to avoid
damaging the photoreceptor drum in the following steps.
Operator's Manual SOLID 60E-2
Operator Maintenance
Developer
unit
Lever
121
Front
cover
Edition 2.1
