52 Panel Functions
_______________________________________________________________________________________________

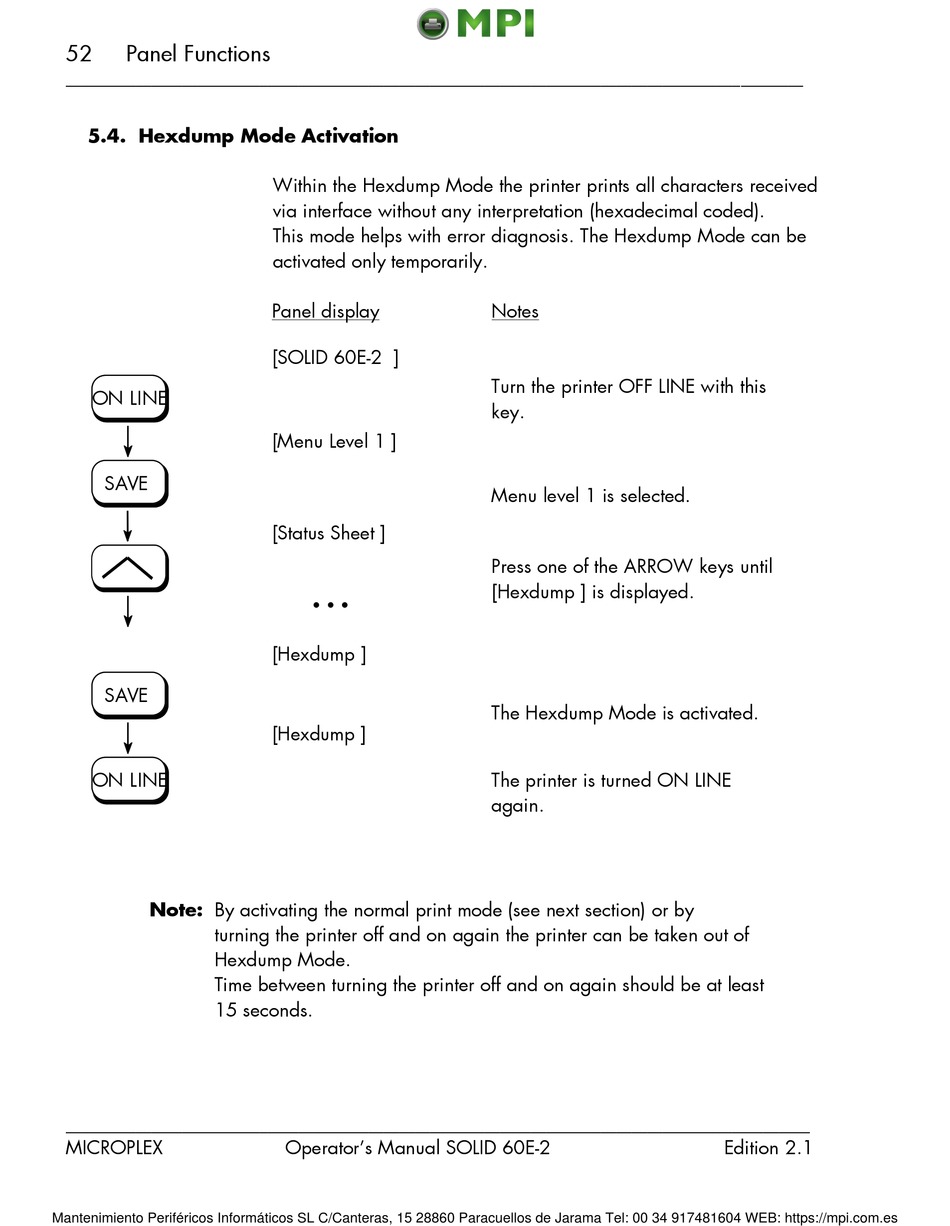

5.4. Hexdump Mode Activation

ON LINE
SAVE
SAVE
ON LINE
Note: By activating the normal print mode (see next section) or by
turning the printer off and on again the printer can be taken out of
Hexdump Mode.
Time between turning the printer off and on again should be at least
15 seconds.
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
Within the Hexdump Mode the printer prints all characters received
via interface without any interpretation (hexadecimal coded).
This mode helps with error diagnosis. The Hexdump Mode can be
activated only temporarily.
Panel display
[SOLID 60E-2 ]
[Menu Level 1 ]
[Status Sheet ]
  
[Hexdump ]
[Hexdump ]
Operator's Manual SOLID 60E-2
Notes
Turn the printer OFF LINE with this
key.
Menu level 1 is selected.
Press one of the ARROW keys until
[Hexdump ] is displayed.
The Hexdump Mode is activated.
The printer is turned ON LINE
again.
Edition 2.1
