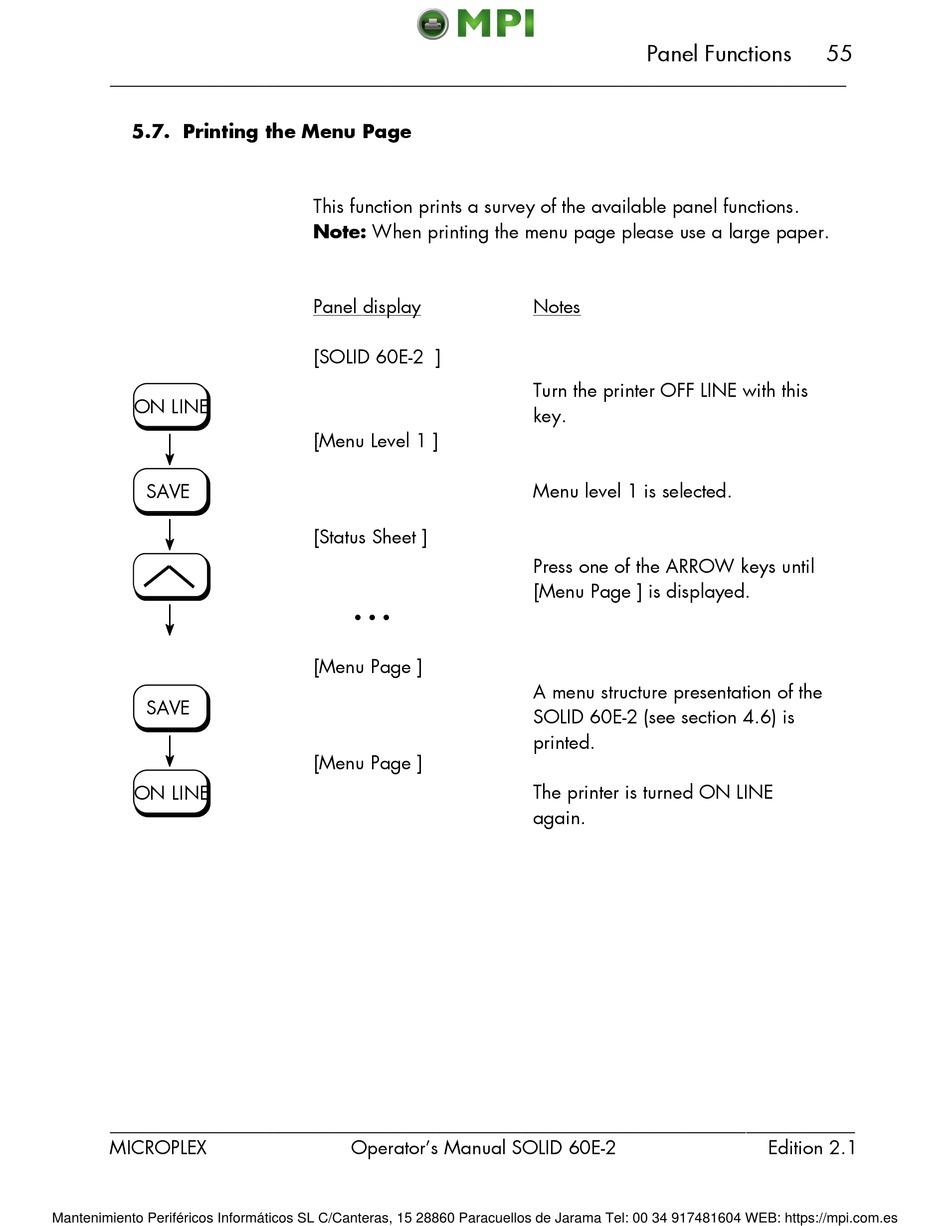

5.7. Printing the Menu Page
ON LINE
SAVE
SAVE
ON LINE
________________________________________________________________________________________________
MICROPLEX
Mantenimiento Periféricos Informáticos SL C/Canteras, 15 28860 Paracuellos de Jarama Tel: 00 34 917481604 WEB: https://mpi.com.es
This function prints a survey of the available panel functions.
Note: When printing the menu page please use a large paper.
Panel display
[SOLID 60E-2 ]
[Menu Level 1 ]
[Status Sheet ]
[Menu Page ]
[Menu Page ]
Operator's Manual SOLID 60E-2
Panel Functions
Notes
Turn the printer OFF LINE with this
key.
Menu level 1 is selected.
Press one of the ARROW keys until
[Menu Page ] is displayed.
A menu structure presentation of the
SOLID 60E-2 (see section 4.6) is
printed.
The printer is turned ON LINE
again.
55
Edition 2.1
