Configuration

This allows you to find out what module is in which slot. Only those
slots which are occupied are reported. A backplane without a service
attached is not reported.

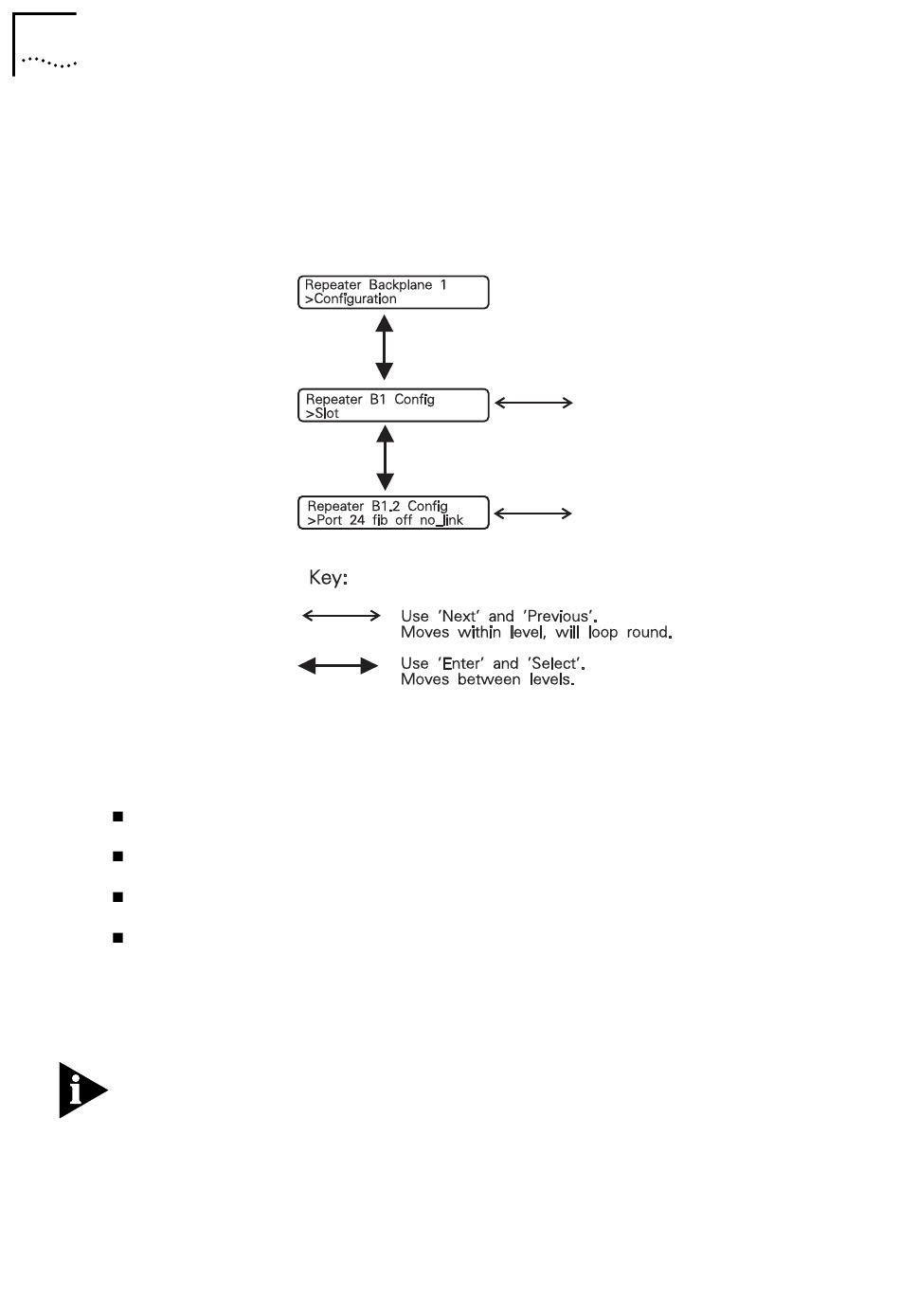

Figure 7-2 Repeater Configuration Panel Menu
The bottom level window displays:
the port number.
its type (media).
its current status (disabled equals 'off').
its link status ('link' or 'no_link').
Move to the slot whose contents you want to know with 'Next' or
'Previous' . Use 'Enter' to find out the device fitted.
For backplane bus 1, the shorthand is 'B1' . the slot number is added thus
'.1' to give 'B1.1' .
For an isolated repeater in slot 1, '1' is displayed.
DUA1850-0AAA05
