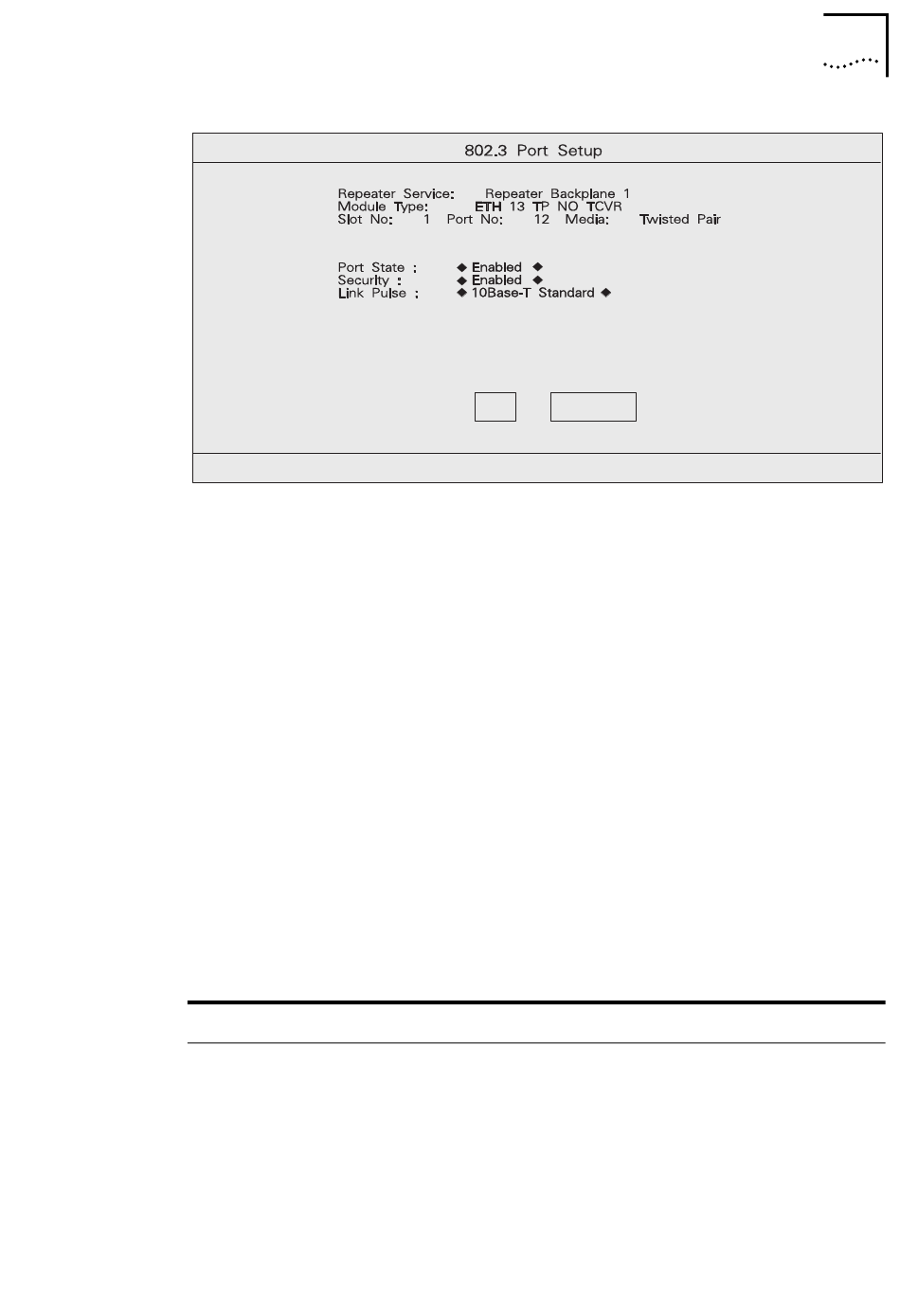

Figure 8-8 802.3 Port Setup Menu
Repeater Service - This field shows the service you have selected
from the Service Selection Menu.
Module Type - R This field identifies the type of module you are
managing.
Slot Number - This is the number of the MSH slot occupied by the
module.
Port Number - This field shows the port number you selected to set
up.
Media - This field indicates the media type of the port. Use the table
below to determine the media type.
Table 8-3 Media Type Designations
Designation
Unknown
Male AUI
Female AUI
Thin Coax
Unshielded
Twisted Pair
DUA1850-0AAA05
OK CANCEL
Media Type
The true state has not been determined. You may
see this while the device is initializing.
Transceiver-like connection
Standard AUI connection with no internal transceiver
Standard BNC Thin Ethernet connection.
10Base-T unshielded connection.
