backplane that has a LinkSwitch connected to it, the LED above the slot
containing the LinkSwitch will flash PINK/OFF.
Access Level
For the display panel, no access level is defined. The information
available is equivalent to access level 1, Monitor.
A full description of access levels and how to implement them is given
in "Access Levels"

Using the Display Panel

Introduction

There are four pressure-sensitive keypads of the MSH Display Panel
which enable you to move through a menu to find and display the
information you require. You cannot change any setting from the
display panel.

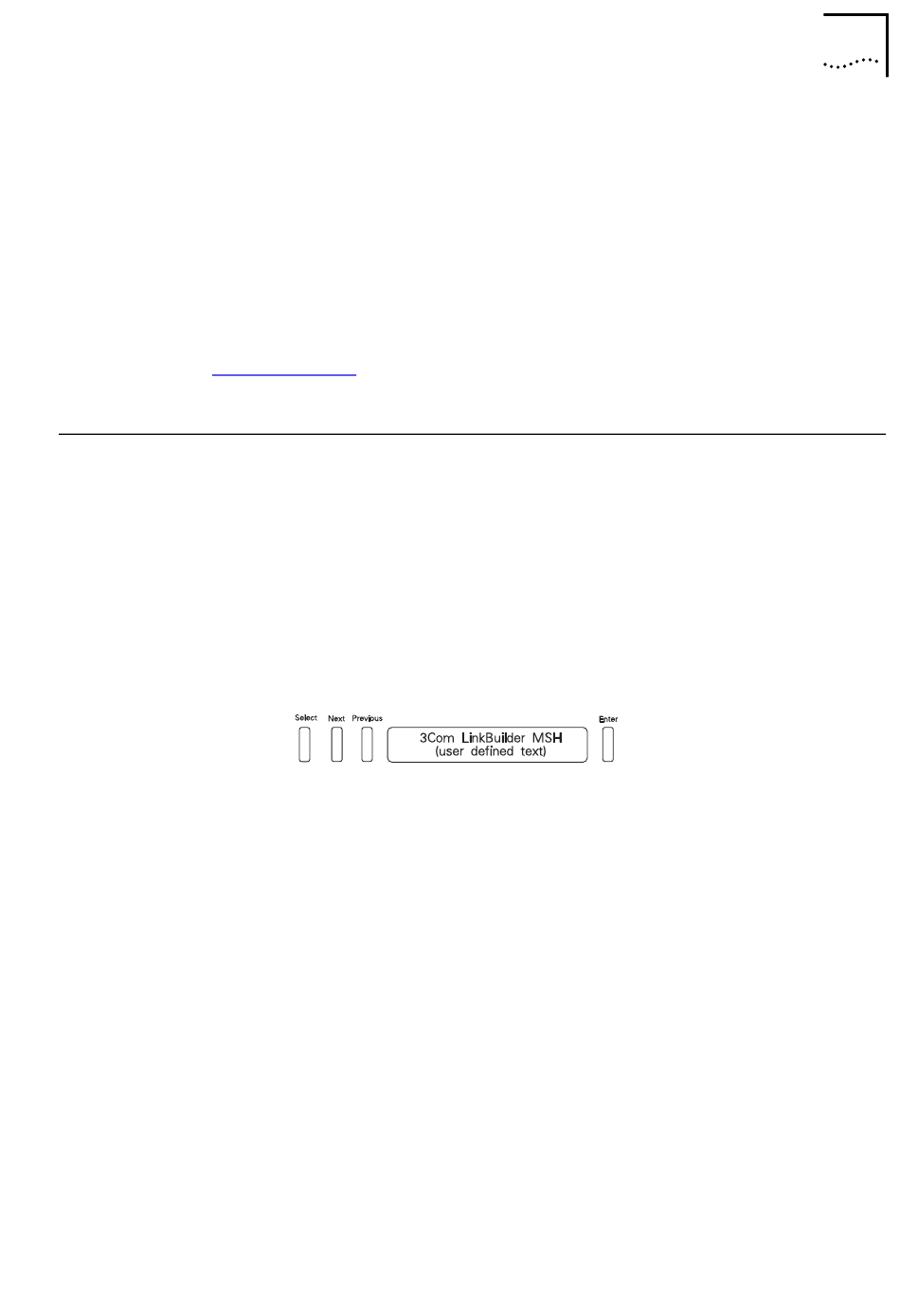

Figure 4-1 Display Panel
The initial display gives the product name. If you use Transcend
Network Manager or another SNMP management application, you
may enter text on the second line to describe the particular unit. This
gives you the option to differentiate between each MSH chassis on
your network.
To start, you press 'Select' to go to the first level. Thereafter press 'Enter'
to proceed down to the next level in the menu. Every time you press
'Enter' you drop down one level until you reach the bottom level.
DUA1850-0AAA05
on page 2-8.
Using the Display Panel 4-3
