'Status In' Connector

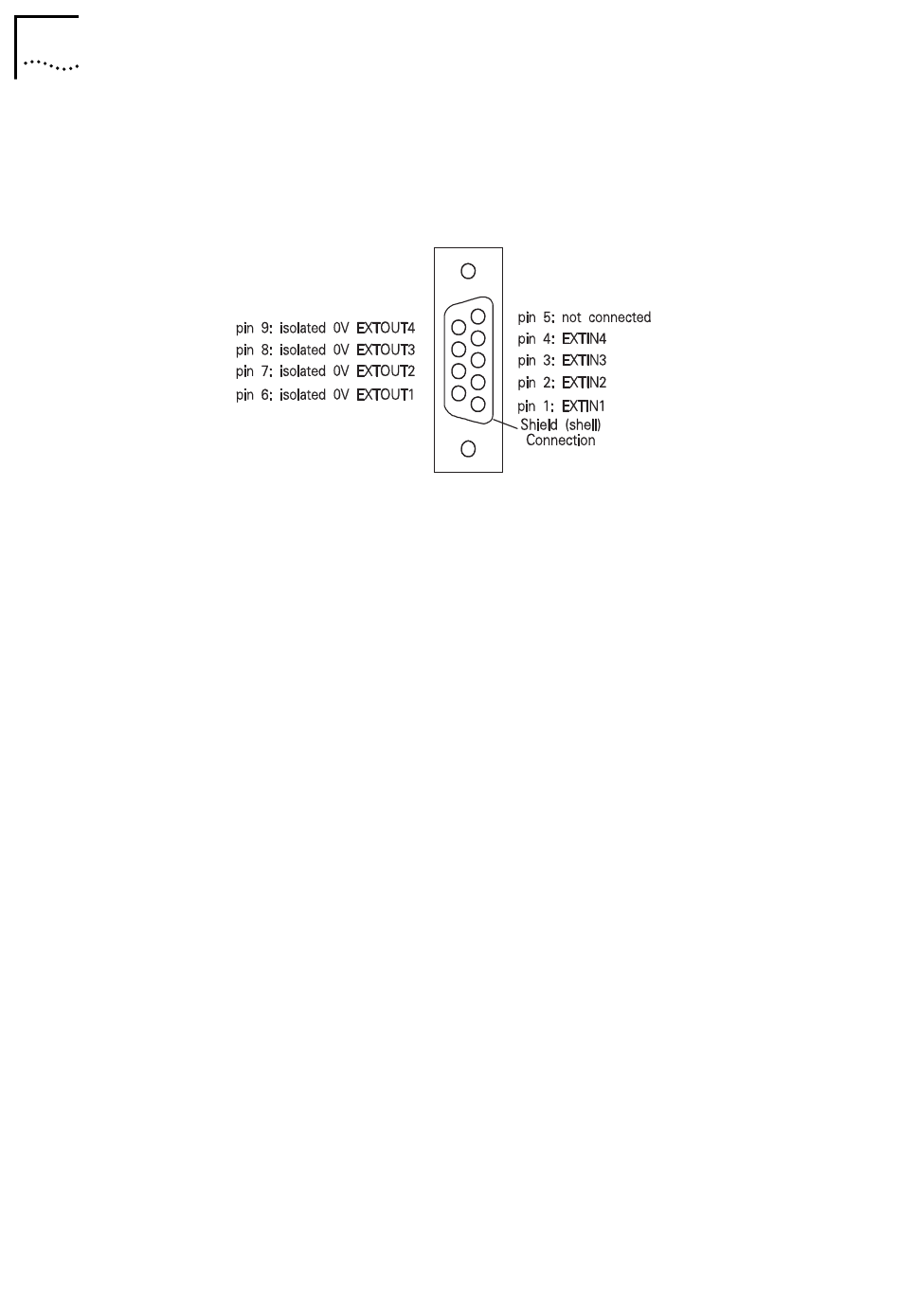

The pin designations of the connector are given below.
Figure A-4 Status In Socket
The EXTOUTx pins are connected to the same isolated 0V connection
on the Management Module. You do not have to use all four.
DUA1850-0AAA05
