Buttons - The four buttons across the bottom of the screen allow you
to move to their respective screens. The table below details the
buttons, the screen and the section where you will find the
description.
Table 8-1 Where The Buttons Lead
Button
REPEATER STATS
MODULE STATS
MODULE
OK

Repeater Statistics

The Repeater Statistics screen is illustrated below. All the fields are read
only. The statistics collected are determined by the IEEE 802.3 Repeater
Management standard and by 3Com enhancements to that standard.
The screen is updated every 3 seconds.
The figures against the parameters can be cleared to zero using the
CLEAR COUNTERS button at the foot of the screen.

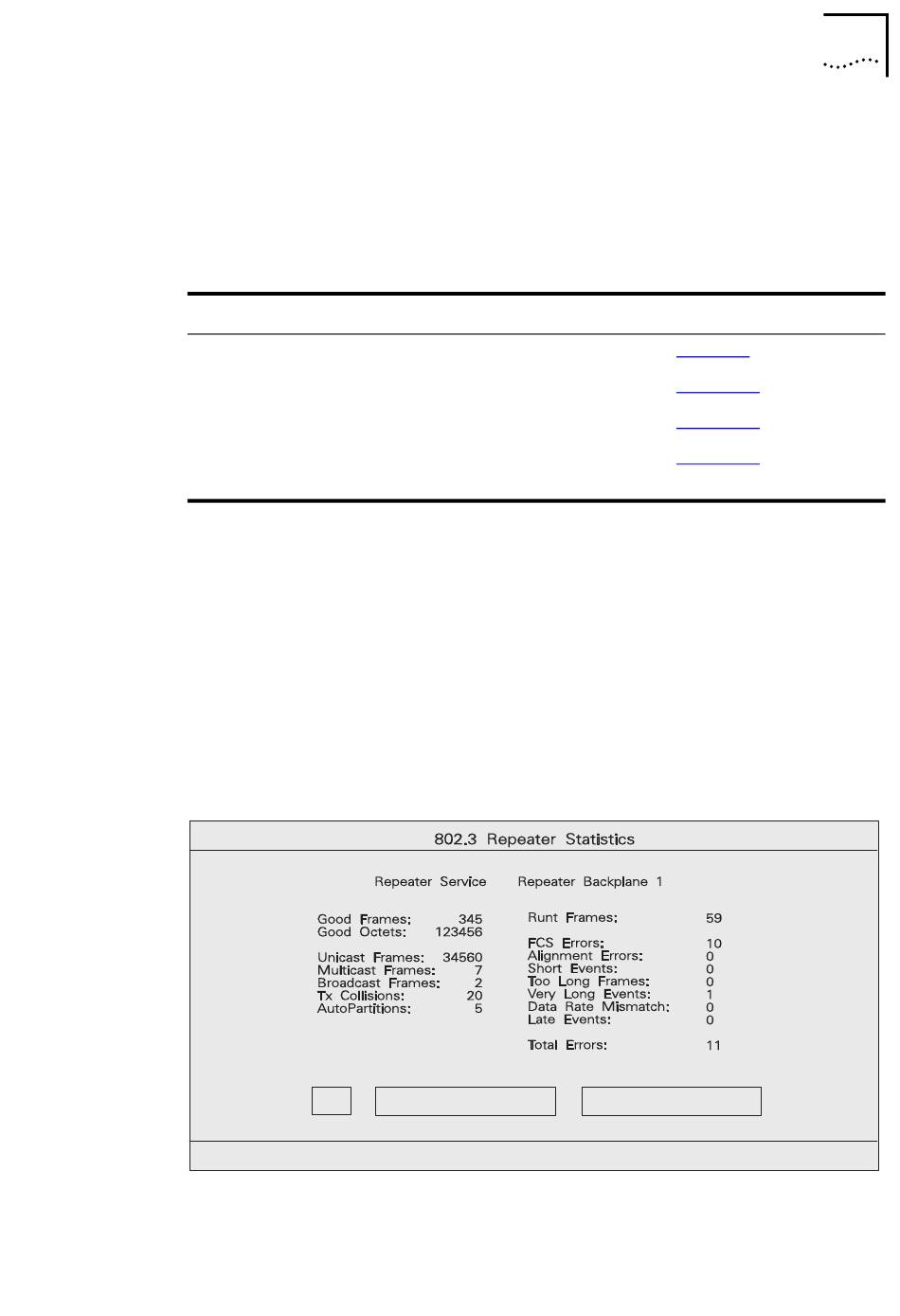

Figure 8-4 802.3 Repeater Statistics Menu
DUA1850-0AAA05
Screen
Repeater Statistics
Module Statistics
Module Configuration
previous screen -
Service Selection Menu
OK CLEAR COUNTERS
Managing the Repeater
Described on
page 8-9
page 8-12
page 8-10
page 5-10
RESET COUNTERS
