3Com 3C54321 Installation Manual

R

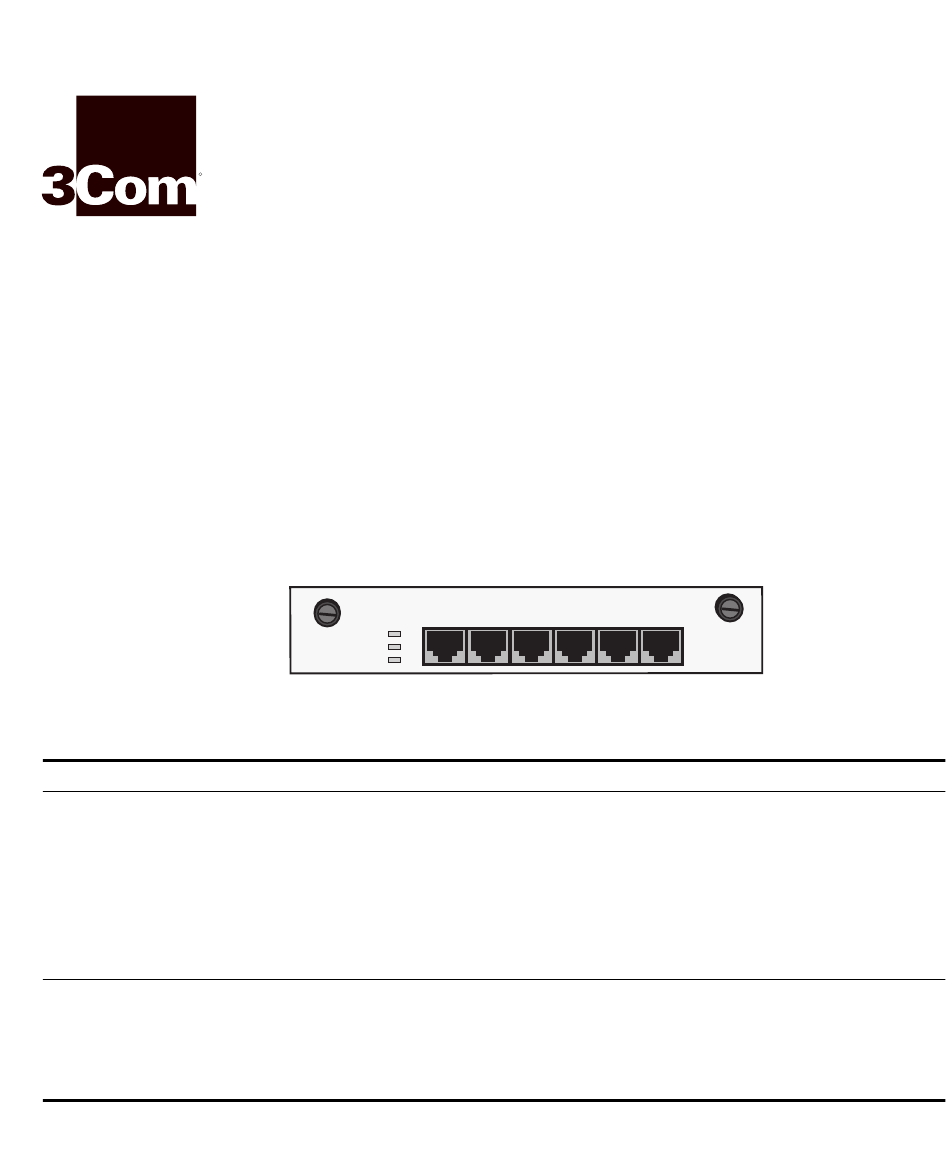

Module Description

Status LEDs

Status LED
Module PWR
Status
INS
ERR
Port Status L
E
T
10/100BASE-TX
Fast Ethernet
Module Installation Guide
For the CoreBuilder
This module contains six 10/100BASE-TX ports that use RJ-45 connectors,
providing a 10 Mbps Ethernet or 100 Mbps Fast Ethernet connection over
UTP Category 5 copper wire. The module performs autosensing for
10/100 Mbps, full duplex, and half duplex. This module complies with all
IEEE 802.3u specifications. You can remove and replace the module with
the system on.
For a description of how to configure this module into your network, see
the CoreBuilder 3500 Getting Started Guide.
100 BASE - TX
3C54321 1X
L E T
PWR
INS
ERR
This table describes the module and port LEDs:
.
Name Color
Power Green
Board Yellow
Inserted
Board Yellow
Error
Blinking
Yellow
Link Green
Error Yellow
Traffic Blinking
Green
3500 System
™
2X 3X 4X 5X
L E T L E T L E T
L E T
Description
The module is receiving power.
The module is partially inserted.
The module did not successfully complete the power-up
diagnostics.
A hardware/software incompatibility has occurred.
The associated port is active.
An error condition has occurred with the associated port, or the
port has been disabled from the Administration Console.
The port is receiving or transmitting data.
6X
L E T
