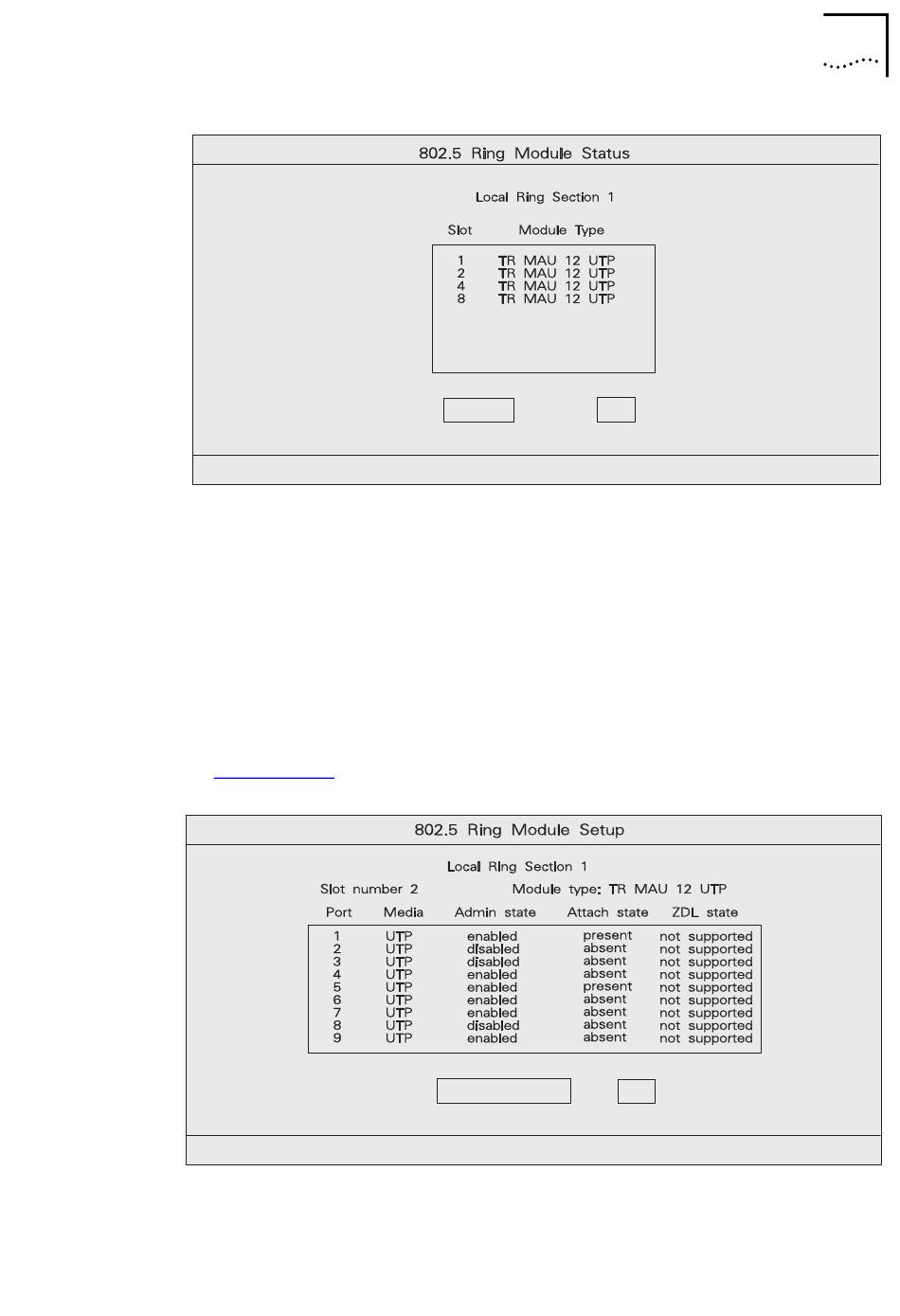

Figure 11-9 Module Status Screen

Ring Module Setup

To setup a MAU module on the ring:
1 Select a MAU from the Ring Module Status screen using the
cursor keys and space bar.
2 Move to the SETUP button and press [Return]. A screen similar
to
Figure 11-10
Figure 11-10 Module Setup Screen
DUA1850-0AAA05
SETUP
will be displayed.
PORT SETUP
Ring Module Status
OK
OK
11-17
