This topic refers to the MSH slots. The menu is expandable and only
displays those slots which contain a module. Choose which slot you
require using the 'Next' and / or 'Previous' keys to display your choice
and press 'Enter' .

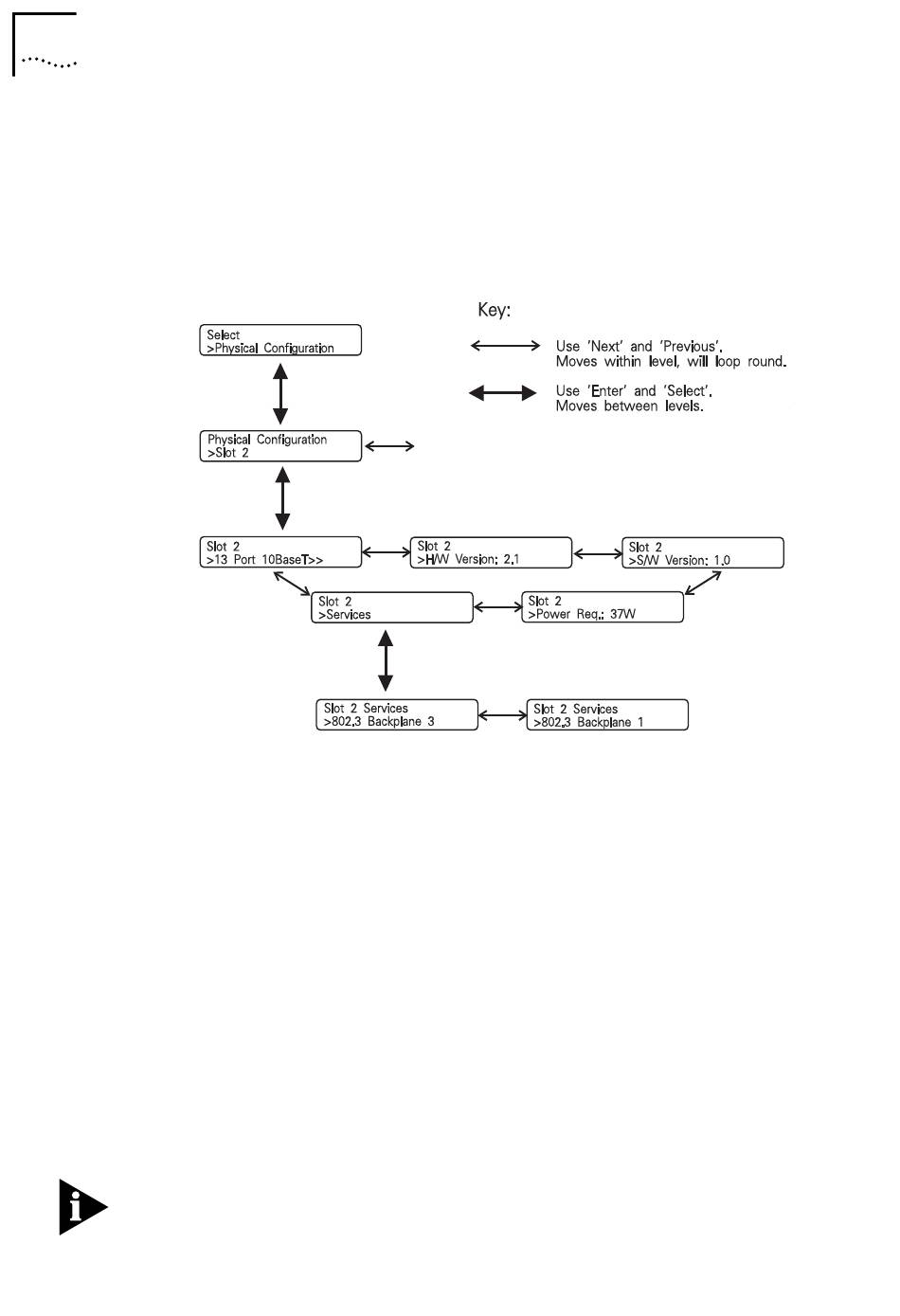

Figure 4-6 Physical Configuration Menu
Each slot choice offers you the detail shown below and in the diagram.
Move between the details with 'Next' and 'Previous' . The 'Services Used'
level has a further menu which expands with the number of services
allocated.
Module Type - e.g.: 13 port 10Base-T
H/W Version - e.g.: 2.10
S/W Version - e.g.: 1.00
Power Requirement - the +5V power used by the module, e.g.:12W.
Services - that is, Ethernet backplane bus, and/or Token Ring
backplane bus and/or...
Return through the levels using the 'Select' key.
Only if software is present on the module will the version be displayed.
