MULTI-RECEIVER, RECEIVER CAPTURE MENU

The Capture softkey accessed the following:

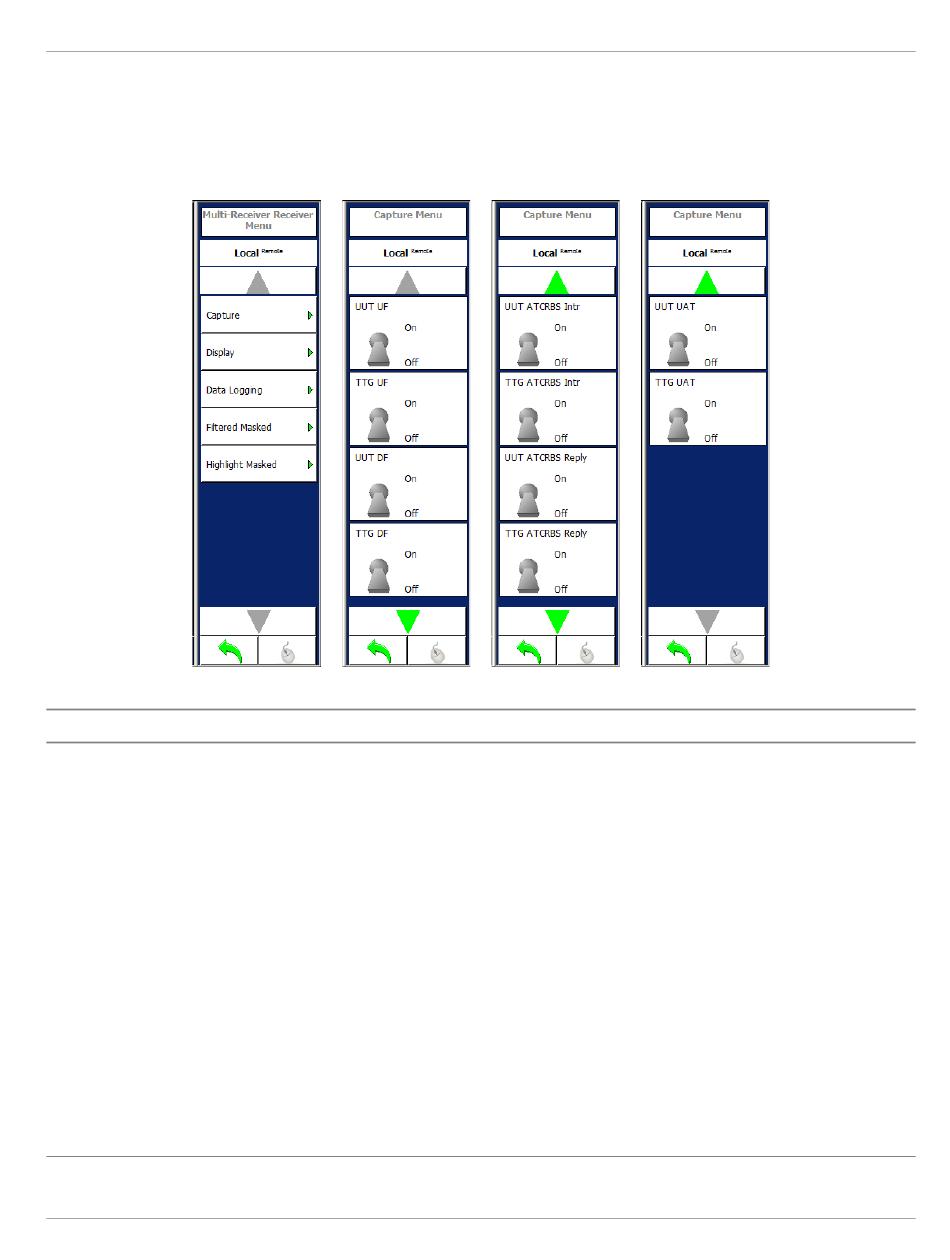

Figure 1.2.3 - 6 Multi-Receiver, Receiver Capture Menu
Screen Component
UUT ATCRBS Intr
ATC ATCRBS Intr
UUT ATCRBS Reply
ATC ATCRBS Reply
1-2-3
Page 16
Description
Allows the user to enable/disable capture of TCAS UF
UUT UF
messages.
Allows the user to enable/disable capture of Test Set UF
ATC UF
messages.
Allows the user to enable/disable capture of Transponder DF
UUT DF
messages.
Allows the user to enable/disable capture of Test Set DF
ATC DF
messages.
Allows the user to enable/disable capture of TCAS ATCRBS
interrogations.
Allows the user to enable/disable capture of Test Set ATCRBS
interrogations.
Allows the user to enable/disable capture of Transponder
ATCRBS replies.
Allows the user to enable/disable capture of Test Set ATCRBS
replies.
