  • Page 1 AVX-10K Flight Line Test Set Getting Started Guide...
  • Page 2 AVX-10K Flight Line Test Set Getting Started Guide 22135253 Rev. 003 VIAVI Solutions 1-844-GO-VIAVI www.viavisolutions.com...
  • Page 3 Reproduction and distribution of this guide is authorized for US Government purposes only. VIAVI is a trademark of VIAVI Solutions Inc. in the United States and other countries. Microsoft, Windows, Windows CE, Windows NT, MS-DOS, Excel, Word and Microsoft Internet Explorer are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

  • Page 4: Table Of Contents

    Running a Self-test on the AVX-10K........

  • Page 5: Chapter 1 General Information

    AVX-10K Flight Line Test Resources on the VIAVI web site provides access to additional resources, including the AVX-10K Flight Line Test Set Operation Manual, product brochures, data sheet, selection guides, and software release notes. For detailed information about using StrataSync™ to update AVX-10K software, refer to...

  • Page 6: Safety

    – Do not use or store the battery in temperatures that exceed the manufacturer’s specifications. Follow manufacturer’s instructions for battery storage and use. – The battery included with the product is only to be used with the AVX-10K. – Do not overload input connectors. Refer to product specifications or product labeling for maximum input ratings.

  • Page 7: Unpacking Equipment

    Unpack the equipment from the shipping container. • New units purchased with a transit case are shipped inside the transit case. • Units returned to the customer from VIAVI are shipped in accordance with VIAVI shipping standards, and are shipped inside the transit case, as applicable.

  • Page 8: Configuration Details

    Chapter 1 General Information Configuration Details Table 1-1 AVX-10K Preconfigured Kits Kits Catalog Number Description AVX-10K-FLTS AVX-10K-NAV AVX-10K-SVLC AVX-10K-CNS AVX-10K AVX-10K Unit ▄ ▄ ▄ ▄ AC10K-PWRADPTR AC/DC Power Adapter ▄ ▄ ▄ ▄ AC10K-HANDSTRAP Hand Strap ▄ ▄ ▄...
  • Page 9 Cable, Coax 50' 140889 TC-201A TCAS/XPDR Directional Antenna Coupler 90106 UC-584S Coupler Placement Pole Figure 1-2 AVX-10K kit example NOTE: Figure 1-2 is not representative of the AVX-10K-FLTS kit. 22135253 Rev. 003 AVX-10K Getting Started Guide Page 1 - 5...

  • Page 10: Specifications

    Chapter 1 General Information Specifications Refer to the AVX-10K data sheet for complete specifications. For information about accessing the data sheet, see "Where to Find More Information" on page 1-1. Table 1-4 AVX-10K Specifications Parameter Specification Temperature Storage -30 to 71 °C (-22 TO 159 °F) Operating -20 to 45 °C (-4 TO 113 °F)

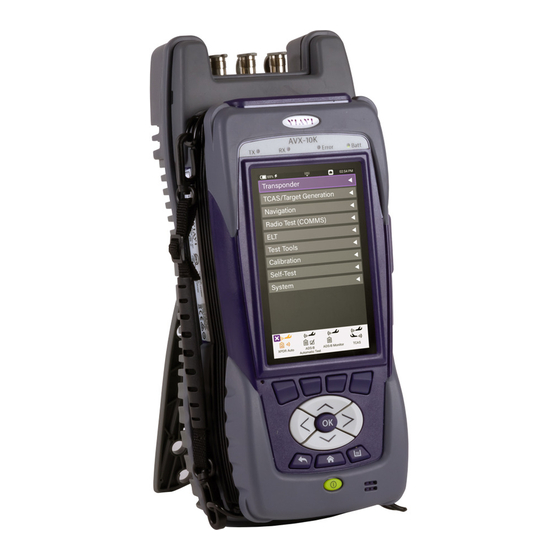

  • Page 11 Full-color Touchscreen Display Hand Strap Clips Status Indicator Lights Power Button GPS Antenna Speaker Antenna (ANT) Port Back Button Direct (RF/IO) Port Home Button SWR Port Quick Tray Button 22135253 Rev. 003 AVX-10K Getting Started Guide Page 2 - 1...

  • Page 12: Chapter 2 Product Familiarization

    UI indicators appear at the top of the touchscreen display. Interaction The AVX-10K features hard keys for control and navigation, as well as a Liquid Crystal Display (LCD) capacitive touchscreen. The touchscreen supports gestures such as press to open/select/activate, press and hold, drag and drop, swipe sideways, and pinch-to-zoom where applicable.

  • Page 13: Chapter 3 First-Time Use

    First-time Use Chap ter 3 CAUTION Read this section carefully and in its entirety before powering on the AVX-10K test set. Powering on the AVX-10K NOTE: VIAVI recommends that you fully charge the battery prior to first use. See "Charging the AVX-10K Battery"...

  • Page 14: Running A Self-Test On The Avx-10K

    If any test fails, contact your VIAVI Customer Service representative. Powering Off the AVX-10K • Press the Power button, and then release it when with the VIAVI logo appears on the touchscreen. The AVX-10K performs a series of power-down processes and then powers off.

  • Page 15: Charging The Avx-10K Battery

    Chapter 3 First-time Use Charging the AVX-10K Battery The AVX-10K is designed to be powered by either an internal battery or AC power. VIAVI recommends that you fully charge the battery prior to first use. Connect the AVX-10K to an AC power source: Connect the power cord to the AC Adapter/Charger.

  • Page 16: Software Download

    Chapter 3 First-time Use Software Download Before using the AVX-10K, verify that the test set is running the most recent software version. On the touchscreen, open the System ribbon, and then start the System Settings application. Select Hardware & Software Revision, and note the software version at the top of the screen.

  • Page 17: Accessing Stratasync

    Chapter 3 First-time Use Do one of the following: • If you purchased AVX-10K test sets directly from VIAVI, obtain a Customer number by filling out the form and submitting your StrataSync account request. You should shortly receive an email with your StrataSync account ID number, username and temporary password.
  • Page 18 Chapter 3 First-time Use After the synchronization procedure completes, the AVX-10K appears on the assets list on the StrataSync web site. Verify that the serial number on the side of the AVX-10K (see "AVX-10K Serialization" on page 3-8) appears in the asset list.

  • Page 19: Stratasync Update Procedure

    On the Update Firmware screen in StrataSync, select the icon for the software version you want to install. Locate each AVX-10K test set you want to update, select the box in the leftmost column, and then select YES on the next screen to proceed.

  • Page 20: Avx-10K Serialization

    Figure 3-2 Example: Serial Tag – AVX-10K Transit Case A serial tag that relates to the base unit (upper half) of the AVX-10K test set is affixed to the side of the test set.This serial tag is the parent serial number that StrataSync recognizes for a registered test set.
  • Page 21 AVX-10K Getting Started Guide 22135253 Rev. 003 November 2022 English VIAVI Solutions North America: 1.844.GO VIAVI / 1.844.468.4284 Latin America +52 55 5543 6644 EMEA +49 7121 862273 APAC +1 512 201 6534 All Other Regions: viavisolutions.com/contacts...
