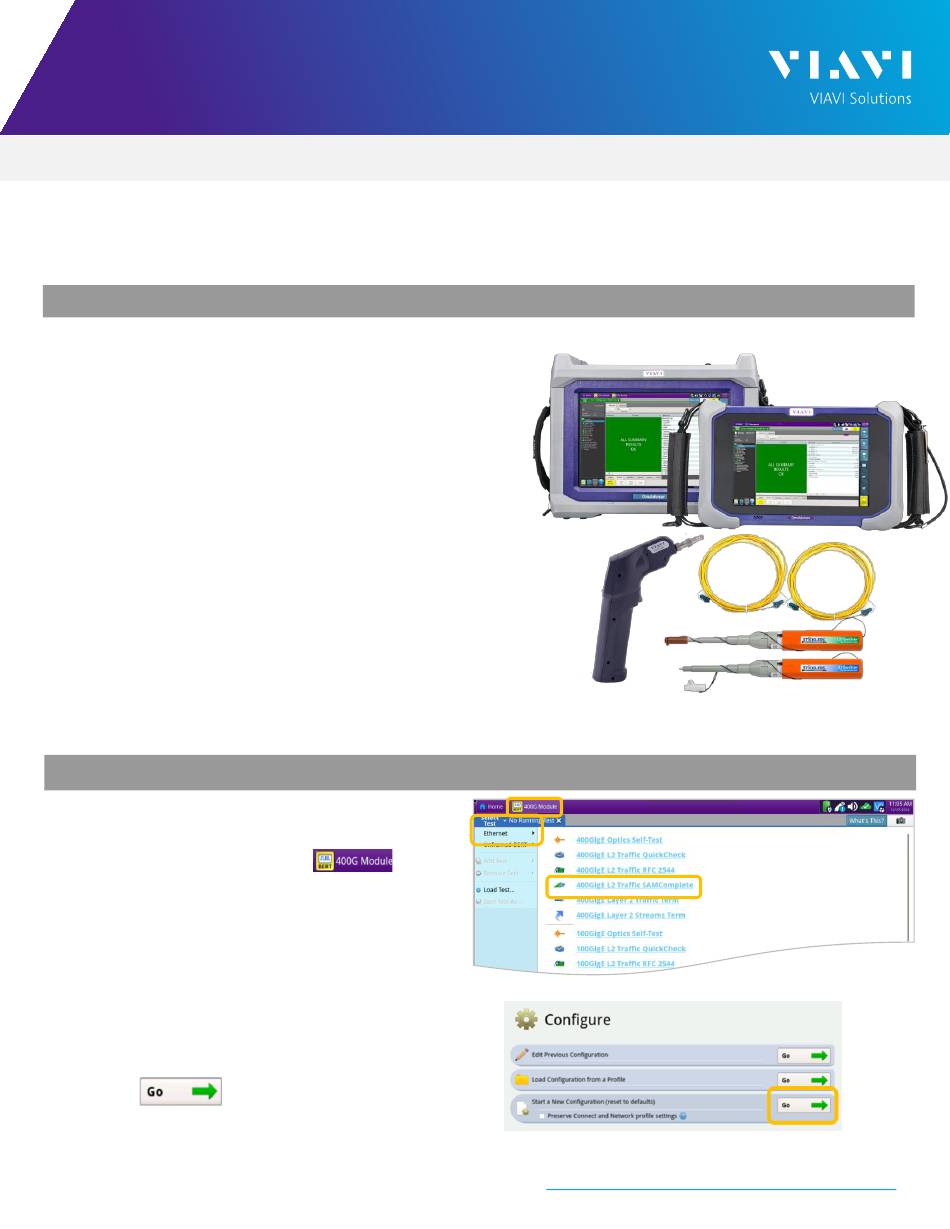

OneAdvisor High-Speed Network Testing Platforms
QUICK CARD
Ethernet Y.1564 Layer 2 Traffic
This quick card describes how to set up the OneAdvisor 800 400G Module or OneAdvisor 1000 400G
Module to run an ITU Y.1564 Layer 2 Traffic Test for Metro Ethernet service activation.
•
OneAdvisor 800 or OneAdvisor 1000 equipped with the following:
400G Transport Module
o
Transport software release V4.0.0 or greater
o
Software option for data rate to be tested:
o
✓
CA10M1GE test option for 10/100/1000M
Copper or 1 Gigabit Optical Ethernet
✓
CA10GELAN test option for 10 Gigabit Ethernet
✓
CA25GE test option for 25 Gigabit Ethernet
✓
CA40GE test option for 40 Gigabit Ethernet
✓
CA50GE test option for 50 Gigabit Ethernet
✓
CA100GE test option for 100 Gigabit Ethernet
✓
CA200GE test option for 200 Gigabit Ethernet
✓
CA400GE test option for 400 Gigabit Ethernet
•
Optical Transceiver supporting the Ethernet data rate
to be tested (SFP, QSFP, or OSFP)
•
Cables to match the optical transceiver and the line under test
•
Fiber optic inspection microscope (P5000i or FiberChek Probe)
•
Fiber optic cleaning supplies
L A U N C H T E S T
Press the Power button to turn on the
1.
OneAdvisor.
Press the 400G Module icon
2.
at the top of the screen.
Using the Select Test menu, Quick Launch
3.
menu, or Job Manager, launch the Ethernet
Layer 2 Traffic test for the desired data rate on
the desired port (P1 or P2). For example:
Ethernet ►400GigE Optical
►Y.1564 SAMComplete ►Layer 2 Traffic
►P2 Terminate.
Tap the
4.
Configuration (reset to defaults)"
OneAdvisor High-Speed Network Testing Platforms
button next to "Start a New
Figure 3: Start a New Configuration
https://www.viavisolutions.com/en-us/product-family/oneadvisor
VIAVI//Public

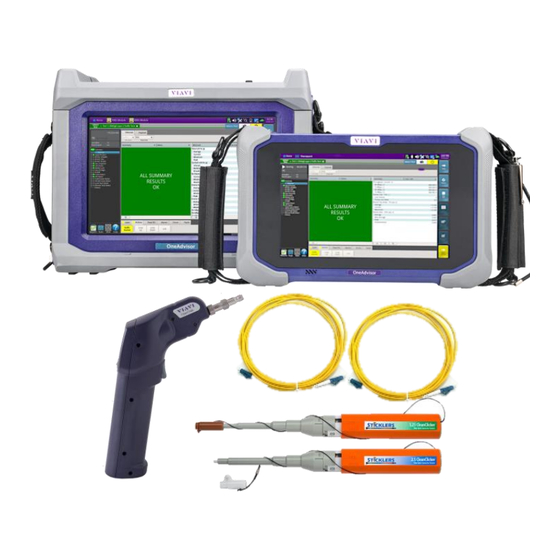

Figure 1: Equipment Requirements
Figure 2: Launch Test
