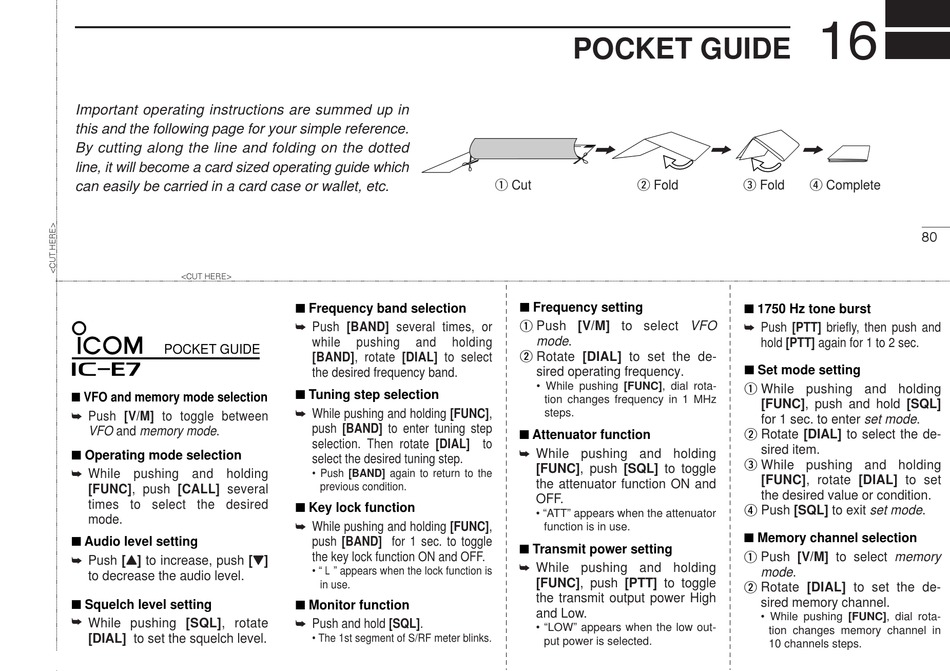

Pocket Guide - Icom IC-E7 Instruction Manual

Important operating instructions are summed up in
this and the following page for your simple reference.
By cutting along the line and folding on the dotted
line, it will become a card sized operating guide which
can easily be carried in a card case or wallet, etc.
<CUT HERE>

POCKET GUIDE

iE7
■ VFO and memory mode selection
➥
Push [V/M] to toggle between
VFO and memory mode .
■ Operating mode selection
➥
While pushing and holding
[FUNC], push [CALL] several
times to select the desired
mode.
■ Audio level setting
➥
Push [Y] to increase, push [Z]
to decrease the audio level.
■ Squelch level setting
➥
While pushing [SQL], rotate
[DIAL] to set the squelch level.
■ Frequency band selection
➥
Push [BAND] several times, or
while pushing and holding
[BAND], rotate [DIAL] to select
the desired frequency band.
■ Tuning step selection
➥
While pushing and holding [FUNC],
push [BAND] to enter tuning step
selection. Then rotate [DIAL] to
select the desired tuning step.
• Push [BAND] again to return to the
previous condition.
■ Key lock function
➥
While pushing and holding [FUNC],
push [BAND] for 1 sec. to toggle
the key lock function ON and OFF.
• " L " appears when the lock function is
in use.
■ Monitor function
➥
Push and hold [SQL].
• The 1st segment of S/RF meter blinks.
POCKET GUIDE
q Cut w Fold
■ Frequency setting
q
Push [V/M] to select VFO
mode .
w
Rotate [DIAL] to set the de-
sired operating frequency.
• While pushing [FUNC], dial rota-
tion changes frequency in 1 MHz
steps.
■ Attenuator function
➥
While pushing and holding
[FUNC], push [SQL] to toggle
the attenuator function ON and
OFF.
• "ATT" appears when the attenuator
function is in use.
■ Transmit power setting
➥
While pushing and holding
[FUNC], push [PTT] to toggle
the transmit output power High
and Low.
• "LOW" appears when the low out-
put power is selected.
16
e Fold r Complete
80
■ 1750 Hz tone burst
➥
Push [PTT] briefly, then push and
hold [PTT] again for 1 to 2 sec.
■ Set mode setting
q
While pushing and holding
[FUNC], push and hold [SQL]
for 1 sec. to enter set mode .
w
Rotate [DIAL] to select the de-
sired item.
e
While pushing and holding
[FUNC], rotate [DIAL] to set
the desired value or condition.
r
Push [SQL] to exit set mode .
■ Memory channel selection
q
Push [V/M] to select memory
mode .
w
Rotate [DIAL] to set the de-
sired memory channel.
• While pushing [FUNC], dial rota-
tion changes memory channel in
10 channels steps.
