Using ProSoft Configuration Builder (PCB) for Diagnostics

The Configuration and Debug menu for this module is arranged as a tree structure, with
the Main menu at the top of the tree, and one or more submenus for each menu
command. The first menu you see when you connect to the module is the Main menu.
Because this is a text-based menu system, you enter commands by typing the
[command letter] from your computer keyboard in the Diagnostic window in ProSoft
Configuration Builder (PCB). The module does not respond to mouse movements or
clicks. The command executes as soon as you press the [
not need to press [E
displayed in your terminal application.

4.2.1 Using the Diagnostic Window in ProSoft Configuration Builder

To connect to the module's Configuration/Debug serial port

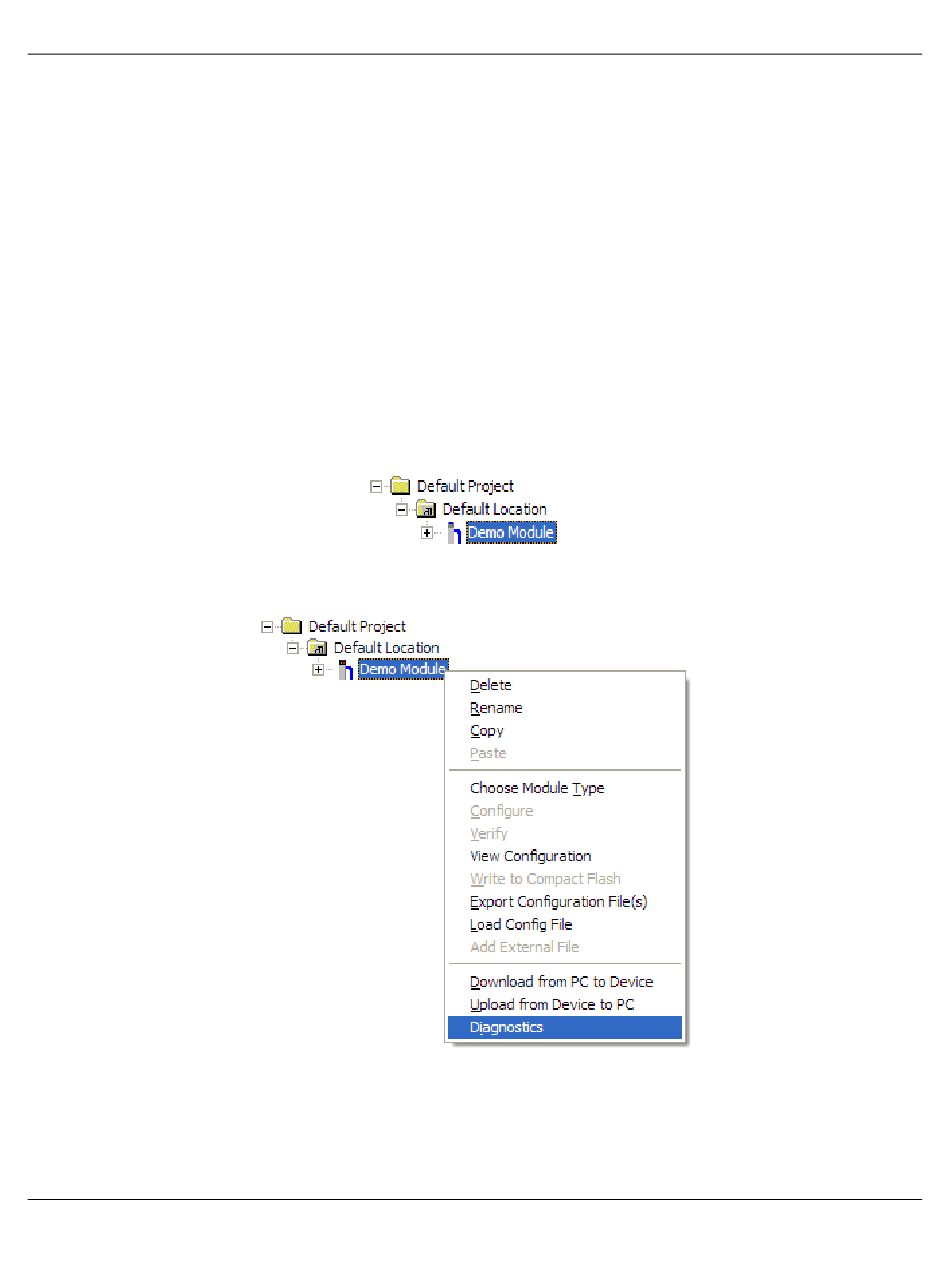

1 Start PCB, and then select the module to test. Click the right mouse button to open a
shortcut menu.
2 On the shortcut menu, choose D
This action opens the Diagnostics dialog box.
ProSoft Technology, Inc.
]. When you type a [
NTER
IAGNOSTICS
COMMAND LETTER
], a new screen will be
COMMAND LETTER
.
