RT765E-2 SERVICE MANUAL
21
22
22
33
27 28
26
30
29
Item
1
Barrel
2
Piston
3
Setscrew
4
Seal Assembly
5
Wear Ring
6
O-ring
7
Backup Ring
8
Spacer
9
Wear Ring
10
Rod
11
Head
12
Wear Ring
13
O-ring
GROVE
35
20
25
23
34
4
5
3
4
2
7
6
7
Description
Published 9-04-2014, Control # 422-08
1
14
11
13
36
12
19
9
8
24
9
31
32
Item
14
Backup Ring
15
Buffer Seal
16
Rod Seal
17
Backup Ring
18
Wiper Ring
19
Retainer Seal
20
Counterbalance Valve
21
O-ring
22
Backup Ring
23
Rod
24
Seal
25
Guidelock Ring
26
Retaining Plate
HYDRAULIC SYSTEM
18
17
16
15
7551
10
32

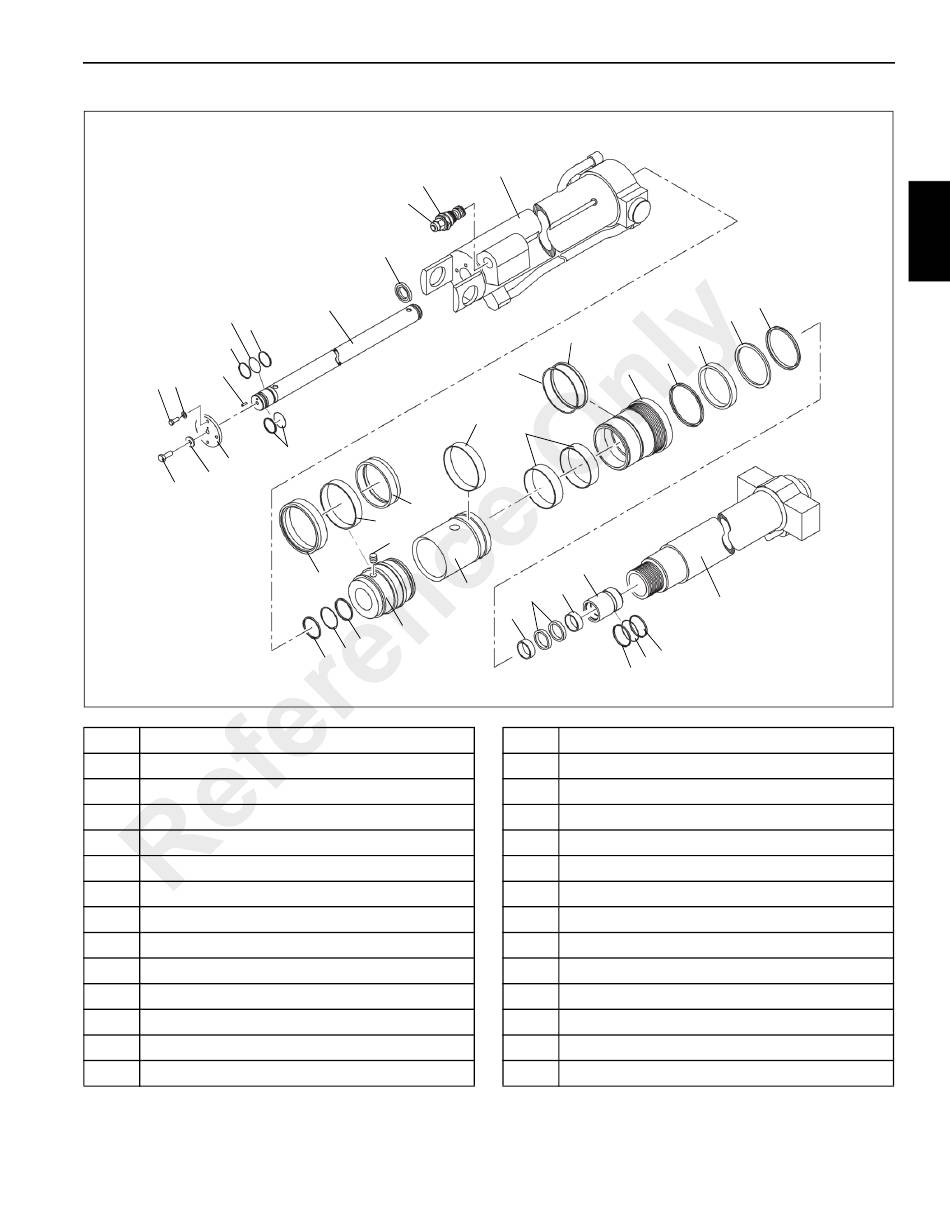

FIGURE 2-39
