RT765E-2 SERVICE MANUAL
OUTRIGGER/REAR STEER VALVE
Description

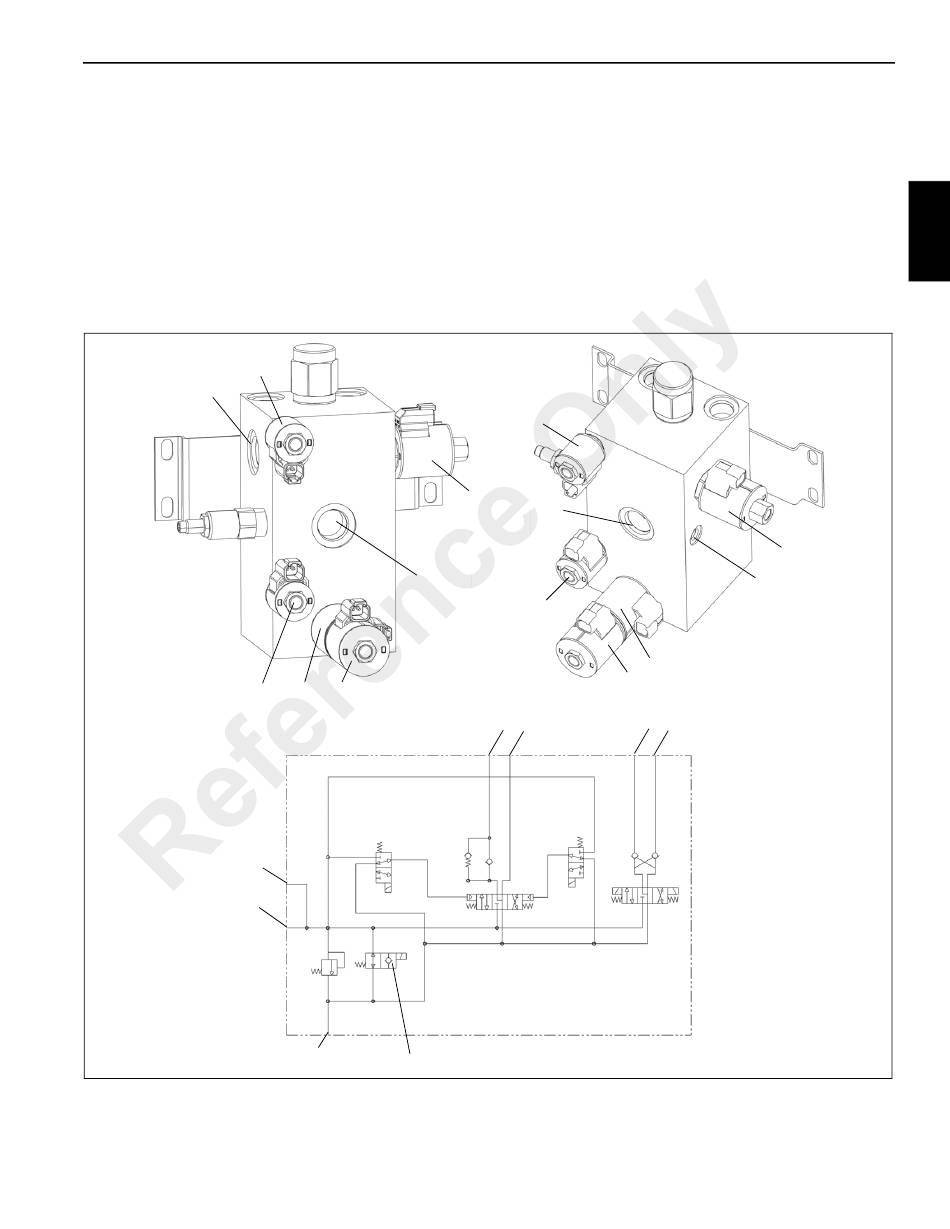

The outrigger/rear steer valve Figure 2-28 controls the
outrigger circuit and the rear steer circuit. The valve is
mounted on the front face of the carrier frame front cross
member forward of the swivel.
The inlet section contains a 2500 psi (17,200 kPa) relief
valve and a solenoid valve. The solenoid valve is normally
open bypassing oil from the inlet port to the tank port.
Activation of either the outriggers or the rear steer energizes
5
1
4
3
2
GROVE
8
2
7531-1
7
6
1
8
Published 9-04-2014, Control # 422-08
the solenoid valve to close and allow oil to flow to the
selected circuit.
The rear steer section contains a three position four-way
solenoid controlled directional valve.
The outrigger section contains a three position four-way
solenoid controlled directional valve.
Both four-way solenoid valves contain manual override
actuators which allow the valves to be shifted if electrical
power is lost.
5
2
4
7
6
4
7
5
6
7531-3
HYDRAULIC SYSTEM
8
3
7531-2
FIGURE 2-28
2-47
2
