Exploded View Diagram; Figure 4-1. Exploded View Of The J5000 And J7000 Workstation - HP Visualize J5000 - Workstation Handbook

Field Replaceable Units (FRUs)
FRU Removal and Replacement

Exploded View Diagram

Figure 4-1 shows an exploded view of the internal components (FRUs) in the J5000 and
J7000 workstations. Note that this figure calls-out those components which are different
for the J5000 versus the J7000.
Refer to this figure for the locations of the various workstation FRUs while performing the
FRU removal and replacement procedures in this chapter.

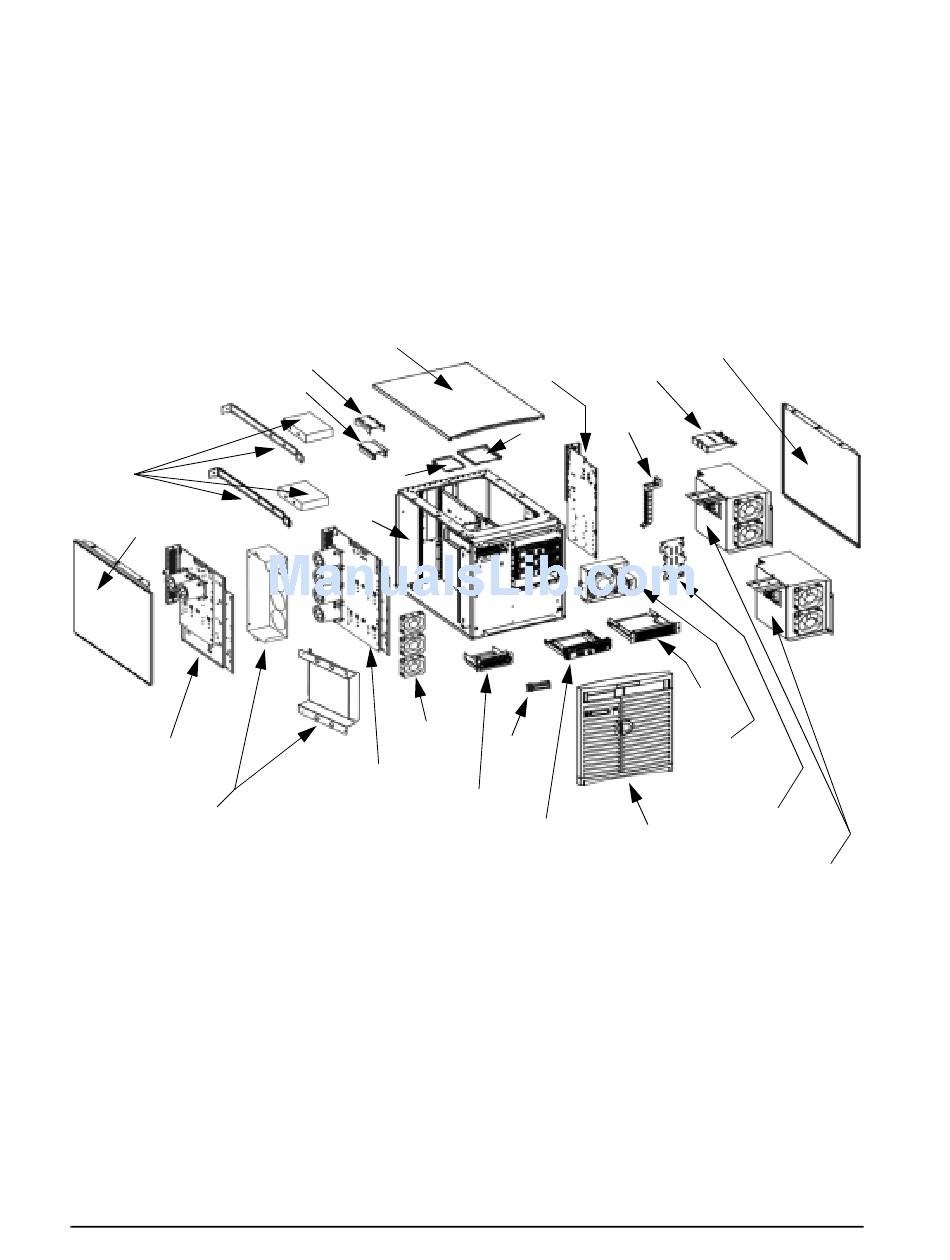

Figure 4-1. Exploded View of the J5000 and J7000 Workstation

Flex cable
DC/DC converter
units and
tie-downs
for J7000
Left side panel
J5000 system board
tray assembly
Rear and
front air dividers
for J7000
86
Top panel
Flex cable
retainer
DDS-3/floppy
EMI cover
Chassis
System board
cooling fans
J7000 system board
tray assembly
DDS-3/floppy
drive carrier
Right side panel
I/O board Bus bar shield
PCI
retainer
clip
CD EMI
cover
Power
switch/
LCD
Hard disk
Front bezel
drive carrier
CD drive
carrier
I/O cooling fan
and speaker
SCA hard
disk interface
Power supply for
J7000 (top) and
J5000 (bottom)
