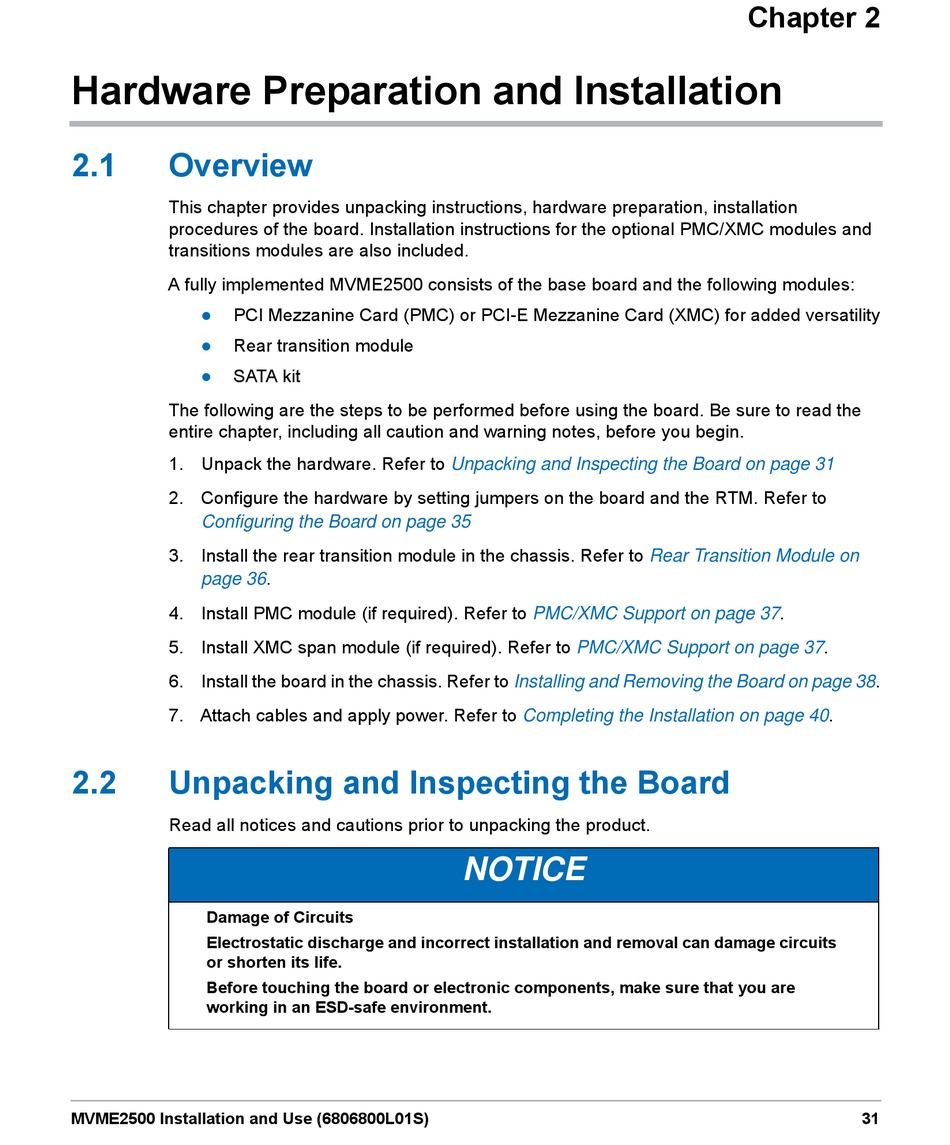

Hardware Preparation and Installation

2.1

Overview

This chapter provides unpacking instructions, hardware preparation, installation
procedures of the board. Installation instructions for the optional PMC/XMC modules and
transitions modules are also included.
A fully implemented MVME2500 consists of the base board and the following modules:
PCI Mezzanine Card (PMC) or PCI-E Mezzanine Card (XMC) for added versatility

Rear transition module

SATA kit

The following are the steps to be performed before using the board. Be sure to read the
entire chapter, including all caution and warning notes, before you begin.
1. Unpack the hardware. Refer to
2. Configure the hardware by setting jumpers on the board and the RTM. Refer to
Configuring the Board on page 35
3. Install the rear transition module in the chassis. Refer to
page 36.
4. Install PMC module (if required). Refer to
5. Install XMC span module (if required). Refer to
6. Install the board in the chassis. Refer to
7. Attach cables and apply power. Refer to
2.2

Unpacking and Inspecting the Board

Read all notices and cautions prior to unpacking the product.
Damage of Circuits
Electrostatic discharge and incorrect installation and removal can damage circuits
or shorten its life.
Before touching the board or electronic components, make sure that you are
working in an ESD-safe environment.
MVME2500 Installation and Use (6806800L01S)
Unpacking and Inspecting the Board on page 31
PMC/XMC Support on page
PMC/XMC Support on page
Installing and Removing the Board on page
Completing the Installation on page
NOTICE
Chapter 2
Rear Transition Module on
37.
37.
40.
38.
31
