Hardware Preparation and Installation
2.7

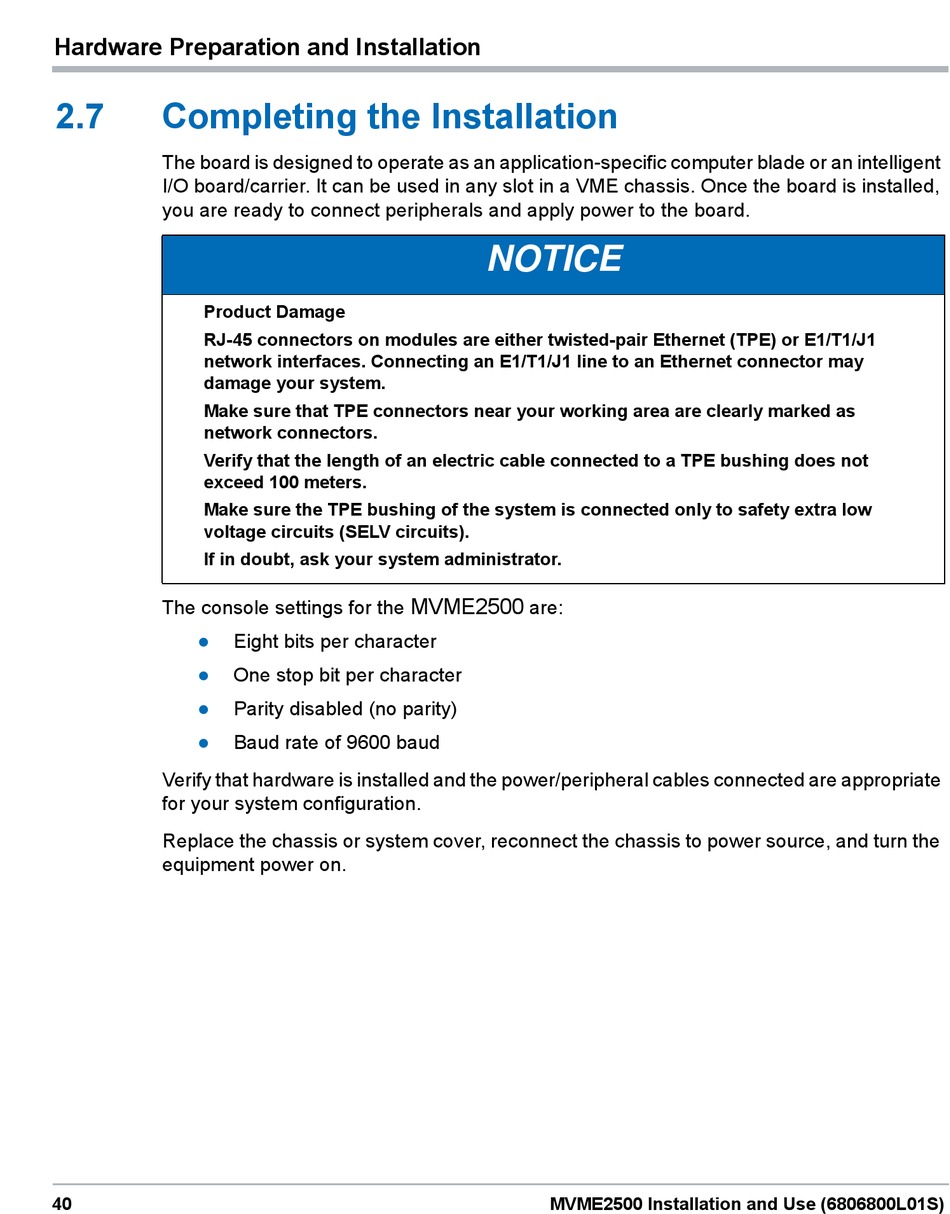

Completing the Installation

The board is designed to operate as an application-specific computer blade or an intelligent
I/O board/carrier. It can be used in any slot in a VME chassis. Once the board is installed,
you are ready to connect peripherals and apply power to the board.
Product Damage
RJ-45 connectors on modules are either twisted-pair Ethernet (TPE) or E1/T1/J1
network interfaces. Connecting an E1/T1/J1 line to an Ethernet connector may
damage your system.
Make sure that TPE connectors near your working area are clearly marked as
network connectors.
Verify that the length of an electric cable connected to a TPE bushing does not
exceed 100 meters.
Make sure the TPE bushing of the system is connected only to safety extra low
voltage circuits (SELV circuits).
If in doubt, ask your system administrator.
The console settings for the
Eight bits per character

One stop bit per character

Parity disabled (no parity)

Baud rate of 9600 baud

Verify that hardware is installed and the power/peripheral cables connected are appropriate
for your system configuration.
Replace the chassis or system cover, reconnect the chassis to power source, and turn the
equipment power on.
40
NOTICE
MVME2500
are:
MVME2500 Installation and Use (6806800L01S)
Hardware Preparation and Installation
