Chapter 4

Functional Description

4.1

Block Diagram

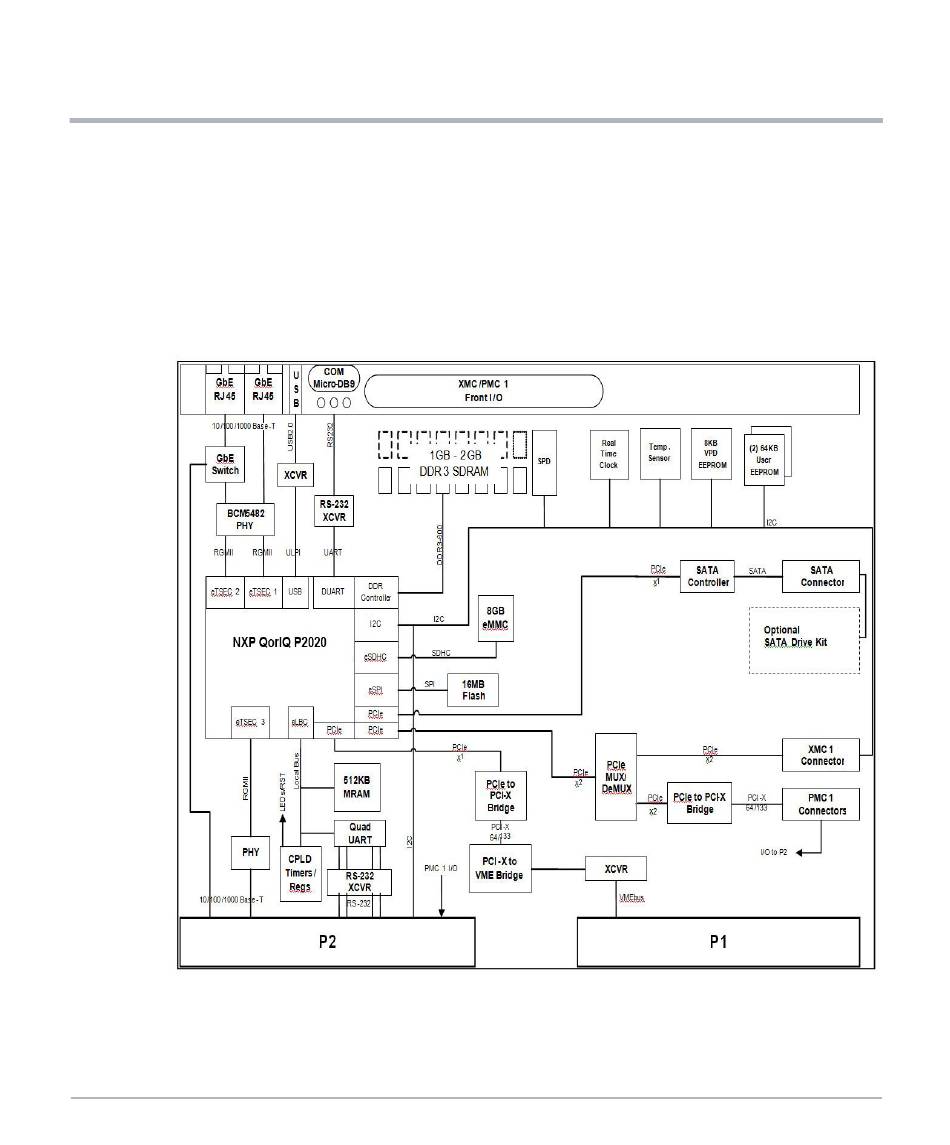

The MVME2500 block diagram is illustrated in 4-1. All variants provide front panel
Figure
access to one serial port via a micro-mini DB-9 connector, two 10/100/1000 Ethernet port
(one is configurable to be routed to the front panel or to the rear panel) through a ganged
RJ-45 connector and one Type A USB port. It includes board-fail LED indicator, user-
defined LED indicator and an ABORT/RESET switch.
