Functional Description
4.16

Clock Structure

A total of three IDT chips, a discrete oscillator, and crystal supports all the clock
requirements of MVME2500.

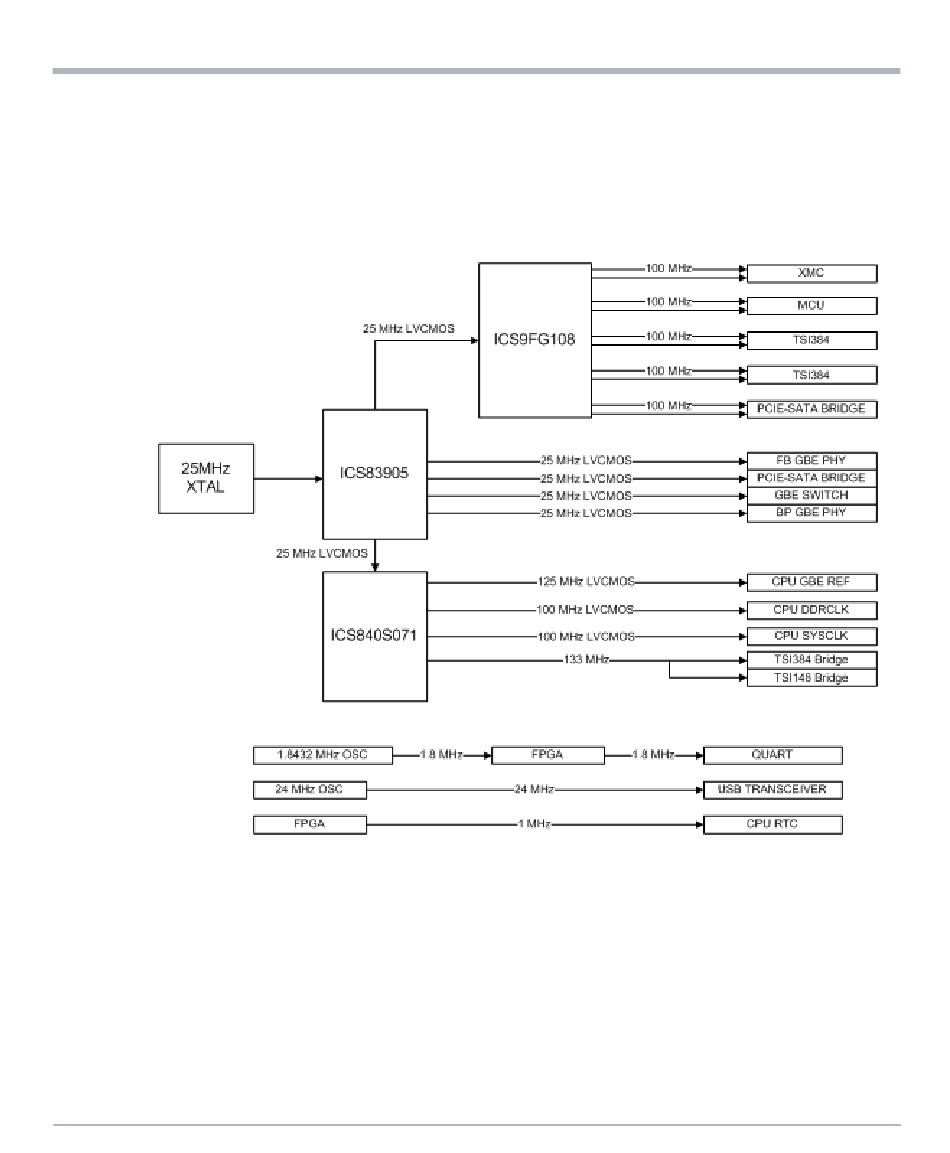

Figure 4-3 Clock Distribution Diagram

4.17

Reset Structure

The MVME2500 reset will initiate after the power up sequence if the 1.5V power supply is
GOOD. When the board is at ready state, the reset logic will monitor the reset sources and
implement the necessary reset function.
