On-board LEDs

The on-board LEDs are listed below. To view its location on the board, see
page 41.

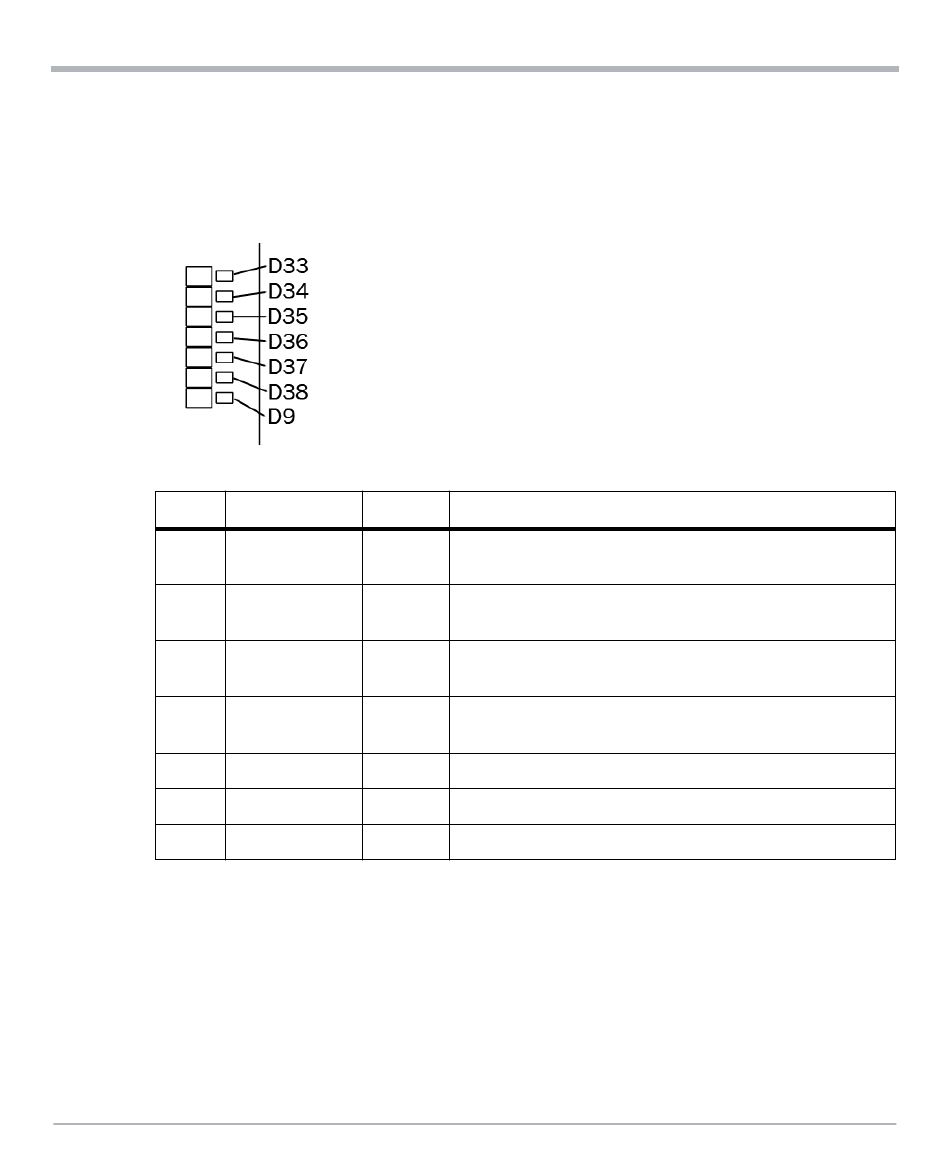

Figure 3-4 On-board LEDs

Table 3-2
Label Function
D9 Power Fail
D33 User Defined
D34 User Defined
D35 User Defined
D36 Early Power Fail Amber
D37 User Defined
D38 User Defined
3.4

Connectors

This section describes the pin assignments and signals for the connectors on the
MVME2500.
MVME2500 Installation and Use (6806800L01S)
On-board LEDs Status
Color
Red
Amber
Amber
Amber
Amber
Amber
Controls, LEDs, and Connectors
Description
This indicator is illuminated when one or more of the on-
board voltage rails fails.
Controlled by the FPGA. Used for boot-up sequence
indicator.
Controlled by the FPGA. Used for boot-up sequence
indicator.
Controlled by the FPGA. Used for boot-up sequence
indicator.
This indicator is lit when the early 3.3V power supply fails.
Controlled by the FPGA
Controlled by the FPGA
