Note that this switch is wired in parallel with the geographical address pins on the 5-row
connector. These switches must be in the OFF position when installed in a 5-row chassis
in order to get the correct address from the P1 connector. This switch also includes the
SCON control switches.

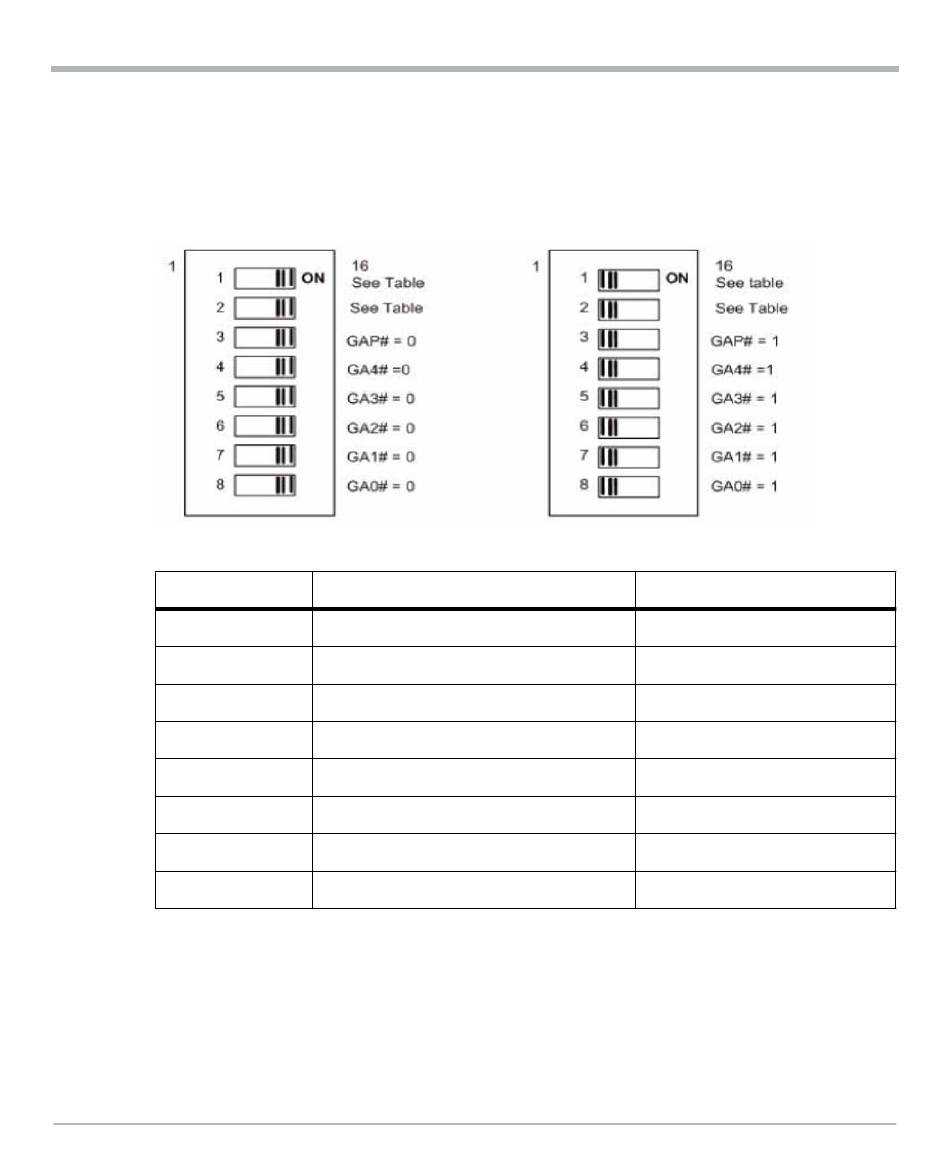

Figure 3-5 Geographical Address Switch

Table 3-19 Geographical Address Switch

Position
S1-1
S1-2
S1-3
S1-4
S1-5
S1-6
S1-7
S1-8
1. The VME SCON MAN switch is OFF to select Auto-SCON mode. The switch is ON to select manual SCON mode which works
in conjunction with the VME SCON SEL switch.
2. The VME SCON SEL switch is OFF to select non-SCON mode. The switch is ON to select always SCON mode. This switch is
only effective when the VME SCON MAN switch is ON.
MVME2500 Installation and Use (6806800L01S)
Function
1
VME SCON Auto
2
VME SCON SEL
GAP
GAP4
GAP3
GAP2
GAP1
GAP0
Controls, LEDs, and Connectors
Default
Auto-SCON
Non-SCON
1
1
1
1
1
1
