Commissioning
98
9.5.4 Configuration of a connected RTD
1. Make sure the RTD is connected as defined by the terminal assignment →  46.
2. Navigate to the submenu of the respective Analog I/O module: Setup → Advanced
setup → Input/output → Analog IP
3. Go to the RTD type parameter (→  191) and specify the type of the connected
RTD.
4. Go to the RTD connection type parameter (→  192) and specify the type of
connection of the RTD (2-, 3- or 4-wire).
5. Go to the Input value parameter and check whether the indicated temperature
matches the actual temperature.
6. Go to the Minimum probe temperature parameter (→  193) and specify the
minimum approved temperature of the connected RTD.
7. Go to the Maximum probe temperature parameter (→  194) and specify the
maximum approved temperature of the connected RTD.
8.

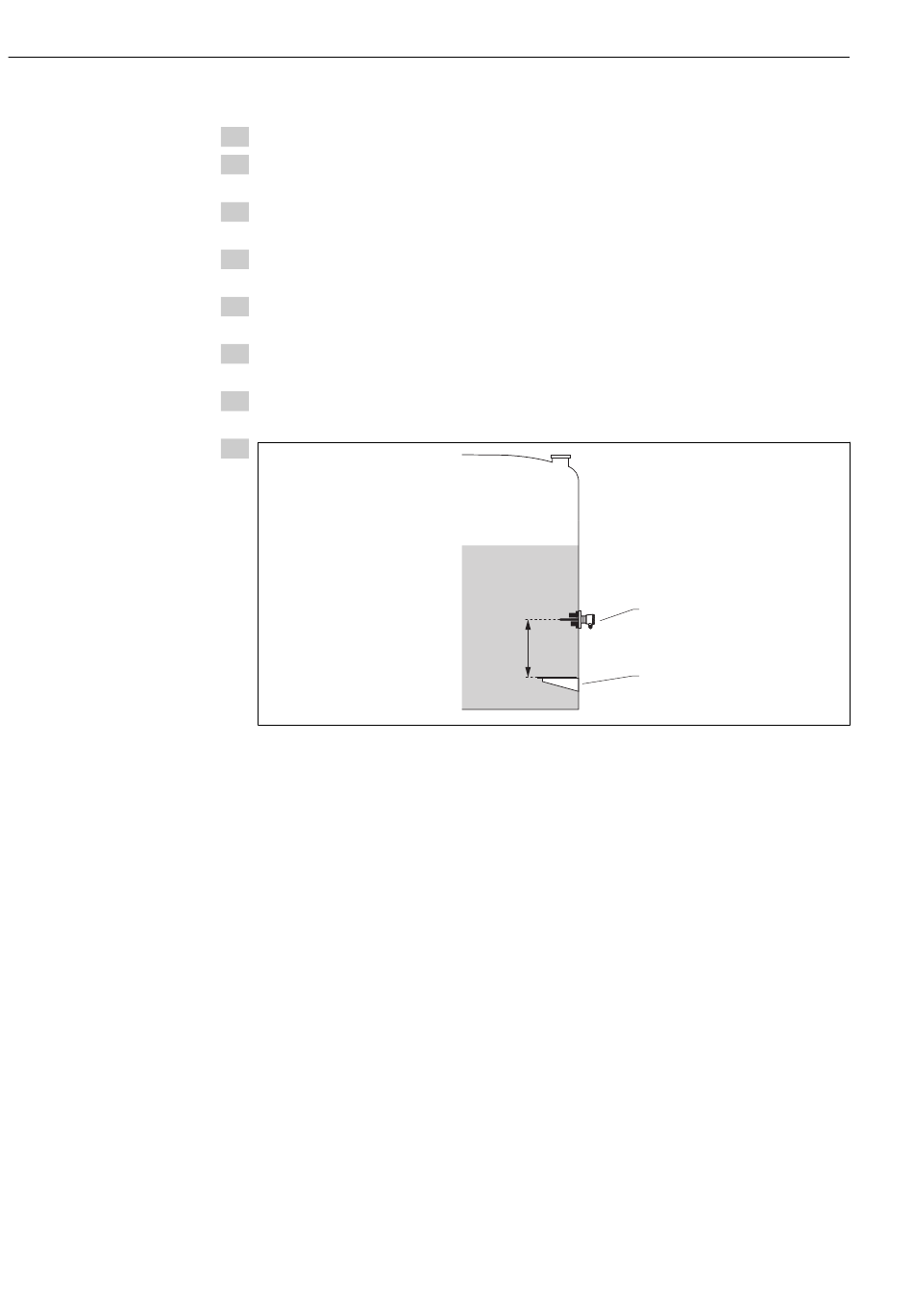

1 Datum plate
2 RTD
3 Probe position (→  194)
Go to the Probe position parameter and enter the mounting position of the RTD
(measured from the datum plate).
 This parameter, in conjunction with the measured level, determines whether the
measured temperature refers to the product or to the gas phase.
2
3
1
Proservo NMS83
A0029269
