Installation
24

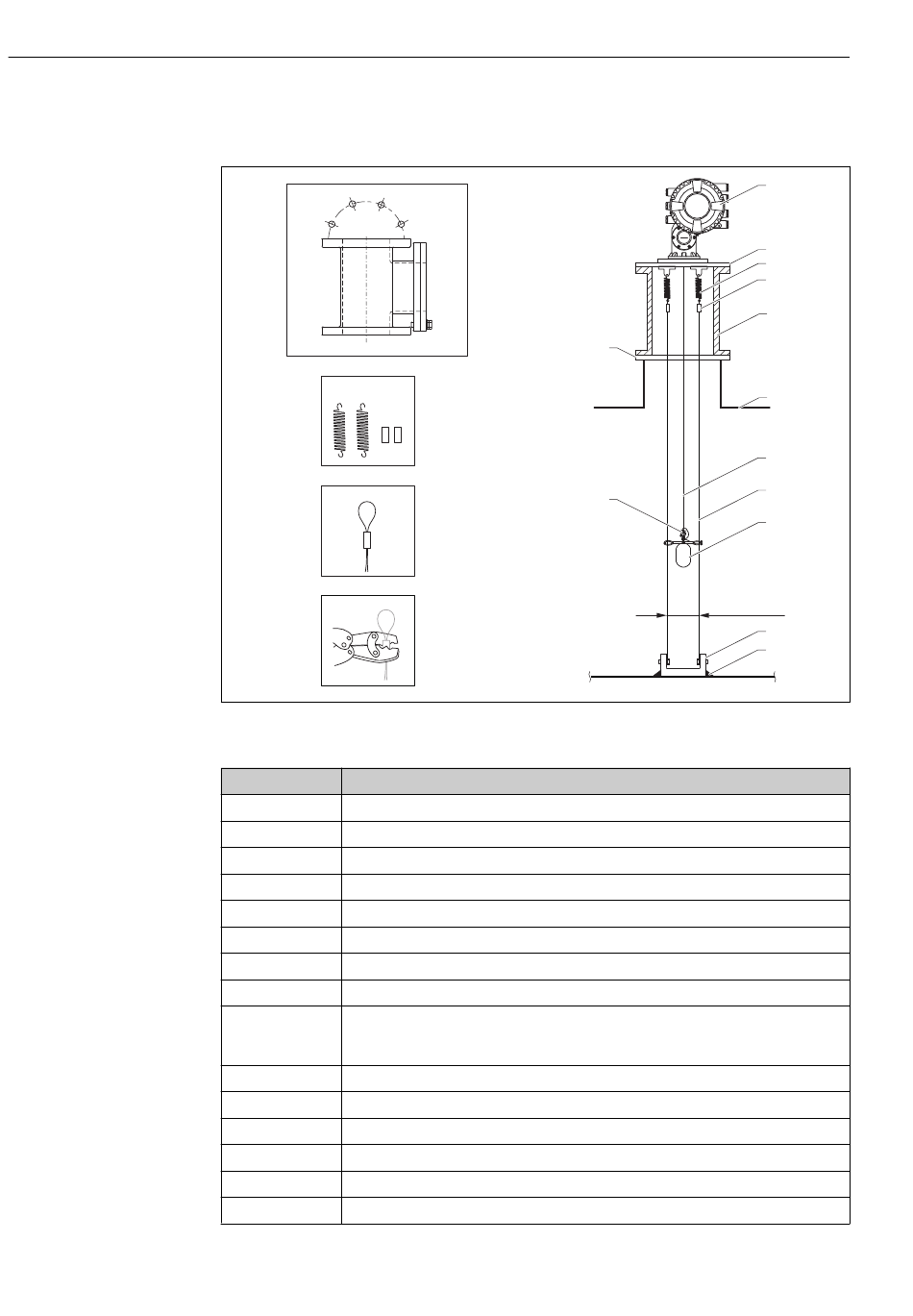

5.1.4 Mounting with guide wires
It is also possible to guide the displacer with guide wires to prevent swinging.
A
B
C
D
 9 Guide wire; dimensions mm (in)
No.
A Calibration chamber
B Spring and sleeve
C Guide wire sleeve
D Crimp tool
1 NMS8x
2 Reducer plate
3 Spring, SUS304
4 Sleeve, SUS316
Calibration chamber for maintenance
5 NHC4HP for high pressure, SCS13 equivalent to SUS304
NHC4LP for low pressure, SCS13 equivalent to SUS304
6 Tank
7 Measuring wire
8 Guide wire, SUS316
9 Displacer
10 Anchor hook plate, SUS304
11 Welding point
13
12
Description
1) 2)
Proservo NMS83
1
2
3
4
5
6
7
8
9
100 (3.94)
10
11
A0026819
