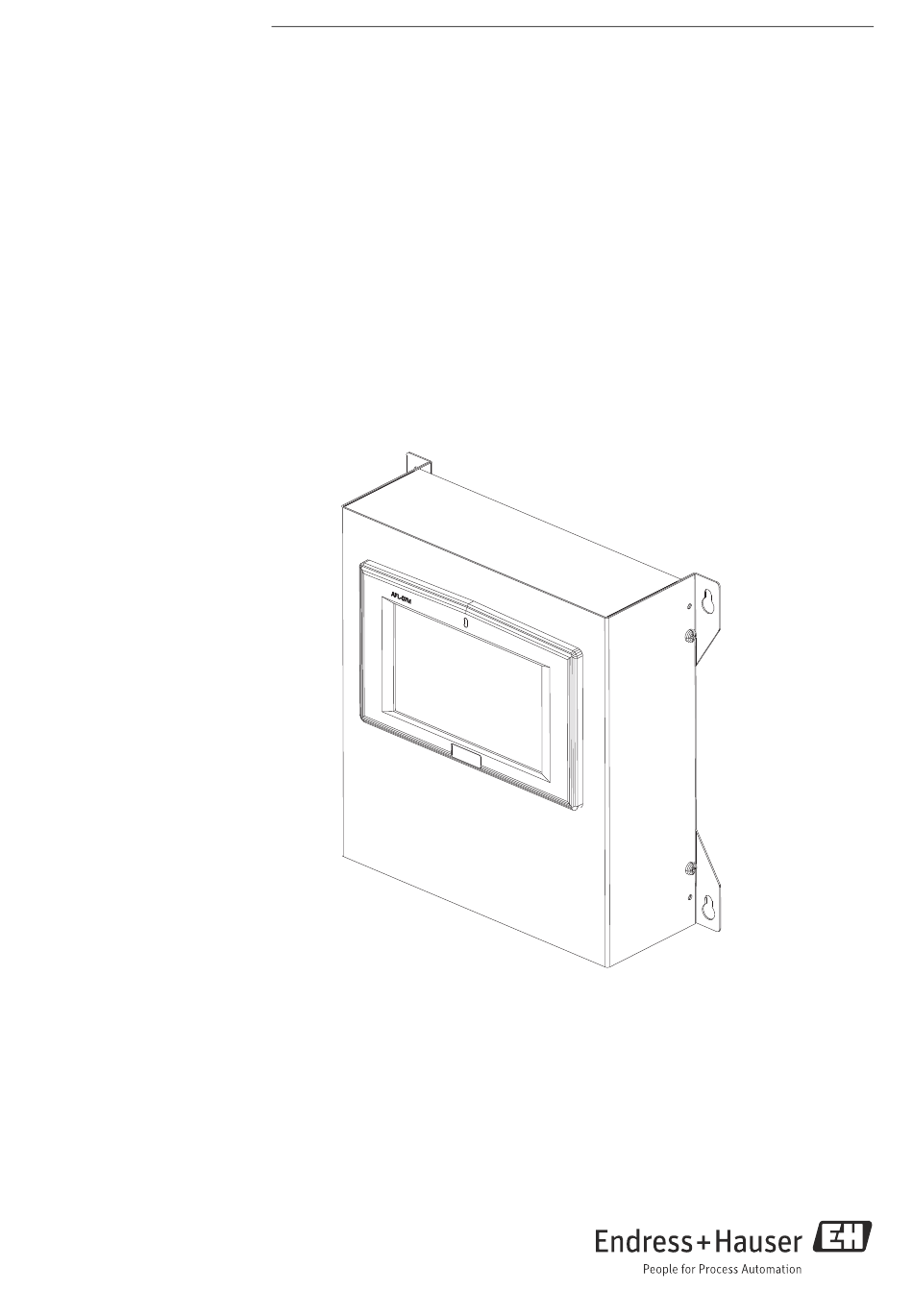

- Page 1 Products Solutions Services BA01287G/00/EN/01.14 71244015 Valid as of software version: 3.0.10 Operating Instructions Tankvision Multi Scan NXA83 Installation and Maintenance manual Weights and Measures Additions...
-
Page 2: Table Of Contents
Printing ....... . . 14 Index ......16 Endress+Hauser... -
Page 3: Document Information
This symbol contains information on procedures and other facts which do not result in personal injury. A0011192-EN Symbols for certain types of information Symbol Meaning Indicates additional information. A0011193 Reference to page Refers to the corresponding page number. A0011195 ... Series of steps Result of a sequence of actions A0018373 Endress+Hauser... -
Page 4: Documentation
BA01288G/00 Operation manual BA01290G/00 Installation and Maintenance manual BA01291G/00 Configuration manual BA01292G/00 DCC Configuration manual • Multi Scan NXA83 BA01289G/00 OPC Tank Data Server manual BA01297G/00 Web Client System Operation manual BA01287G/00 Weights and Measures Additions BA01296G/00 Redundancy manual Endress+Hauser... -
Page 5: Basic Safety Instructions
IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves. Endress+Hauser can be contacted to provide support in performing this task. Designated use 2.3.1... -
Page 6: Workplace Safety
The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark. -
Page 7: Overview
This manual describes the additional features of the Weights and Measures version of the Multi Scan NXA83, designated as Tankvision Multi Scan NXA83 W&M. The standard features of the Multi Scan NXA83 are described in the Tankvision Multi Scan NXA83 I&M manual. - Page 8 Overview Tankvision NXA83_RackMount_Title 19 in Rack Mount Endress+Hauser...
-
Page 9: W&M Functionality
To unlock a Multi Scan NXA83: Break the seals on the top right and bottom left of the cover. These seals will consist of lockwire through a hole in the cover and chassis (see diagram of hole location in Locking section). Endress+Hauser... - Page 10 W&M Functionality Tankvision NXA83_WallMount_Removing-Cover_Seals Loosen the four screws indicated below and remove the cover. NXA83_WallMount_Removing-Cover_Screws Remove the lock device (a 10 way IDC connector) plugged into connector CN14 on the LX2 mother board. Endress+Hauser...
-
Page 11: Locking The System
Insert the lockwires in the top right and bottom left of the cover and seal. The wires should be inserted through the cover and the base plate, thereby making it impossible to remove the cover without breaking the seal. Endress+Hauser... -
Page 12: Rear Access Panel
It does not need to be unlocked to carry out any database modifications etc. The rear panel will be fixed with four screws capable of being lockwired. To lock the panel, insert a lockwire through the four screws and apply a seal to the lockwire. Endress+Hauser... -
Page 13: W&M Display Features
Data is stored, i.e. Level when servo gauge is not following level etc. Data is not calibrated (not W & M approved) All values calculated from primary inputs (such as volumes, mass etc.) will inherit any status values from the primary data used in the calculation. Endress+Hauser... -
Page 14: Printing
The system should not be considered W&M approved if this message is displayed. When W&M locked the status message will read "WM APPROVED". Printing A printer may be connected as normal to the USB ports or via the network. Endress+Hauser... - Page 15 Tankvision W&M Functionality The same set of status tags will be printed against each data item as shown on the 7 in display (→ ä 13 ). NXA83_Weights&Measures_Inventory-Report Endress+Hauser...
-
Page 16: Index
Lock Status display ......14 W&M Functionality....... . 9 Endress+Hauser... - Page 17 Tankvision Endress+Hauser...
- Page 18 71244015 www.addresses.endress.com...
