Proservo NMS83
Endress+Hauser
No.
12 Ring, SUS316
13 Flange
1) Reducer pipe for low pressure: 6 mm (0.236 in)
2) Reducer flange material is selectable from SS400 and SUS304.
Guide wire installation
Guide wire installation procedure
1. Install NMS8x [1] on the reducer plate.
2. Perform calibration steps (→  73) before the displacer [3] is attached to the
guide wires.
 Make sure that the displacer does not touch the guide wires during calibration.
This could be done by mounting the NMS8x to the reducer plate [2] prior to
fitting the guide wires [4].
Perform calibration steps so that displacer does not touch the guide wires if the guide
wires are already installed to the reducer plate.
3. Secure the guide wires to the hooks of the springs [5].
4. Secure the springs to the reducer plate.
5. Put the guide wires through the displacer guide ring [6] and set the displacer.
This completes the guide wire installation procedure.
1. 2.

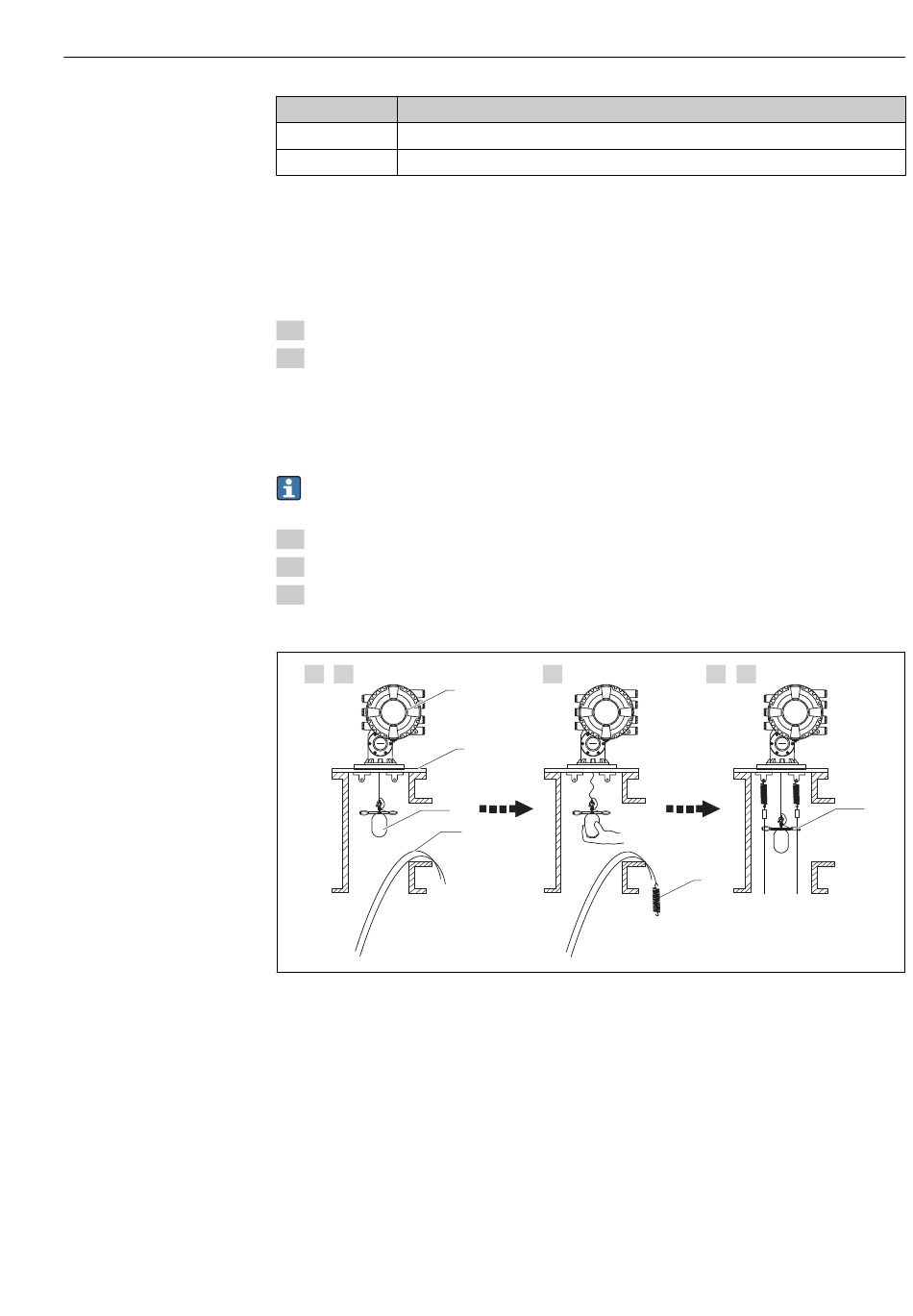

 10 Guide wire installation
1 NMS8x
2 Reducer plate
3 Displacer
4 Guide wires
5 Springs
6 Displacer guide ring
Description
3.
1
2
3
4
Installation
4. 5.
6
5
A0026887
