Tank profile measurement
Setting tank profile procedure
The tank profile operation measures a profile starting at the physical tank bottom up to
the liquid level.
1. Navigate to: Setup → Advanced setup → Sensor config → Profile density → Profile
density offset distance
2. Input the desired value for the Profile density offset distance parameter.
 The value of the profile density offset distance defines the distance between the
start point (tank bottom in this case) and the first measurement point.
3. Navigate to: Setup → Advanced setup → Sensor config → Profile density → Profile
density interval
4. Input the desired value for the Profile density interval parameter.
This completes the setting tank profile procedure.

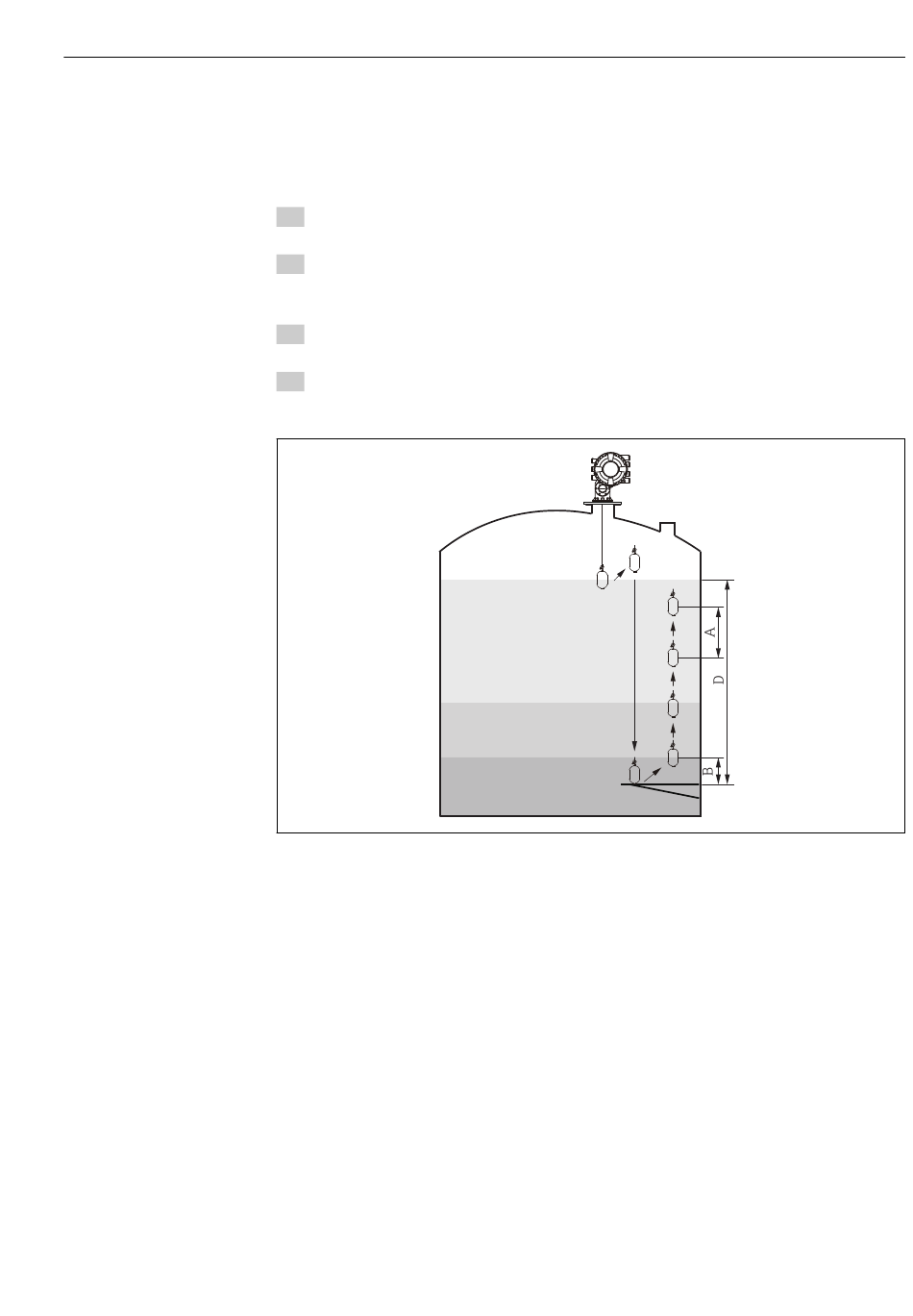

 46 Tank profile movement (The numbers show the order of the displacer movement.)
A Profile density interval
B Profile density offset distance
C Datum plate
D Tank profile range
2
1
7
6
5
4
3
C
