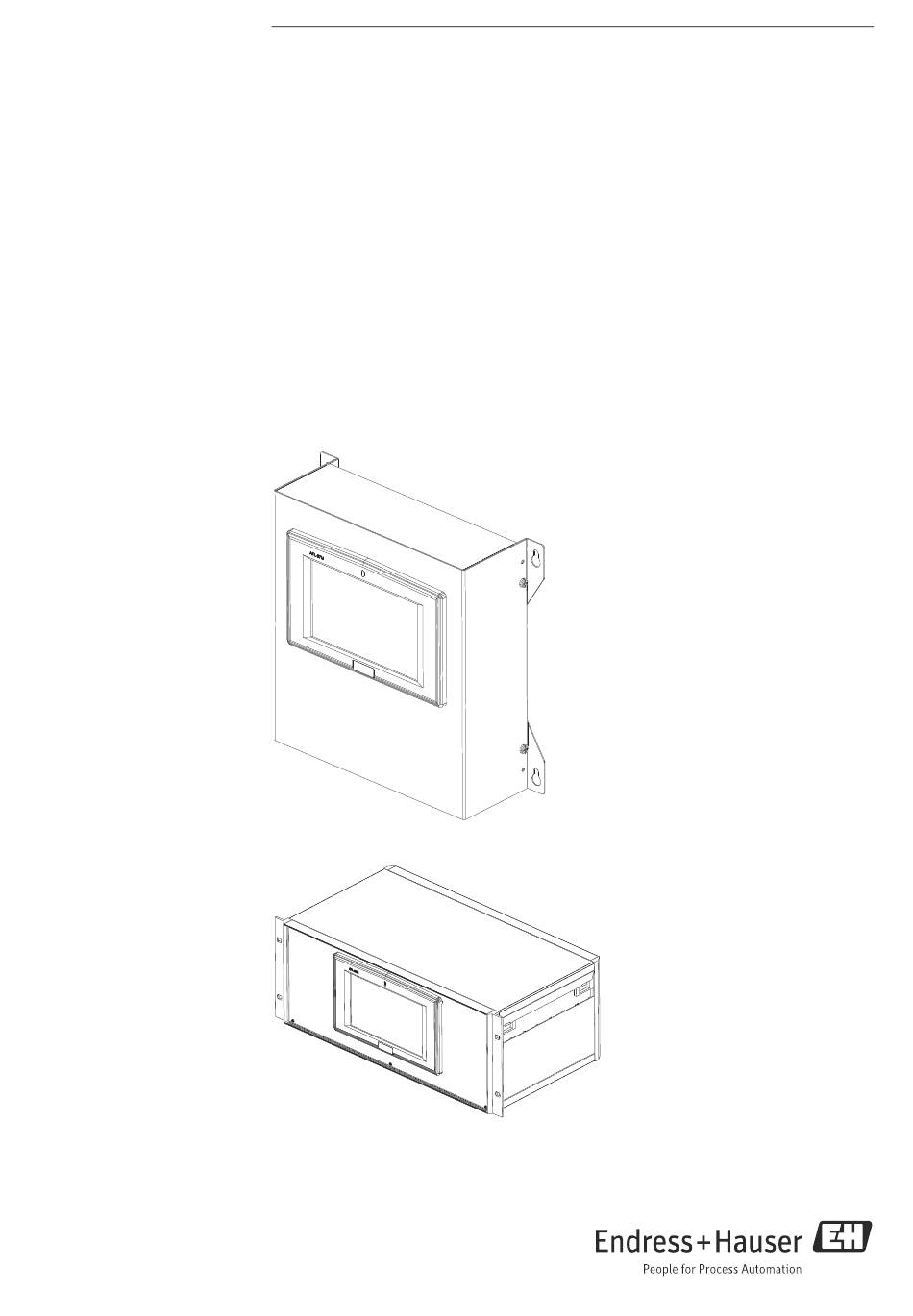

- Page 1 Products Solutions Services BA01288G/00/EN/01.14 71244020 Valid as of software version: 3.0.10 Operating Instructions Tankvision Multi Scan NXA83 Local display Operation manual...
-
Page 2: Table Of Contents
Return ......23 Index ......24 Endress+Hauser... -
Page 3: Document Information
Beside basic PC operating knowledge no special training is needed to perform the Tank Gauging System operations. Nevertheless it is recommended receiving a training on the system by Endress+Hauser. Version history Document version Valid for SW version Changes to the previous version BA01288G/00/EN/01.14... -
Page 4: Documentation
BA01288G/00 Operation manual BA01290G/00 Installation and Maintenance manual BA01291G/00 Configuration manual BA01292G/00 DCC Configuration manual • Multi Scan NXA83 BA01289G/00 OPC Tank Data Server manual BA01297G/00 Web Client System Operation manual BA01287G/00 Weights and Measures Additions BA01296G/00 Redundancy manual Endress+Hauser... -
Page 5: Basic Safety Instructions
IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves. Endress+Hauser can be contacted to provide support in performing this task. Designated use 2.3.1... -
Page 6: Workplace Safety
The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark. -
Page 7: Identification
W@M Device Viewer (www.endress.com/deviceviewer) Nameplate Tankvision Order code: Ext. Order code: Ser.-No.: 250002972-- nameplate Address of manufacturer Device name Order code Extended order code (Ext. ord. cd.) Serial number (Ser. no.) Degree of protection Barcode CE mark Admissible ambient temperature Supply voltage Endress+Hauser... -
Page 8: Order Code And Device Version
Registered trademark of Sun Microsystems, Inc. ® ® Mozilla Firefox Registered trademark of the Mozilla Foundation Enraf, Honeywell, Rosemount, Emerson, Saab, L&J, VAREC, GPE are registered trademarks and trademarks of these organizations and companies. All other marks are property of their respective owners. Endress+Hauser... -
Page 9: Introduction

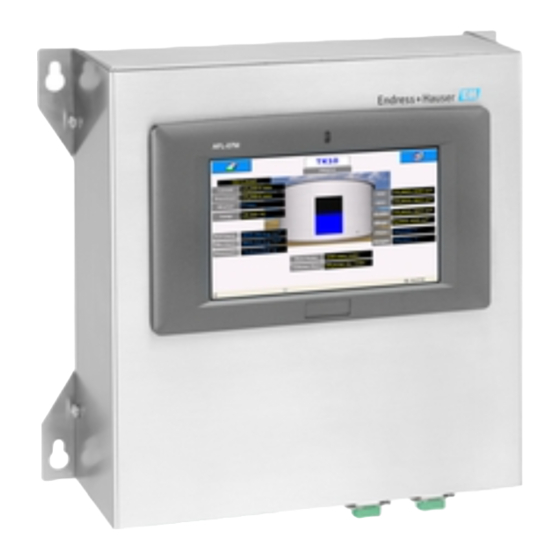

Two versions of the Multi Scan NXA83 are available, Wall Mount and 19 in Rack Mount. Both versions have the option to have a 7 in touch screen built into the front of the device to view and navigate through the different display options. NXA83_Wall-Mount Wall Mount NXA83_Rack-Mount 19 in Rack Mount Endress+Hauser... -
Page 10: Operation
This will take around three minutes, during which time a number of windows boot messages will be displayed before automatically logging into the user account, at which point the Endress+Hauser wait message will be displayed. NXA83_E+H_Wait_Message The boot will be complete when the GridView display is shown. At this point the system is fully operational, with all interfaces active (master and slaves). -
Page 11: Status Bar
Screens menu. Click on a button to display the menu list. Clicking on the button again will remove the list. NXA83_Display_Grid-View_Both-Menus Each drop down list will display up to five items. Endress+Hauser... - Page 12 For example clicking on the Single Tank screens button will display a list of all configured single tank screens available. NXA83_Display_Grid-View_Single-Tank-Overview-Menus Click on the buttons to select more display items. Click on the item in the pop-up menu to change the main display. Endress+Hauser...
- Page 13 Tankvision Operation NXA83_Display_Single-Tank The left hand drop down list displays all tanks in the database, and allows the user to select a tank to show in the single tank display. NXA83_Display_Single-Tank_Tank-Menu Endress+Hauser...
-
Page 14: Grid View
• Brown: For those tanks that have a falling level • Blue: For those tanks that have a rising level The GridView may also be configured to display column totals for certain field types. The fields totalized will be: • Volume fields • Mass fields Endress+Hauser... -
Page 15: Single Tank
Single Tank Screens. Various additional screens may be configured. NXA83_Display_Single-Tank_2 The formatting of the data displayed in a Single Tank display, with regard to validity of data or manual data, has no fixed format, and can be configured to suit any site requirement. Endress+Hauser... - Page 16 Operation Tankvision The default formatting in the screens as shipped from Endress+Hauser is as follows: • Invalid Data: The appropriate diagnostic number will be shown preceded by "DN" and will be displayed with a red background. • Manual Data: The data will be displayed in green, with a black background.
- Page 17 NXA83 is rebooted the new value will remain. Calculated fields, such as Volumes, Mass etc., cannot be manually entered. If they are displayed in green it is because one (or more) of the calculation parameters is in manual mode. Endress+Hauser...
- Page 18 Operation Tankvision 5.5.3 Multi-Element Display In the default configuration there is a second Single Tank screen available, called "Multi Elements", which can be used to view multi-element temperatures from gauges that support that function. NXA83_Display_Grid-View_Single-Tank-Overview-Menus_Multi-Elements NXA83_Display_Multi-Element-Temperature-View Endress+Hauser...
-
Page 19: Reports
Otherwise a report may be viewed on screen using the Preview option. Clicking on a report will display the "Print Report" menu. NXA83_Display_Single-Tank_Print-Inventory-Report Clicking the Preview button will display the report on the Multi Scan NXA83 screen whereas clicking the Print button will send the report directly to the printer. Endress+Hauser... -
Page 20: Alarms
To scroll through all active alarms, use the buttons. The alarm buffer holds a maximum of 100 active alarms. If this is exceeded the oldest alarms will be lost. To display the alarm window at any time, click on the icon in the Screens menu. Endress+Hauser... -
Page 21: Scheduling
To login, click on the button (right hand button) then click on Select the option and select the user account from the list. NXA83_Display_Single-Tank_User-Accounts The password entry screen will be displayed. Endress+Hauser... - Page 22 Enter the correct password using the onscreen keyboard and click OK. The current login account will be displayed on the status bar at the bottom of the screen. NXA83_Display_Single-Tank_Logout Select the button from the screens menu to log out. Endress+Hauser...
-
Page 23: Return
The device must be returned if repairs or a factory calibration are required, or if the wrong device has been ordered or delivered. According to legal regulations, Endress+Hauser, as an ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with medium. -
Page 24: Index
Wall Mount ........9 Endress+Hauser... - Page 25 Tankvision Endress+Hauser...
- Page 26 71244020 www.addresses.endress.com...
