Proservo NMS83
Endress+Hauser
Manual profile measurement
Setting manual profile procedure
The manual profile operation measures a profile starting at a manually specified level up
to the liquid level.
1. Navigate to: Setup → Advanced setup → Sensor config → Profile density → Manual
profile level
2. Input the desired value for the Manual profile level parameter.
3. Navigate to: Setup → Advanced setup → Sensor config → Profile density → Profile
density offset distance
 For the manual profile, the level offset can be set to 0 so that the first point can
be measured at the manual profile level.
4. Input the desired value for the Profile density offset distance parameter.
 The value of the profile density offset distance defines the distance between the
start point (tank bottom in this case) and the first measurement point.
5. Navigate to: Setup → Advanced setup → Sensor config → Profile density → Profile
density interval
6. Input the desired value for the Profile density interval parameter.
This competes setting manual profile.

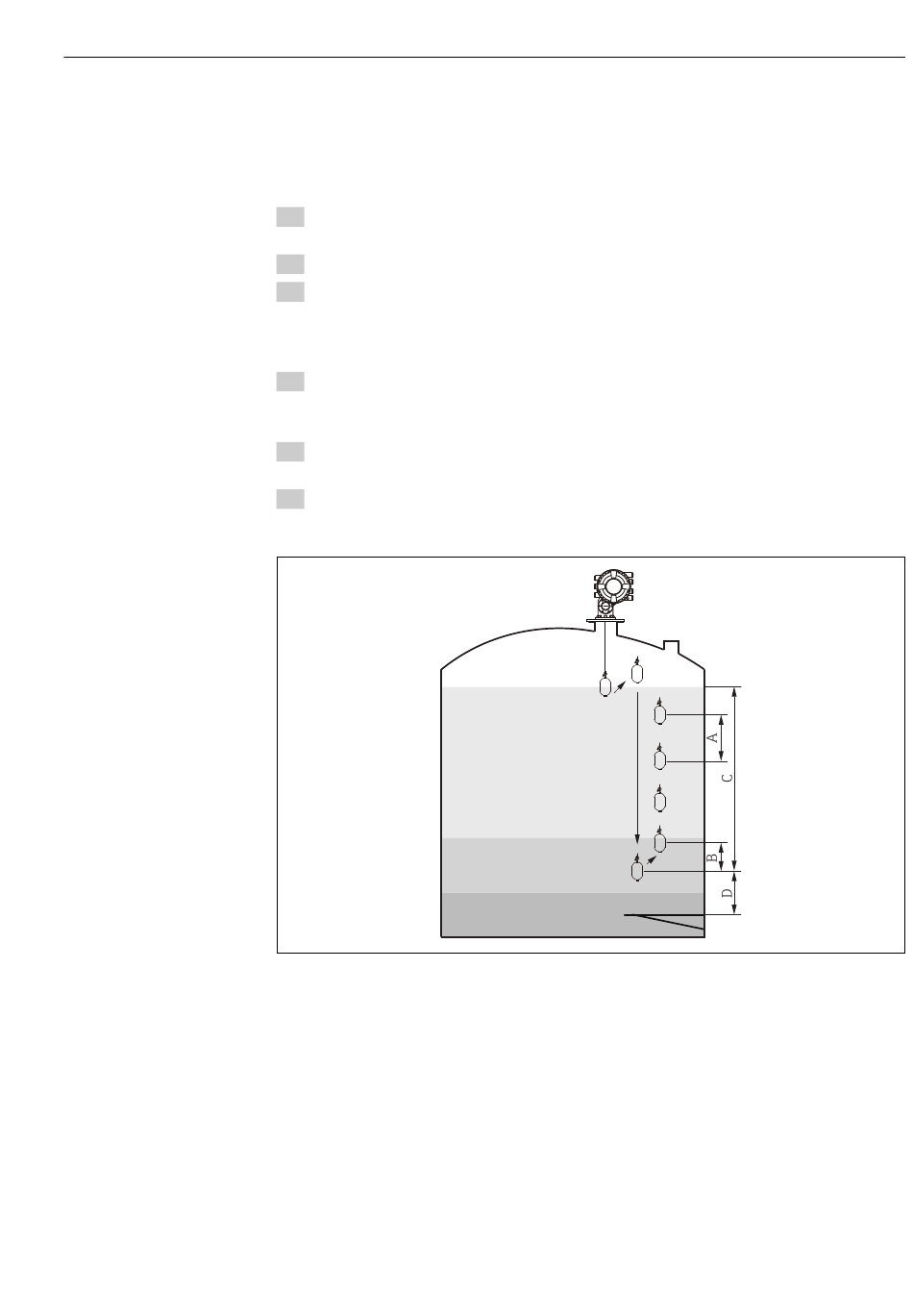

 48 Manual profile movement (The numbers show the order of the displacer movement.)
A Profile density interval
B Profile density offset distance
C Manual profile range
D Manual profile level
2
1
7
6
5
4
3
Commissioning
A0029112
93
