Commissioning
92
Interface profile measurement
Setting interface profile procedure
The interface profile operation measures a profile starting at the upper interface level up
to the liquid level.
1. Navigate to: Setup → Advanced setup → Sensor config → Profile density → Profile
density offset distance
2. Input the desired value for the Profile density offset distance parameter.
 The value of the profile density offset distance defines the distance between the
start point (tank bottom in this case) and the first measurement point.
3. Navigate to: Setup → Advanced setup → Sensor config → Profile density → Profile
density interval
4. Input the desired value for the Profile density interval parameter.
This completes setting interface profile procedure.

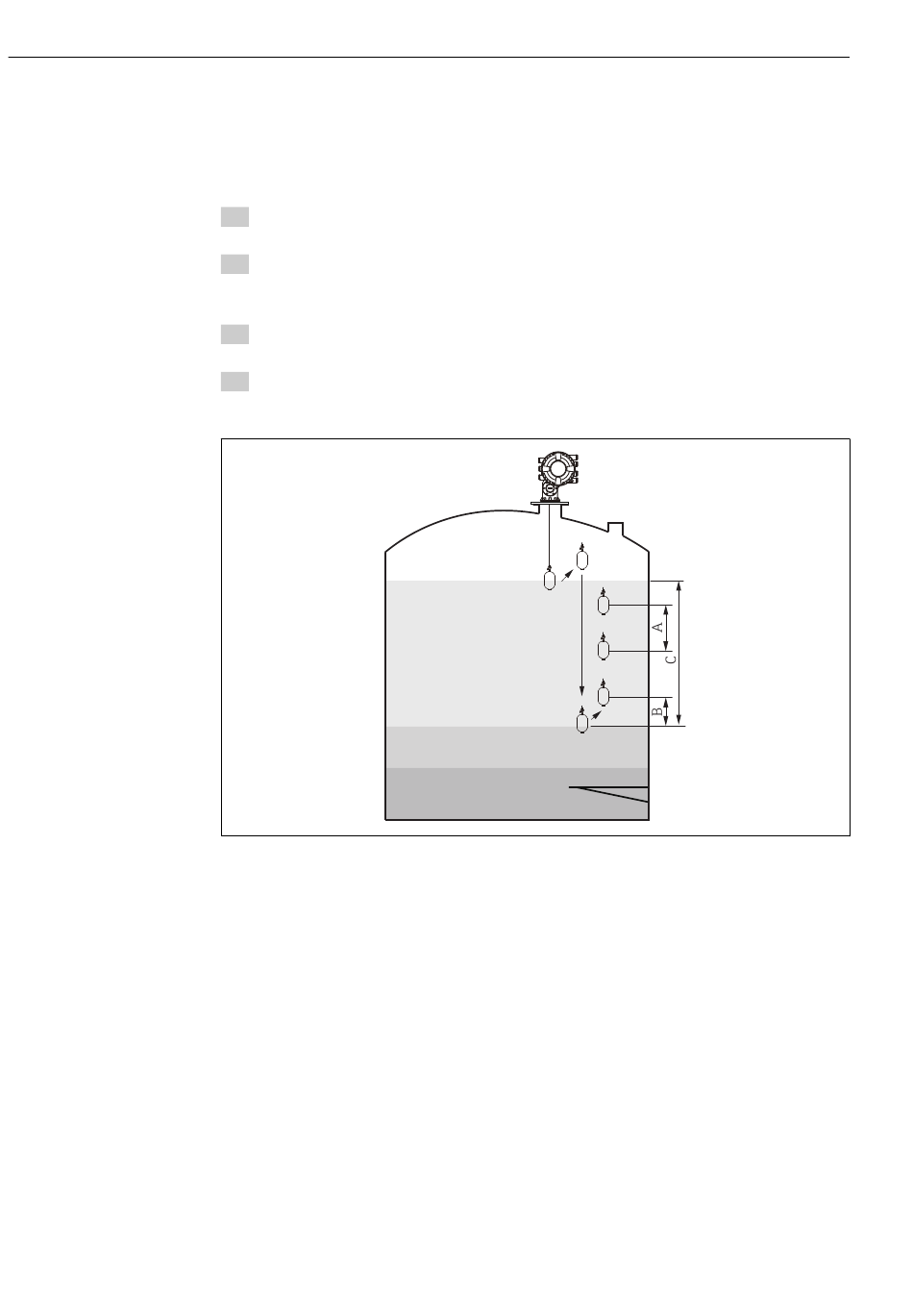

 47 Interface profile movement (The numbers show the order of the displacer movement.)
A Profile density interval
B Profile density offset distance
C Tank profile range
2
1
6
5
4
3
Proservo NMS83
A0029110
