11.3

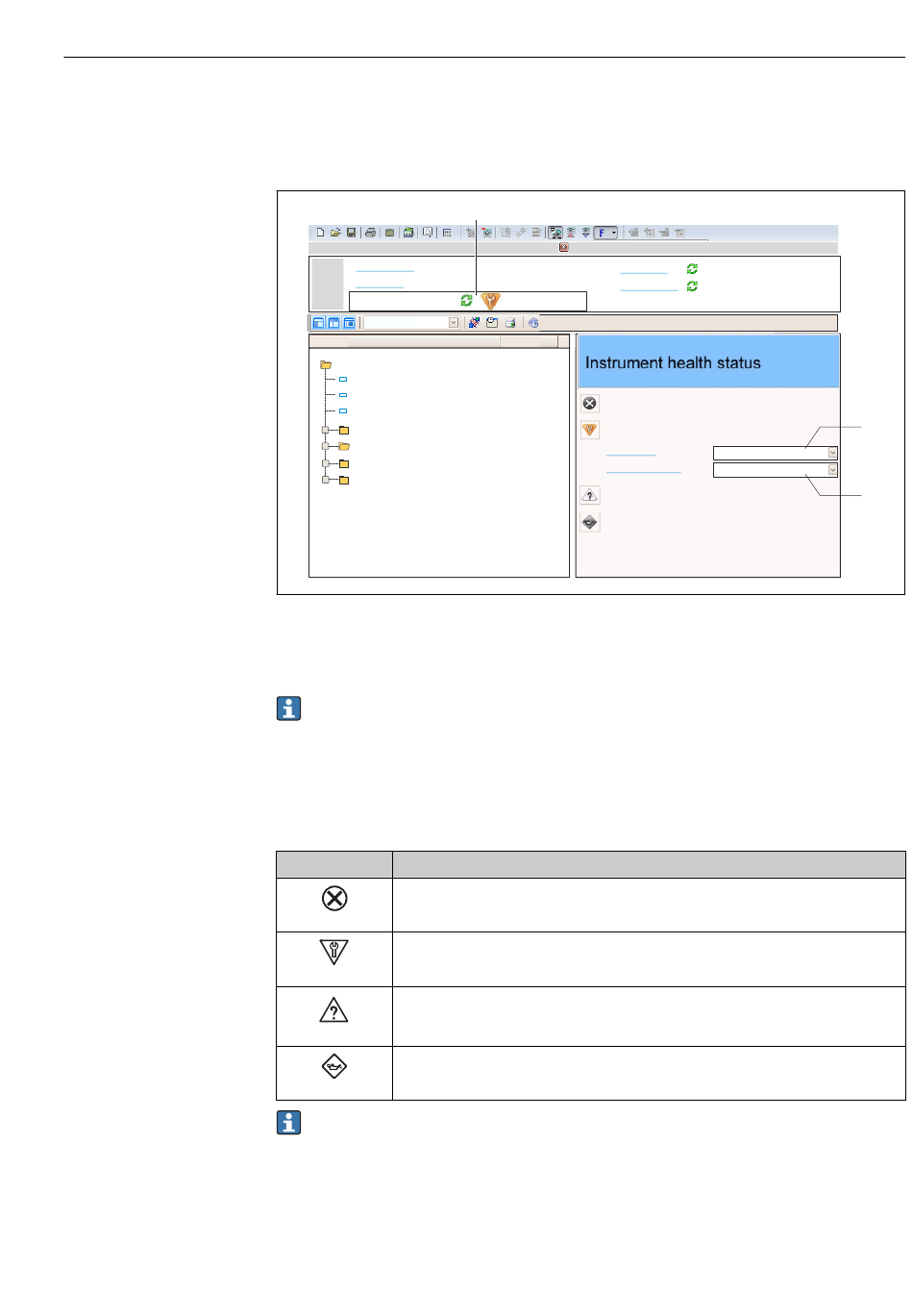

Diagnostic information in FieldCare

Any faults detected by the measuring device are displayed on the home page of the
operating tool once the connection has been established.
Xxxxxx/.../.../
Device name:
Xxxxxxx
Device tag:
Xxxxxxx
Status signal:
Xxxxxx
Diagnostics 1:
P
Remedy information:
P
Access status tooling:
P
+ Operation
+ Setup
+ Diagnostics
+
Expert
1 Status area with status signal
2 Diagnostic information
3 Remedial measures with Service ID
Furthermore, diagnostic events that have occurred can be viewed in the Diagnostic
list submenu.
11.3.1 Status signals
The status signals provide information on the state and reliability of the device by
categorizing the cause of the diagnostic information (diagnostic event).
Symbol Meaning
Failure
A device error has occurred. The measured value is no longer valid.
A0017271
Function check
The device is in service mode (e.g. during a simulation).
A0017278
Out of specification
The device is operated outside its technical specification limits (e.g. outside the process
temperature range)
A0017277
Maintenance required
Maintenance is required. The measured value is still valid.
A0017276
The status signals are categorized in accordance with VDI/VDE 2650 and NAMUR
Recommendation NE 107.
1
Mass flow:
Volume flow:
Function check (C)
C485 Simu...
Deactivate...
Failure (F)
Mainenance
Function check (C)
Diagnostics 1:
Remedy information:
Out of spezification (S)
Maintenance required (M)
Diagnostics and troubleshooting
kg/h
12.34
12.34 ³
m /h
C485 Simulation measured vari...
Deactivate Simulation (Service...
2
3
A0021799-EN
119
