Measuring with the Maxor

Setting up an RTK Rover

3-18 Maxor Operator's Manual
Use the following steps to set up an RTK Rover station. You should
already have programmed the modem.
1. Set up the Rover station receiver's antenna as described in "Maxor
Receiver Setup" on page 3-2.
2. Connect your receiver and computer. See "Connecting the Maxor
and a Computer" on page 2-9 for this procedure.
3. Click Configuration->Receiver.
4. Select the Positioning tab and set the Position Masks, Elevation
mask (degrees) parameter to 15 (Figure 3-10 on page 3-15).
5. Select the Rover tab and set the desired Positioning Mode
(Figure 3-13).

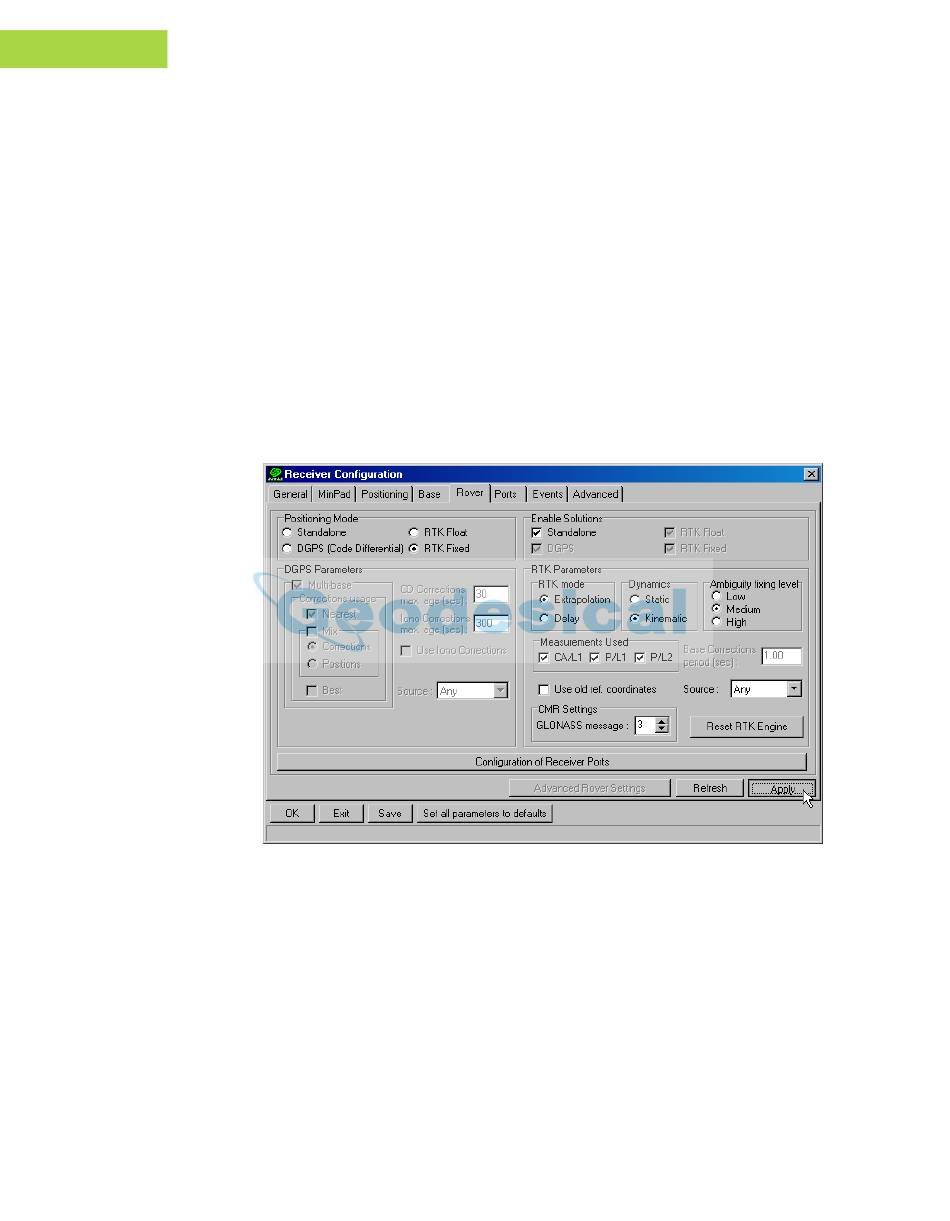

Figure 3-13. Rover Tab Configuration
Adjust the following RTK Parameters settings:
• Under RTK mode in the RTK Parameters section, choose either
Extrapolation for RTK (kinematic) or Delay for RTK (static).
–Extrapolation is for low-latency, high frequency output (>= 5 Hz)
RTK applications. The rover will extrapolate the base station's
carrier phase measurement corrections when computing the rover's
current RTK position.
–Delay is for 1 Hz high precision RTK applications. The Rover
RTK engine will compute either a delayed RTK position (for the
