Using MinPad

Using MinPad

The MinPad is a simple interface used to display and control data input and
output (Figure 4-1).

Power Key

Pressing the power key turns the receiver on and off.

Status LED

Reset Key

Pressing the reset key for about one second causes:
4-2 Maxor Operator's Manual
• When the receiver is on and no satellites are tracked, the STAT LED
will blink red.
• When satellites are tracked, the STAT LED will produce one blink for
each tracked satellite (green for GPS, orange for GLONASS).
• a hard reset of the receiver.
• the receiver to leave Zero Power Mode and return to Normal Mode.

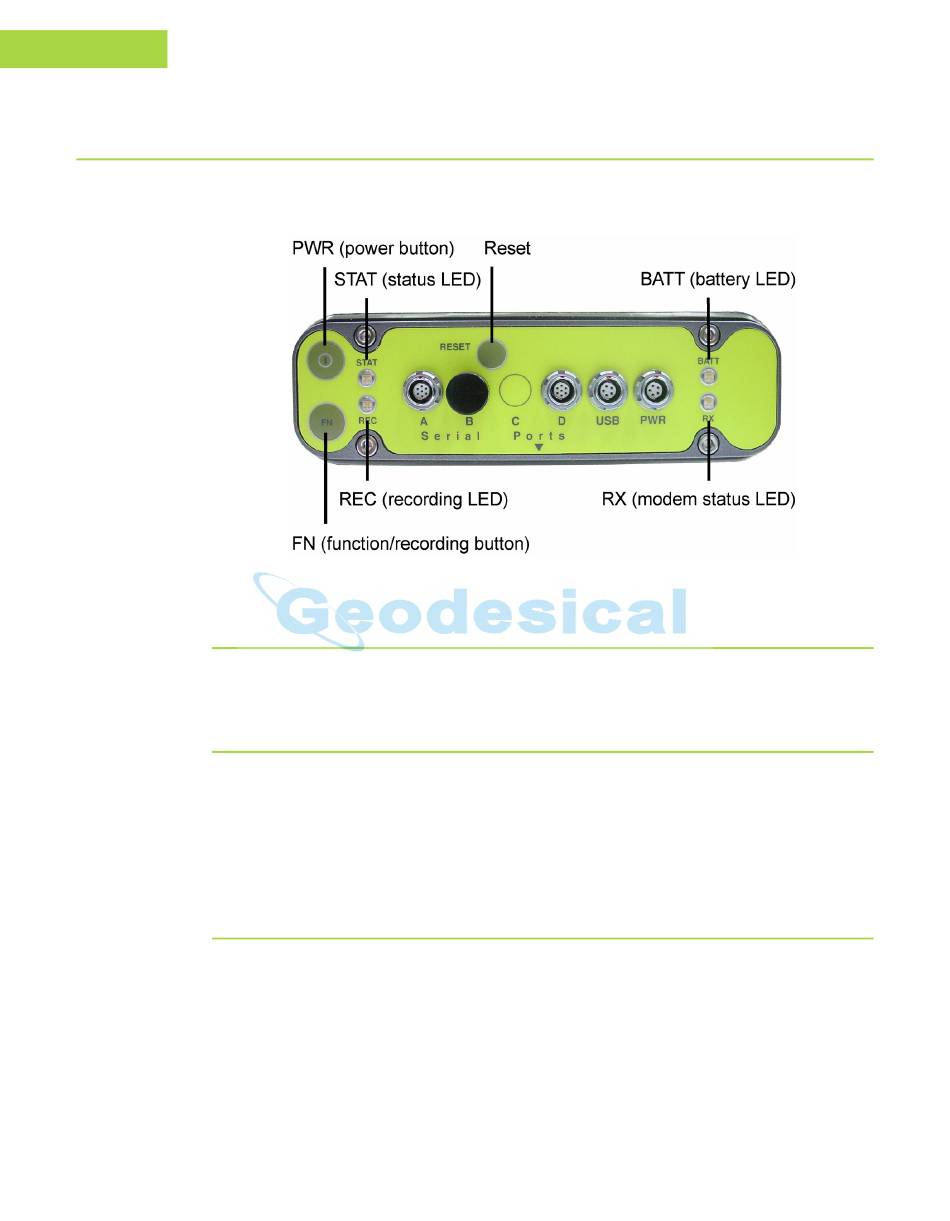

Figure 4-1. Maxor MinPad
