O P E R A T I O N
4
Loading New Firmware
Notice: You must load all three files when loading new firmware.
These files must come from the same firmware package.
1. In FLoader select the Device tab and set the Device Type as Receiver
2. Click Get from Device for device information (Figure 4-15).
3. Select the Program tab and set the Capture Method to Soft Break
4. Browse for and select the receiver board's RAM file and Flash file
5. Click Load and wait until 100% of the files load into your receiver.
4-24 Maxor Operator's Manual
• powbrd.ldr – the Power board RAM file
(Figure 4-15).

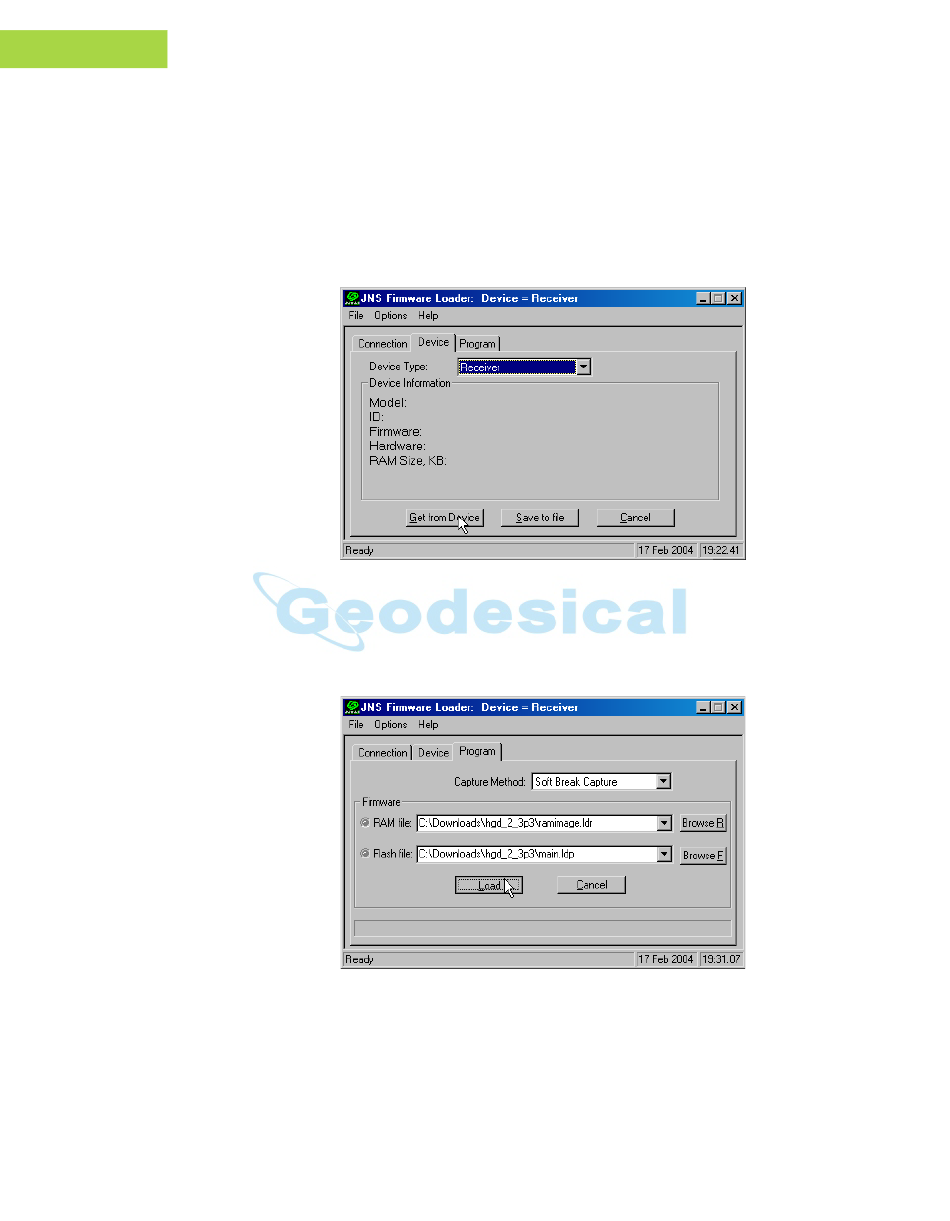

Figure 4-15. Set Device Type
Capture (recommended) (Figure 4-16).
Figure 4-16. Program Tab Settings
(Figure 4-16).
