1. Attach the antenna to a tripod or bipod and center it over the point at
which data will be collected.
2. Measure the antenna height. Antennas have two types of measurements:
• Vertical - measured from the marker to the antenna reference point
(ARP) located on the bottom of the antenna at the base of the mounting
threads.
• Slant - measured from the marker to the lower edge of the antenna's
slant height measure mark (SHMM).
MarAnt+ antenna offsets are shown in Figure 3-2; Offset measurements for
this antenna is given in Table 3-2.

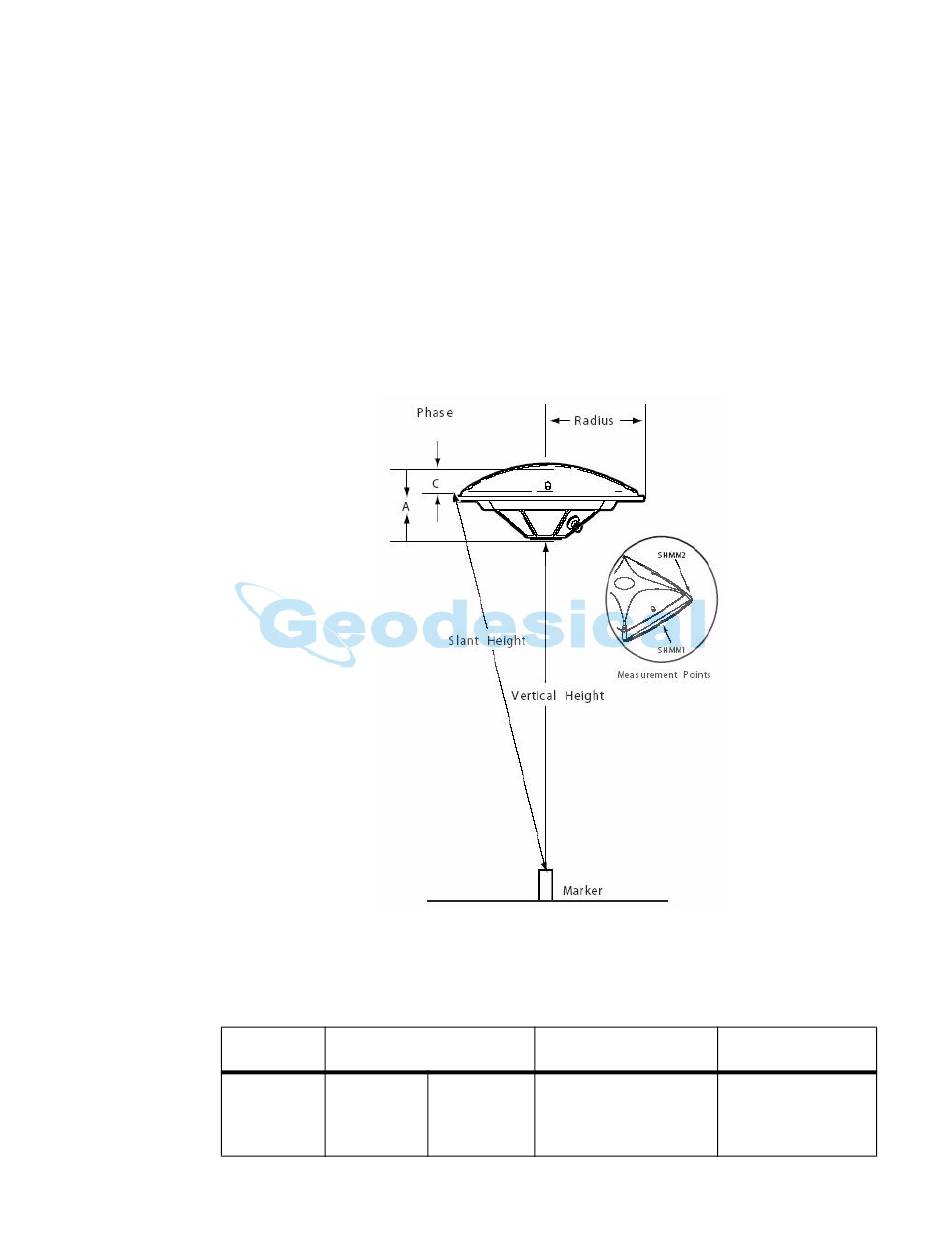

Figure 3-2. MarAnt+ Antenna Offset Measurements
Table 3-2. Antenna Offset Measurements
Antenna Radius
MarAnt+ SHMM1
69 mm
0.226 ft
A, Vertical Offset
SHMM2 54.3 mm (L1)
89.7 mm 60.5 mm (L2)
0.294 ft
S E T U P A N D M E A S U R I N G
Maxor Receiver Setup
C, Slant Offset
26.8 mm (L1)
33.0 mm (L2)
