Javad Maxor Operator's Manual page 94

S E T U P A N D M E A S U R I N G
3
Measuring with the Maxor
Notice: The reference geodetic coordinates you specify on this
tab relate to the antenna L1 phase center.
3-16 Maxor Operator's Manual

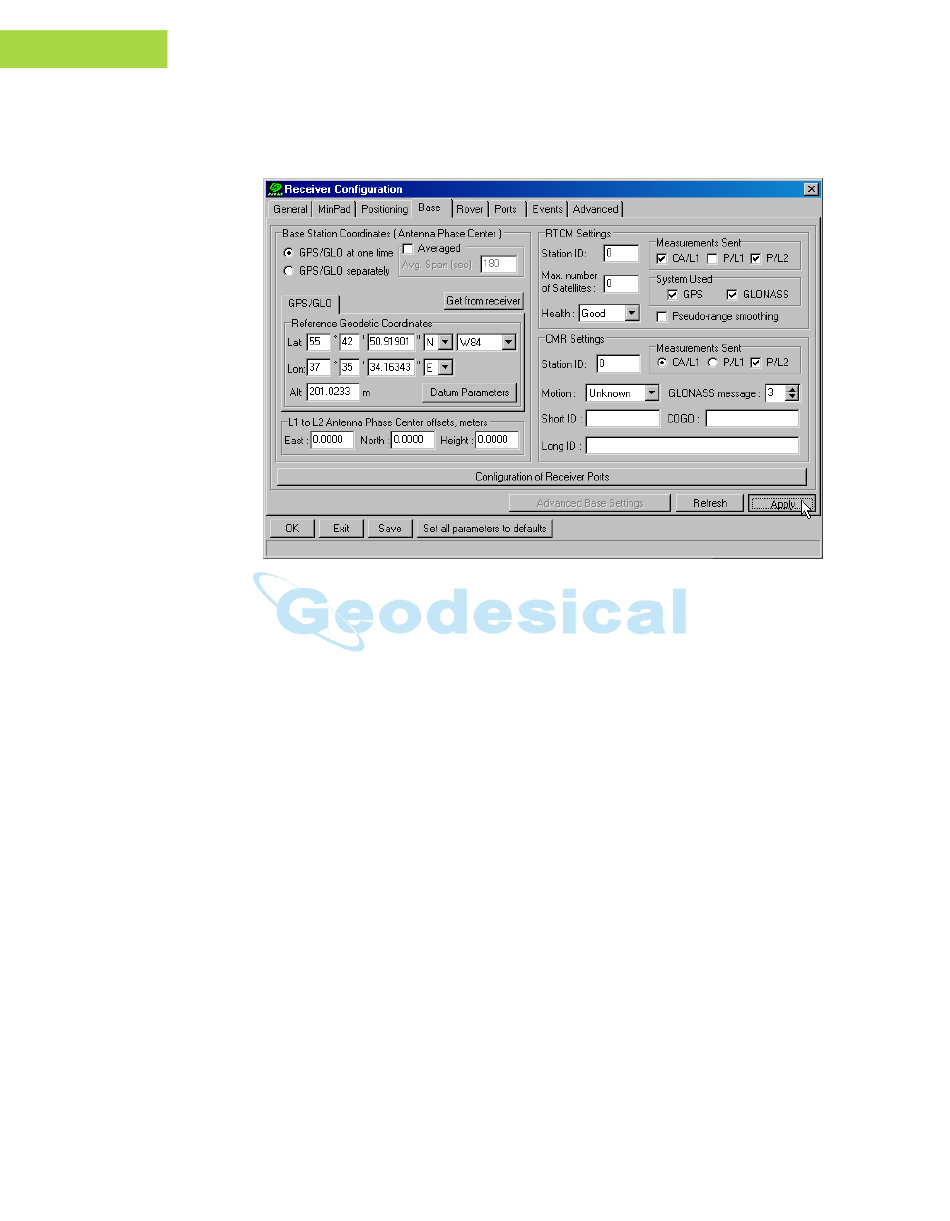

Figure 3-11. Base Tab Configuration
11. Select the Ports tab and set the following port parameters
(Figure 3-12 on page 3-17). Use serial port C for an internal PDL
and GSM modem.
• Output drop-down list – select type and format of differential
corrections.
• Period (sec) – enter interval at which receiver will generate
differential corrections.
• Baud rate drop-down list – select a baud rate (i.e., the rate at which
differential messages will be transmitted from receiver to modem).
www.javad.com
