A P P E N D I X
B
Receiver Specifications

USB Connector

B-14 Maxor Operator's Manual
Number Signal Name
6 TXD
7
The USB connector is a sealed receptacle, 5 pin, ODU p/n G80F1C-
T05QF00-0000 (Figure B-3).
Table B-10 gives the USB connector specifications.
Number Signal Name
1
2 USB_PWR
3 GND
4 USB D+
5 USB D-
Table B-9.
Dir
O Transmit data
Not used

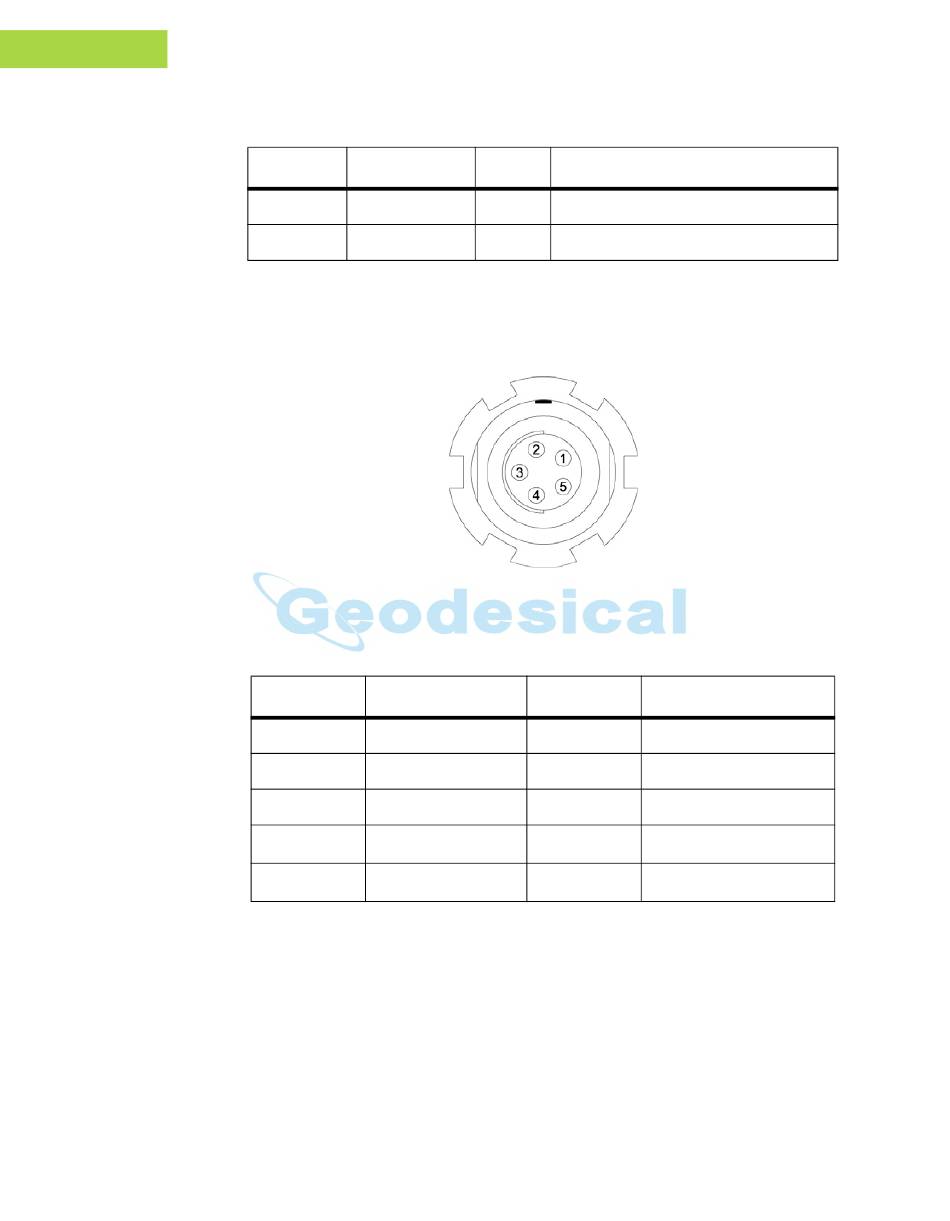

Figure B-3. USB Connector
Table B-10.
Dir
P
-
I/O
I/O
Details
Details
Not used
Bus power
Ground
Data plus
Data minus
