C O N F I G U R A T I O N
2
Radio Configuration
To access your single GSM/GPRS modem, you will need to use FieldView
or PCView.
FieldView users can configure the single GSM/GPRS modem through the
program's GUI whereas PCView users will have to execute all necessary
GRIL commands in manual mode.
How to configure a sigle GSM/GPRS Modem with PCView
Notice: Mandatory only when running the single GSM/GPRS
modem in master mode.
2-38 Maxor Operator's Manual
1. Connect your receiver and computer using an RS232 cable and
appropriate serial ports.
In addition, if your Maxor receiver has an USB port, you can use an
USB cable and a computer with the JNS USB driver installed (this
driver is available to download from Free Software section of
Support area on http://www.javad.com/).
2. Start PCView on your computer. Once a connection between the
receiver and computer has been established, change PCView to
Manual Mode (Figure 2-29).

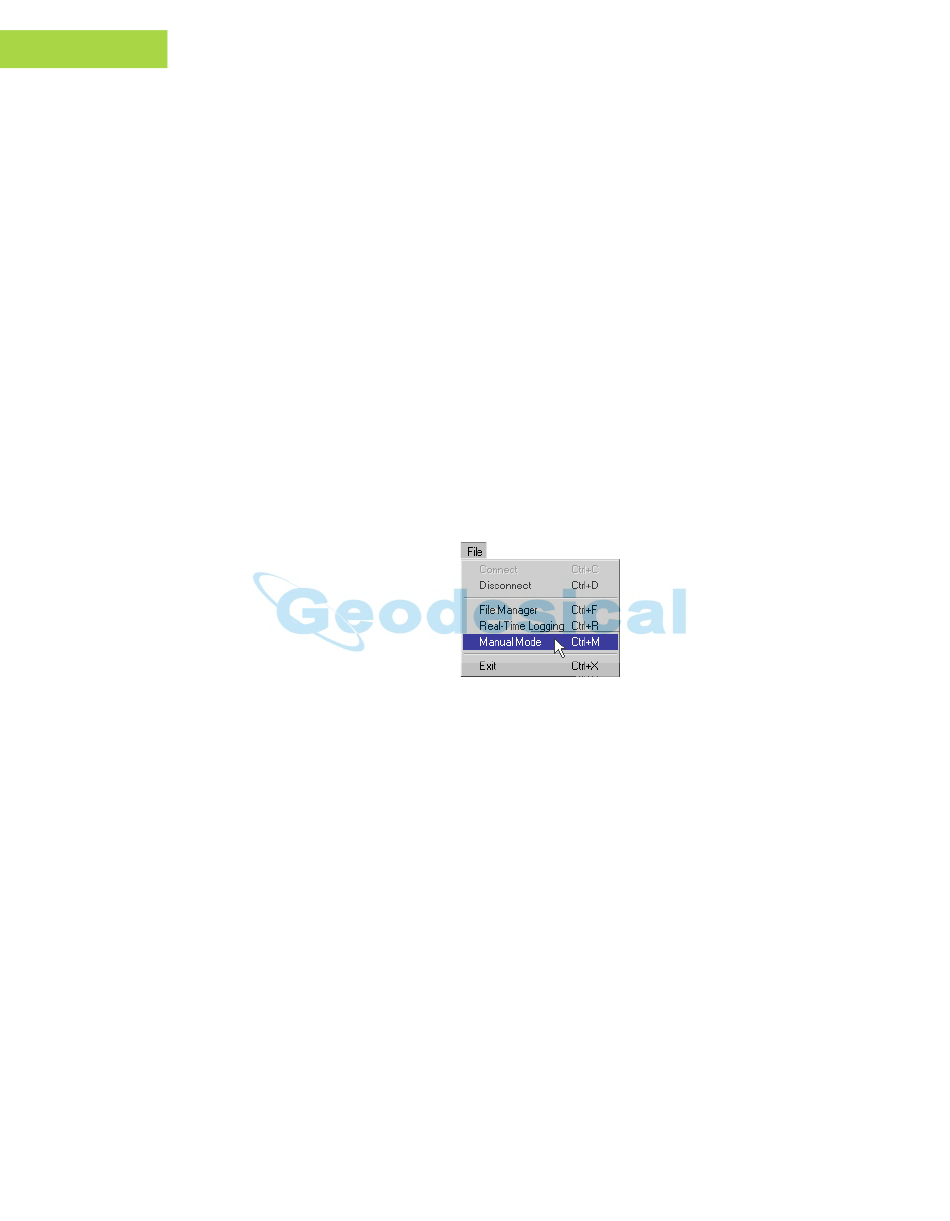

Figure 2-29. File->Manual Mode
3. Execute the following receiver commands from the Manual Mode
window:
• Command 1.
Set the internal GSM/GPRS modem to OFF:
%% set,/par/modem/c/mode,off
• Command 2.
Enter the SIM card's PIN:
%% set,/par/modem/c/pin,<wxyz>
where <wxyz> stands for a specific four-digit PIN, e.g.,
%% set,/par/modem/c/pin, 6492
• Command 3.
