Set Radio Link Parameters For Free Channel Scan - Javad Maxor Operator's Manual

C O N F I G U R A T I O N
2
Radio Configuration

Set Radio Link Parameters for Free Channel Scan

2-30 Maxor Operator's Manual
9. From the Output Power control (see Figure 2-22 on page 2-28),
select the level of RF transmit power from 10 mW to 2 W.
10. Click the Serial Interface tab (Figure 2-24) and select a baud rate
for the modem's serial port. The same rate must be used for both the
receiver and the modem.

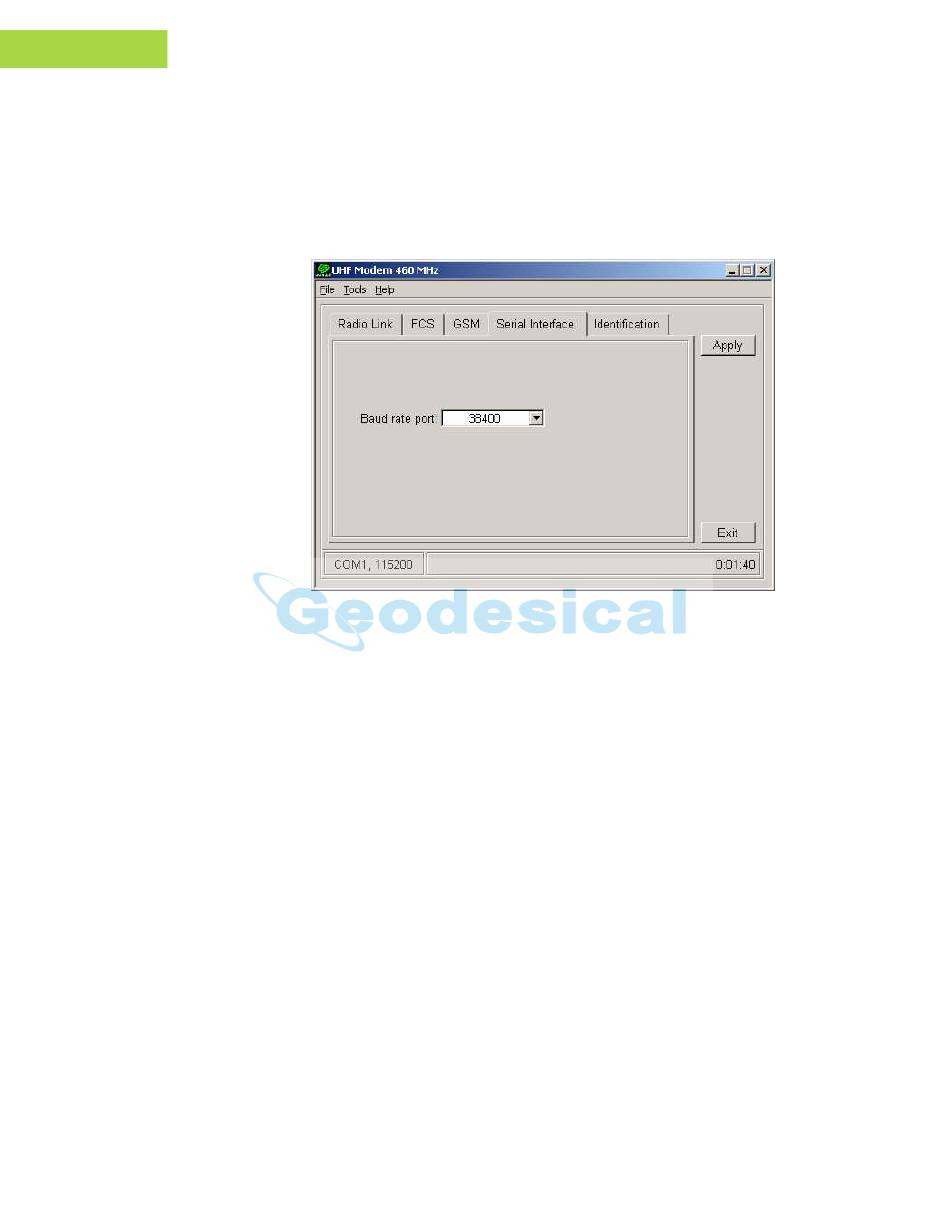

Figure 2-24. Serial Interface Tab
11. Click Apply, then click on File and select Disconnect. If you want
to close the program, click File->Exit.
12. Start PCView and set up the receiver to run as an RTK Base
Station. For how to set up an RTK Base using PCView, refere to
"Setting up an RTK Base Station" on page 3-13 and PCView
Software Manual.
1. Repeat steps 1-9 from "Set Radio Link Parameters for a Dedicated
Channel" on page 2-28.
