Front Panel

www.javad.com
Figure 1-4 shows the Maxor's front panel components.

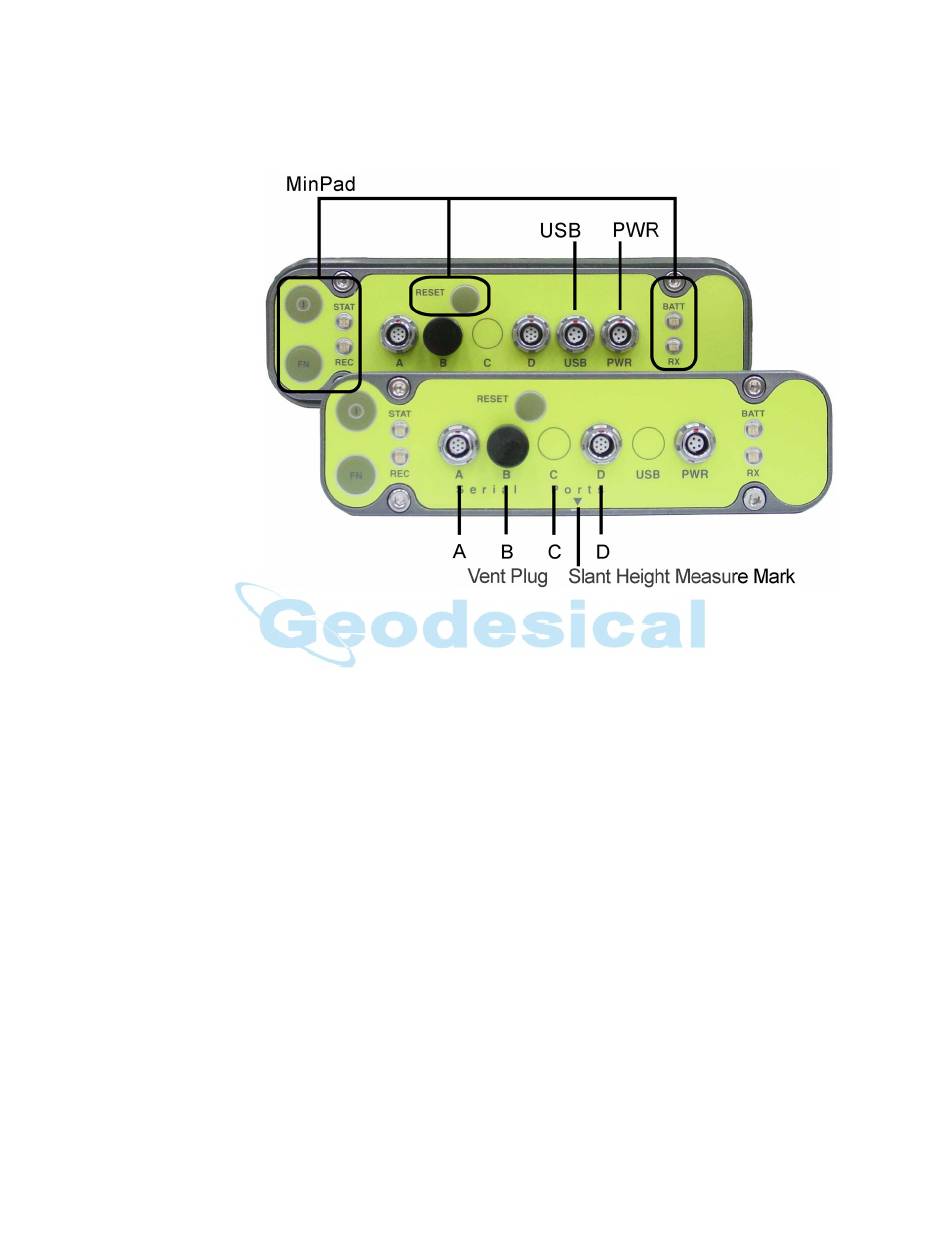

Figure 1-4. Maxor Front Panel (with and without USB)
• MinPad – The simple user interface for the Maxor receiver. The
MinPad consists of three keys and up to four, three-color LEDs. See
"Using MinPad" on page 4-2 for descriptions and usages of the
MinPad components.
• Four serial ports:
–Port A used for communication between the Maxor and a
controller or any other external device.
–Port B used internally to connect the receiver board with the
Bluetooth® module.
–Port C used internally to connect the modem and receiver boards.
–Port D used for communication between the receiver and an
external device.
• Vent plug – Equalizes the pressure between the inside of the
receiver and the outside environment.
• USB – Available on the Maxor GGD with the Euro-112 card and jn
the Maxor GGDT with the Euro-112T card, used for high-speed
data transfer and communication between the receiver and an
external device.
