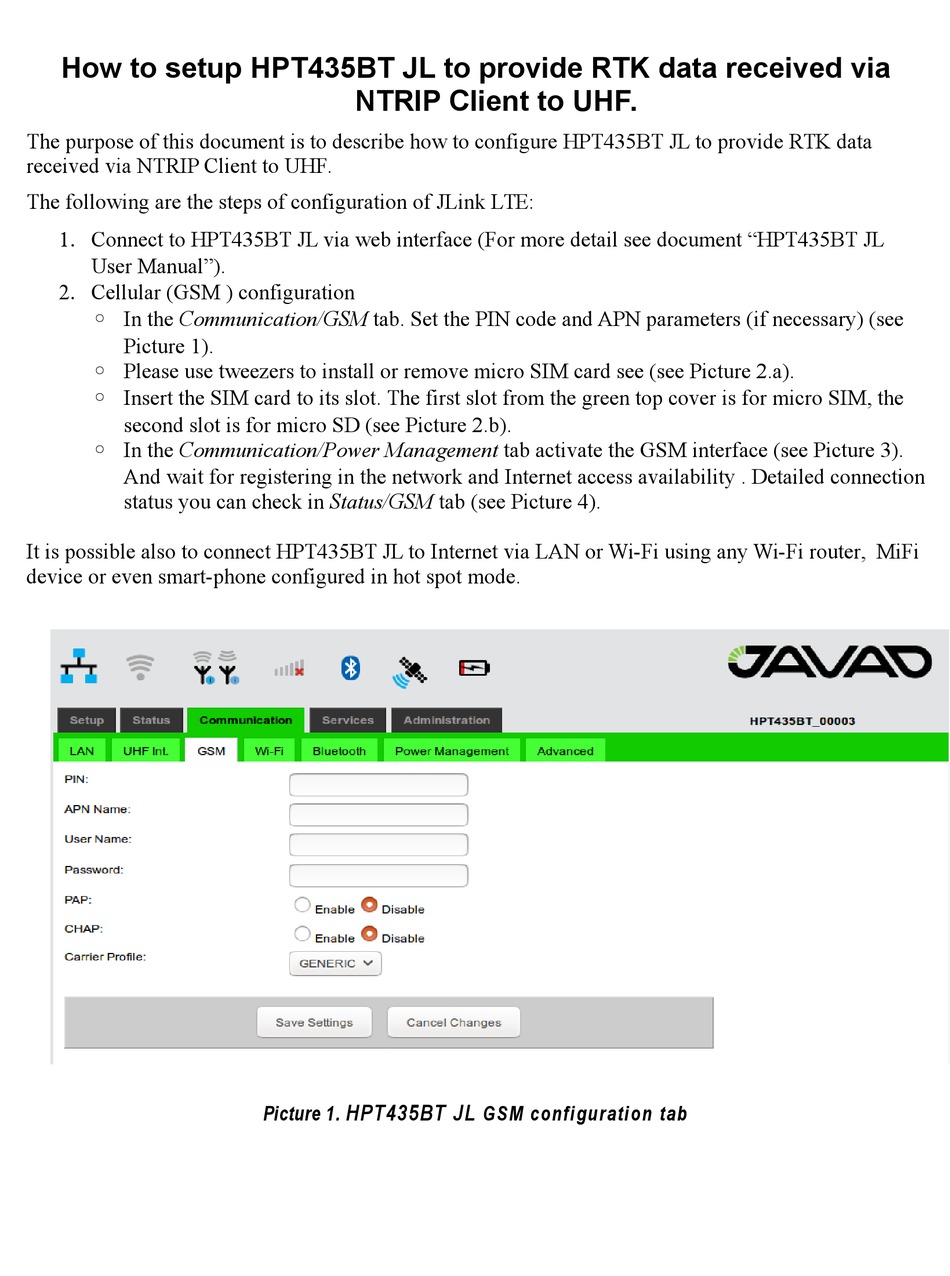

How to setup HPT435BT JL to provide RTK data received via
The purpose of this document is to describe how to configure HPT435BT JL to provide RTK data
received via NTRIP Client to UHF.
The following are the steps of configuration of JLink LTE:
 Connect to HPT435BT JL via web interface (For more detail see document "HPT435BT JL
User Manual").
 Cellular (GSM ) configuration
◦ In the Communication/GSM tab. Set the PIN code and APN parameters (if necessary) (see
Picture 1).
◦ Please use tweezers to install or remove micro SIM card see (see Picture 2.a).
◦ Insert the SIM card to its slot. The first slot from the green top cover is for micro SIM, the
second slot is for micro SD (see Picture 2.b).
◦ In the Communication/Power Management tab activate the GSM interface (see Picture 3).
And wait for registering in the network and Internet access availability . Detailed connection
status you can check in Status/GSM tab (see Picture 4).
It is possible also to connect HPT435BT JL to Internet via LAN or Wi-Fi using any Wi-Fi router, MiFi
device or even smart-phone configured in hot spot mode.
NTRIP Client to UHF.
HPT435BT JL
Picture 1.
GSM configuration tab

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPT435BT JL and is the answer not in the manual?

Questions and answers

Related Manuals for Javad HPT435BT JL

Summary of Contents for Javad HPT435BT JL

  • Page 1 And wait for registering in the network and Internet access availability . Detailed connection status you can check in Status/GSM tab (see Picture 4). It is possible also to connect HPT435BT JL to Internet via LAN or Wi-Fi using any Wi-Fi router, MiFi device or even smart-phone configured in hot spot mode.
  • Page 2 HPT435BT JL Picture 2. micro SIM card installation procedure HPT435BT JL Picture 3. Power Management tab...
  • Page 3 HPT435BT JL Picture 4. GSM Status tab  Setup UHF ◦ In the Communication/UHF Int. tab select Modem parameters (see Picture 5). ◦ In the Communication/Power Management tab activate the UHF interface (see Picture 3).
  • Page 4 HPT435BT JL Picture 5. UHF Int. tab  Setup Data Router In the Setup/Router tab select following parameters “NTRIP Client” as Source and ◦ “UHF“ as Destination. Click “Save Setting” button and wait until finish (see Picture 7).
  • Page 5 HPT435BT JL Picture 7. NTRIP Data Router tab  Setup NTRIP Client ◦ In the Services/NTRIP tab set following parameters: “Server name/address”, “Port”, “User” , “Password” . Click “Save Setting” button and wait until finish. Click '”Update” button and select “Mountpoint” .
  • Page 6 HPT435BT JL Picture 8. NTRIP configuration tab...
  • Page 7 HPT435BT JL Picture 9. Status NTRIP tab...
