Note that the lower left corner shows a "Disconnected" status for the
computer and Bluetooth® module.
For BTCONF version and copyright information, click the About button.
4.
5.
Once the receiver and computer connect through BTCONF, the
Identification tab (Figure 2-32 on page 2-42) displays the following
information:
• Bluetooth® name – the name of the Bluetooth® module, set in the
• Bluetooth® address – the unique electronic address for your Bluetooth®
• Firmware base.
www.javad.com
From the drop-down list in the upper left corner, select the computer serial
port used for communication (Figure 2-31).

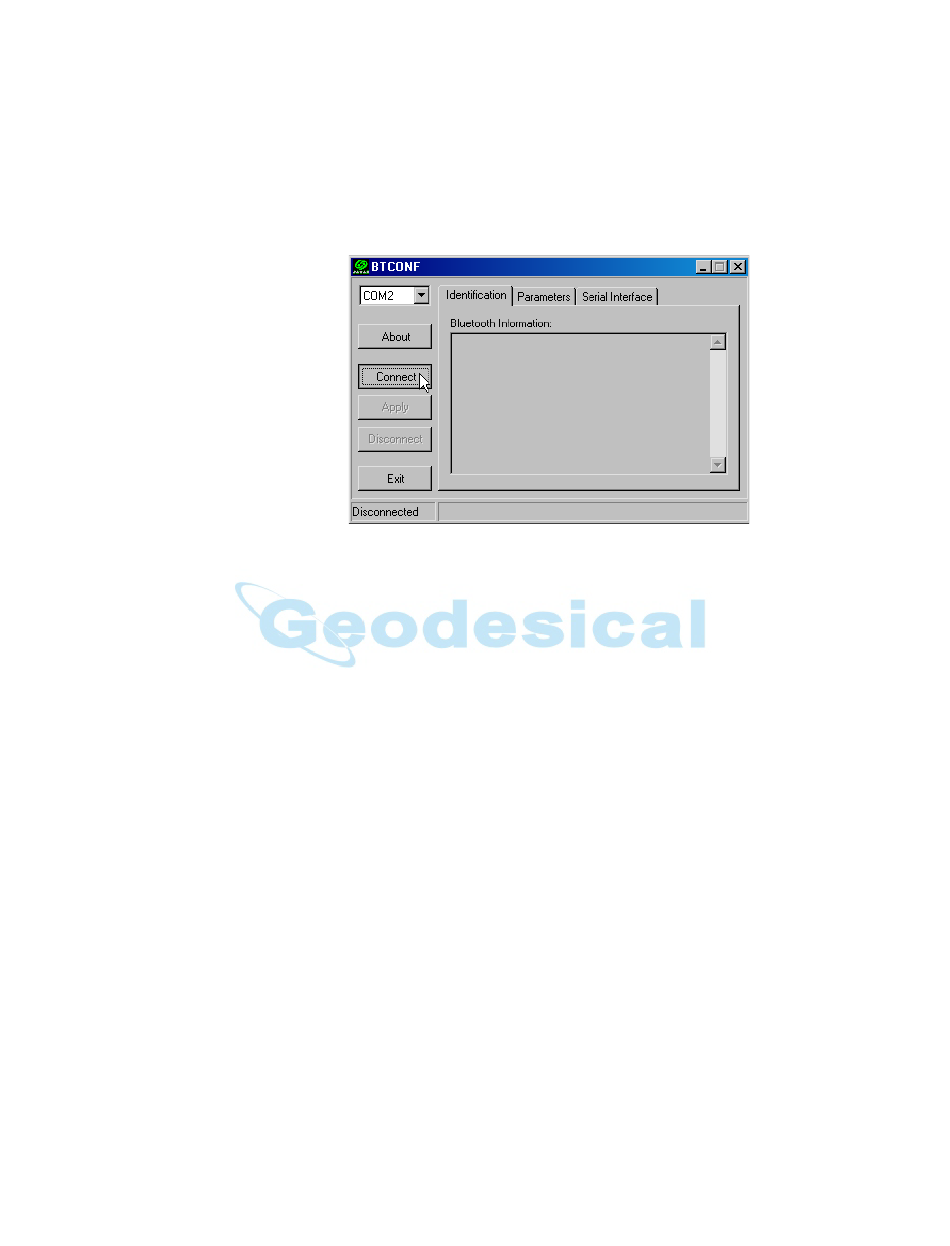

Figure 2-31. Select Communication Port and Click Connect
Click Connect to connect the computer and Bluetooth® module (Figure 2-
31).
Parameters tab.
module.
C O N F I G U R A T I O N
Bluetooth® Module Configuration
