Configuration->Receiver->Minpad - Javad Maxor Operator's Manual

S E T U P A N D M E A S U R I N G
3
Measuring with the Maxor
Dual-frequency receivers have two major benefits. First, dual-frequency
receivers can estimate and remove almost all ionospheric effect from the
code and carrier phase measurements, providing much greater accuracy
than single-frequency receivers over long baselines or during ionospheric
storms. Secondly, dual frequency receivers need far less observation time to
reach the desired accuracy requirement.
After the measuring completes, data the receivers collect can be
downloaded onto a computer and processed using post-processing software
(for example, Ensemble).
The procedure that follows describes the steps the operator should take to
perform a Static Measuring using MinPad.
1. Connect your receiver and computer. See "Connecting the Maxor and a
2. Open PCView, click Configuration->Receiver->MinPad and specify
3-8 Maxor Operator's Manual
Computer" on page 2-9 for this procedure.
the following parameters, then click Apply (Figure 3-5):
• Recording Interval – 15 seconds
• Elevation Mask Angle – 15 degrees
• File Name Prefix – last 3 digits of receiver serial number
• LED blink mode switch – enable to start and stop static data recording
using the FN key

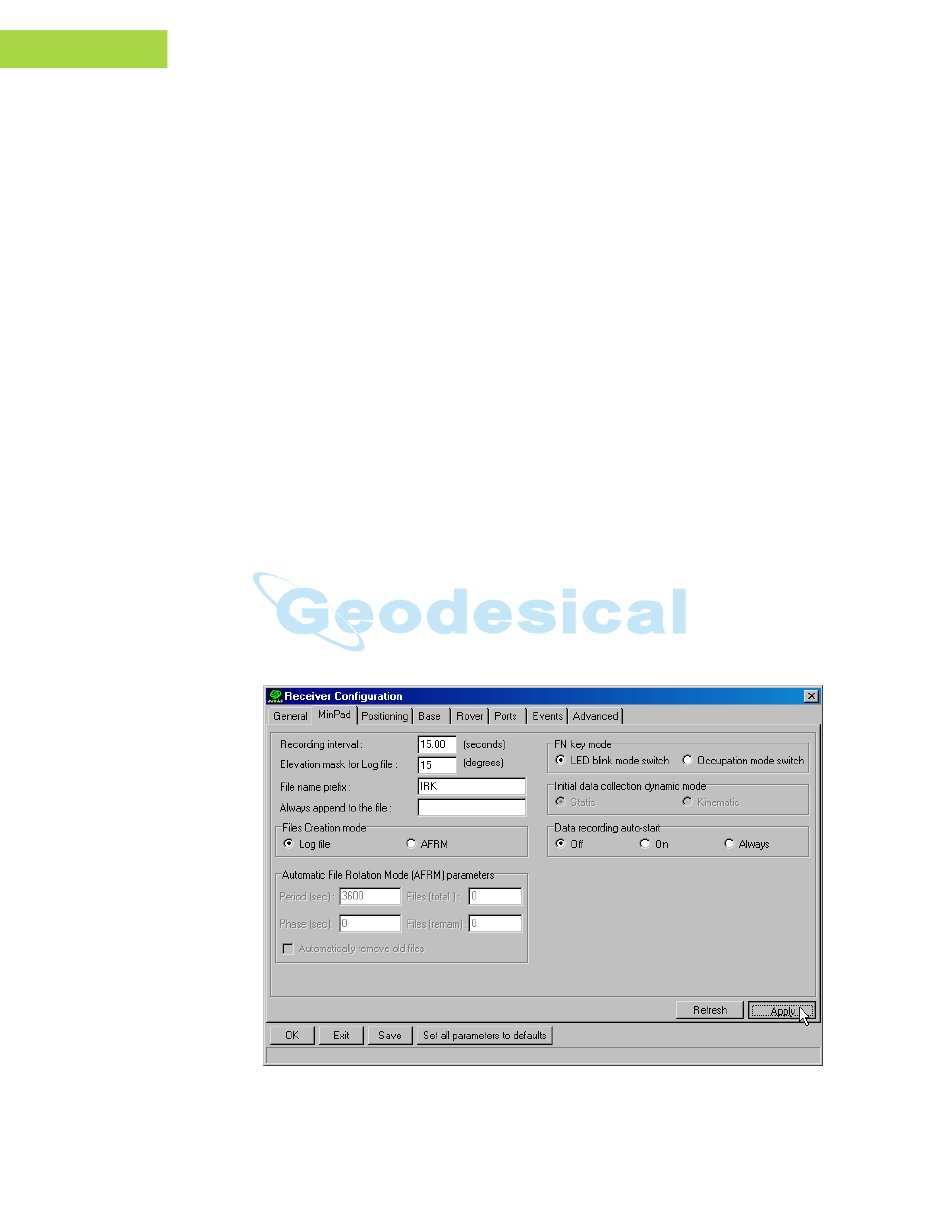

Figure 3-5. Configuration->Receiver->MinPad
www.javad.com
