Receiver Configuration - Positioning - Javad Maxor Operator's Manual

www.javad.com
9. Select the Positioning tab and set the Position Masks, Elevation
mask parameter to 15 (Figure 3-10).

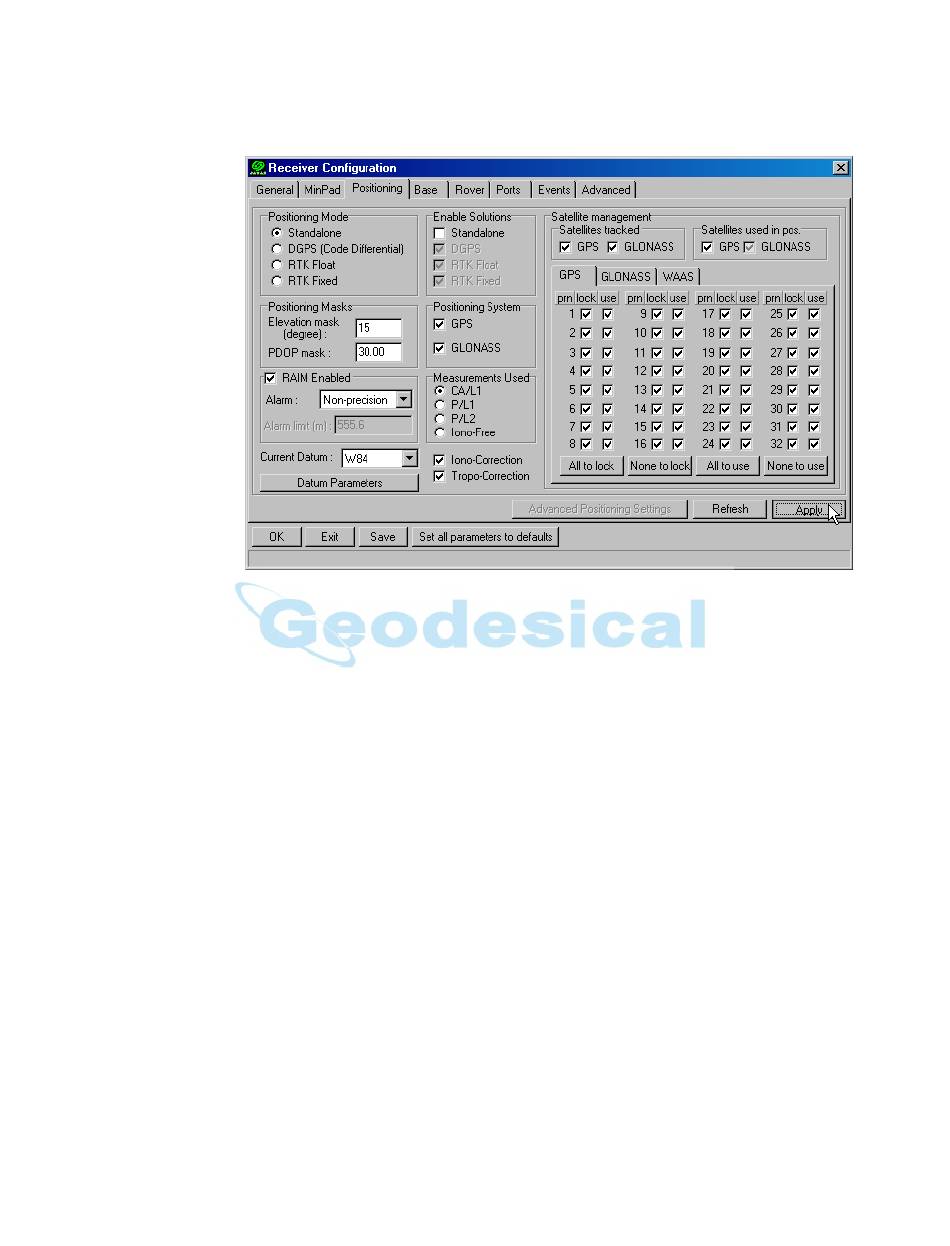

Figure 3-10. Receiver Configuration – Positioning
10. Select the Base tab and set the following parameters (Figure 3-11
on page 3-16):
• GPS/GLO at one time - enable
• Antenna position - enter Lat, Lon, and Alt values. Do one of the
following:
–If known, type in the values.
–Click Get from receiver.
–Enable Averaged and enter the Averaged Span in seconds, then
click Apply. Click Tools->Reset receiver and wait until the
specified interval (span) completes. Examine the Base coordinates
on the Base tab, they should correspond to the coordinates obtained
from the average. Click Refresh if the coordinates are zeros.
S E T U P A N D M E A S U R I N G
Measuring with the Maxor
Maxor Operator's Manual 3-15
