Fcs Tab - Javad Maxor Operator's Manual

Notice: For FCS to operate properly, you must select at least two
frequencies.
Notice: It is recommended to make Time out larger (by 2, 3
seconds) than the period of transmitting differential
corrections.
www.javad.com
2. Click on the FCS tab (Figure 2-25).
3. From the Mode control, select Master.
4. In the Free Scan Frequency List control, you will see the
frequencies that are used in the scan process. Double-click a
frequeny in the list to exclude/include this frequency from/to the
scan process. You may also select/deselect all frequencies at one
time with the Select all and Deselect all controls.
5. In the Time Out edit box, specify a period in seconds with which
the base radio-modem will send a service word to the rover radio-
modem.
6. In the Noise Level field, specify a threshold value for the noise
level. There are three levels available:
• High – sets the noise level to -70 dBm. Recommended in noisy
environments.
• Medium – sets the noise level to -85 dBm. Recommended in most
environments.

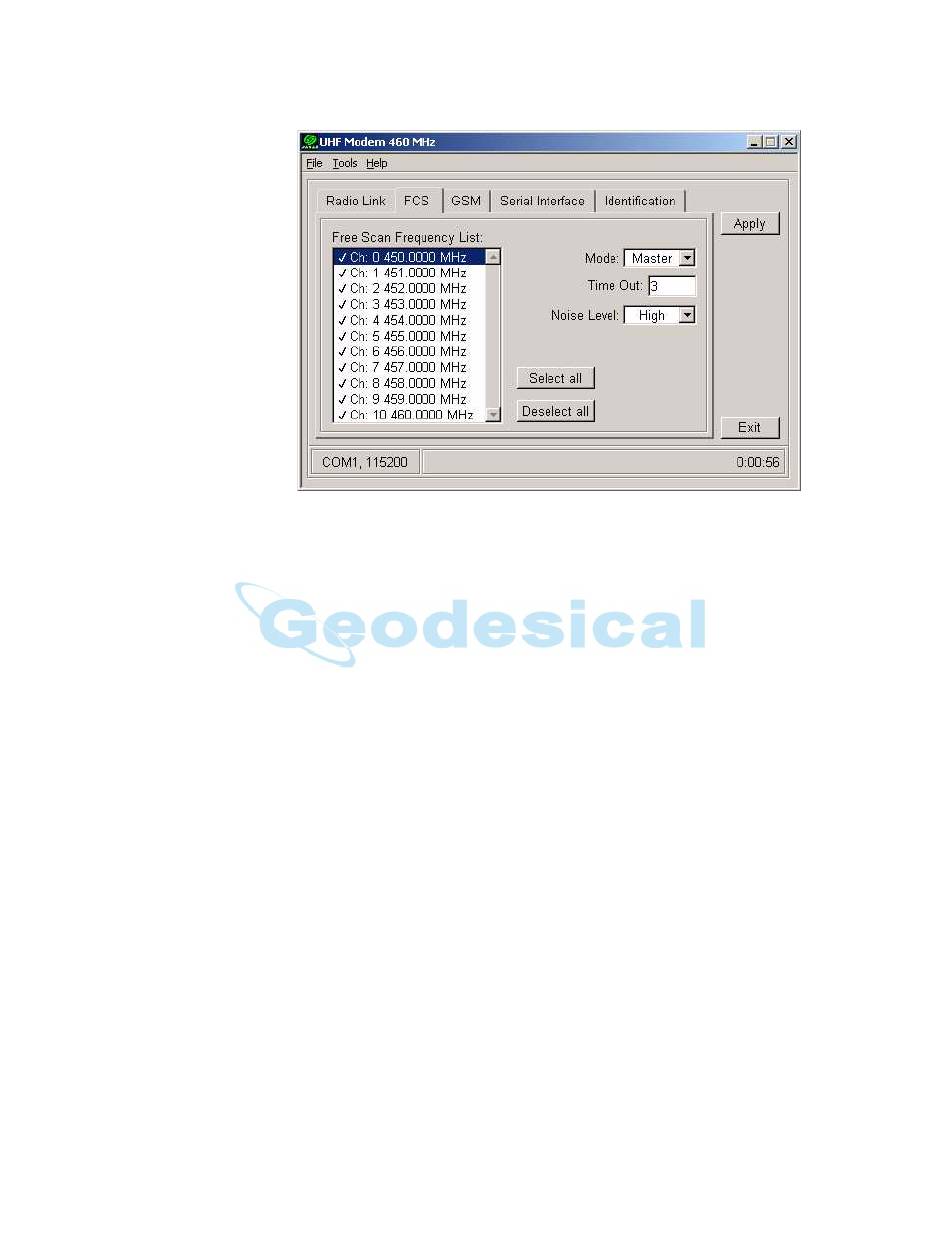

Figure 2-25. FCS Tab
C O N F I G U R A T I O N
Radio Configuration
Maxor Operator's Manual 2-31
