Javad Maxor Operator's Manual page 77

• Encryption – enable to have the Bluetooth® module encrypt wirelessly
• Authentication – enable to require a PIN before two Bluetooth® enabled
Notice If you do not need security settings, leave these
parameters disabled.
9.
10.
www.javad.com
sent data. To read encrypted data, the user must have the same PIN used in
the device that sent the data.
devices (such as, the receiver and a computer) can establish a
communication link. The two devices must use the same PIN.

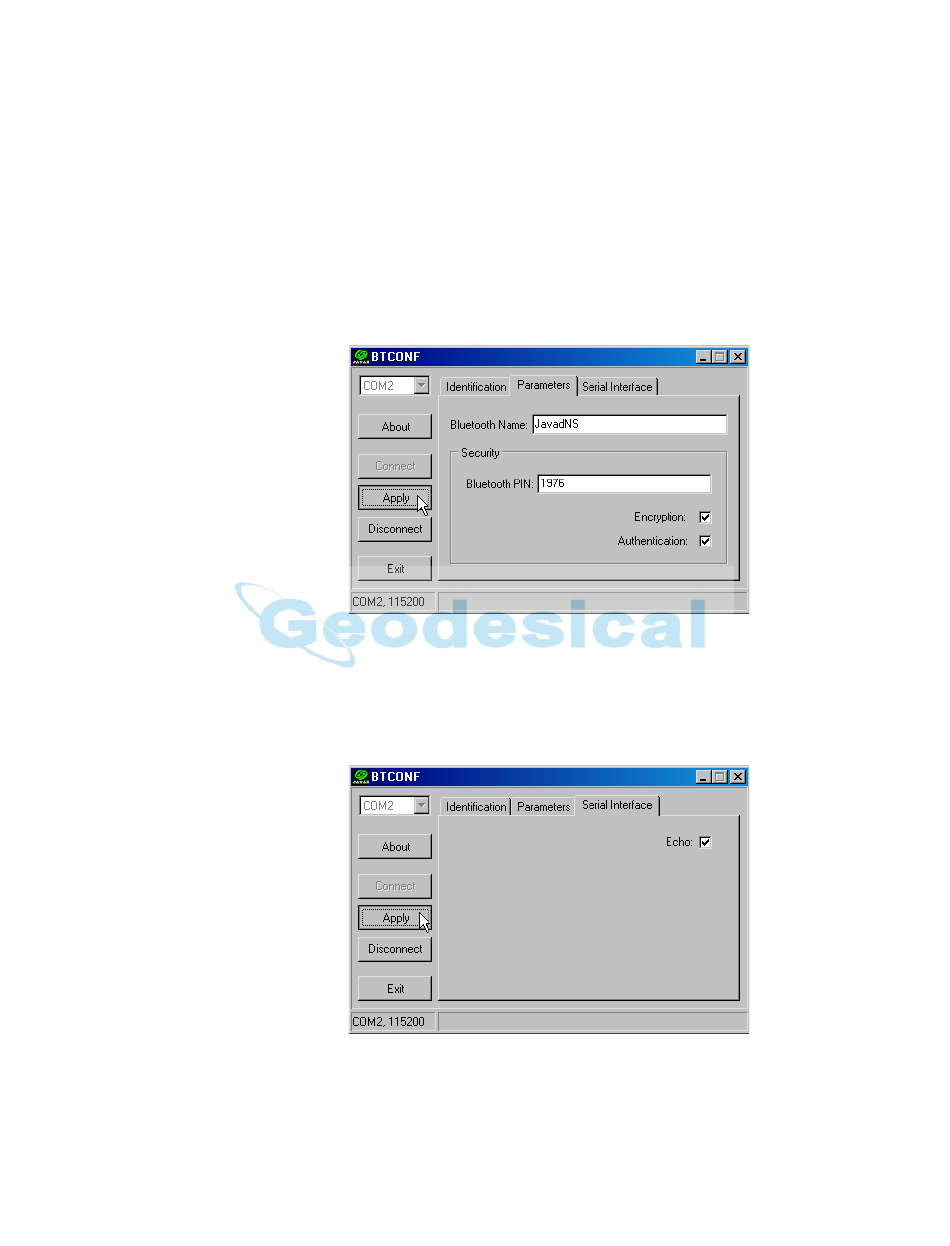

Figure 2-34. BTCONF Security Parameters
Click the Serial Interface tab (Figure 2-35). Enable Echo to display
Bluetooth® module replies and corresponding commands on the computer
terminal. If needed, click Apply.
Figure 2-35. BTCONF Serial Interface Tab
Click Disconnect then Exit to quit BTCONF.
C O N F I G U R A T I O N
Bluetooth® Module Configuration
Maxor Operator's Manual 2-43
